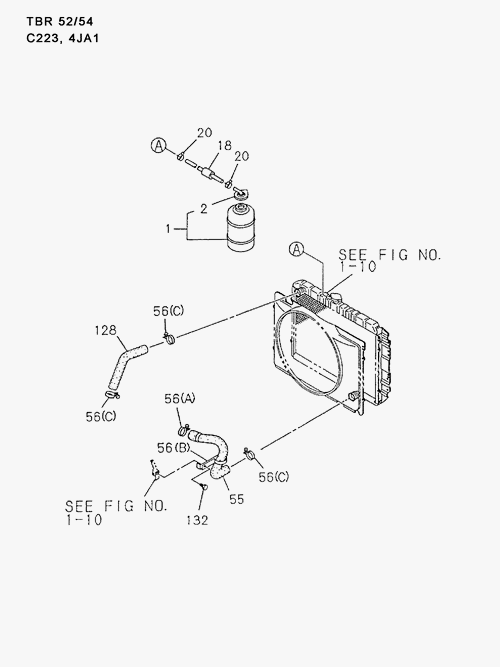

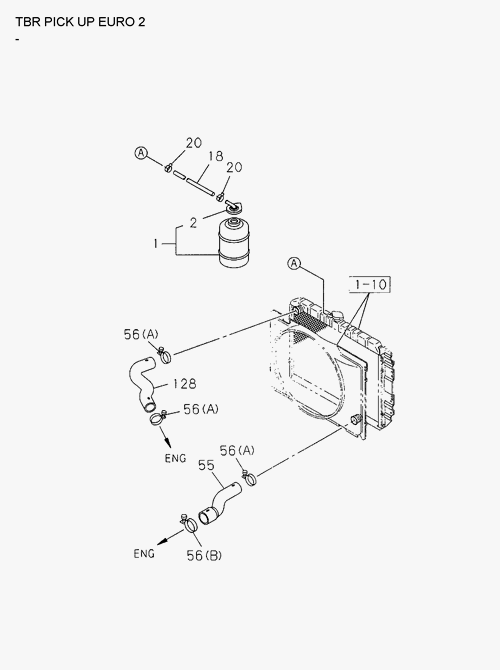

1-11 | RADIATOR HOSE AND SUB TANK
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 55 | I8-97019 352-0 | HOSE; WATER RAD OUTLET | 1 | 9009-9601 | AB | |||
| 132 | I0-28080 812-0 | BOLT; CLIP, WATER HOSE, OUTLET | 1 | 9205-9601 | AB | M8X12 FLANGE | ||
| 20 | I8-98150 358-0 | CLIP; HOSE, RAD | 2 | 9009- | ABC | ID=12 | ||
| 128 | I8-97123 623-0 | HOSE; WATER RAD INL | 1 | 9602- | ABC | |||
| 2 | I6-94332 328-0 | GASKET; CYL HD | 1 | 9602- | AB | (IADG) T=1.60 3-NOTCH | ||
| 56 | I9-09915 512-1 | CLIP; WATER HOSE, RAD | 1 | 9009-9601 | ABC | (A) ID=46 | ||
| 56 | I9-09915 042-1 | CLIP; WATER HOSE, RAD | 3 | 9009- | ABC | (C) DELETION ID=42 | ||
| 132 | I0-28010 812-0 | BOLT; CLIP, WATER HOSE, OUTLET | 1 | 9009-9204 | AB | M8X12 | ||
| 56 | I8-94160 650-0 | CLIP; WATER HOSE, RAD | 1 | 9009-9601 | ABC | (A) DELETION ID=46 | ||
| 20 | I8-94238 610-0 | CLIP; HOSE, RAD | 2 | 9009- | ABC | ID=12 | ||
| 132 | I8-97378 075-0 | BOLT; CLIP, WATER HOSE, OUTLET | 1 | 9009-9204 | AB | M8X12 | ||
| 2 | I8-94370 522-0 | CAP; SURGE TANK | 1 | 9009- | ABC | |||
| 128 | I8-94368 822-0 | HOSE; WATER RAD INL | 1 | 9009-9601 | AB | |||
| 56 | I8-97019 257-1 | CLIP; WATER HOSE, RAD | 1 | 9009-9601 | AB | (B) | ||
| 1 | I8-94370 450-0 | TANK; SURGE RAD | 1 | 9009- | ABC | |||
| 55 | I8-97123 624-0 | HOSE; WATER RAD OUTLET | 1 | 9602- | ABC | |||
| 18 | I8-94386 857-0 | HOSE; RAD TO SURGE TANK | 1 | 9009-9601 | AB | DELETION | ||
| 56 | I9-09915 042-A | CLIP; WATER HOSE, RAD | 3 | 9009- | ABC | (C) ID=42 | ||
| 18 | I0-03157 300-0 | HOSE; RAD TO SURGE TANK | 1 | 9602- | ABC | L=3000 |
