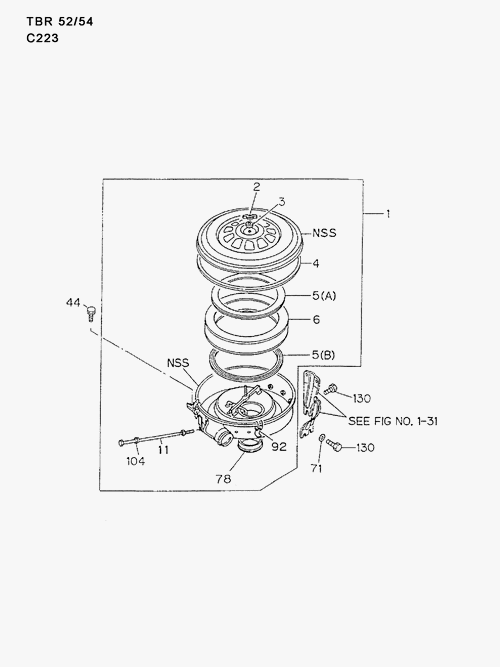

1-30 | AIR CLEANER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I5-14217 011-0 | NUT; WING. ELEMENT | 1 | 9009-9601 | AB | |||
| 5 | I9-14213 125-0 | GASKET; ELEMENT | 1 | 9009-9601 | AB | (A) | ||
| 3 | I9-14239 065-0 | WASHER; SEAL, WING NUT | 1 | 9009-9601 | AB | |||
| 104 | I5-14219 047-0 | GROMMET; CLAMP BOLT, ACL | 1 | 9009-9601 | AB | |||
| 71 | I8-94114 052-0 | WASHER; PL, BRKT | 2 | 9009-9601 | AB | |||
| 79 | I8-94334 913-0 | NUT; WING, ACL | 1 | 9602- | AB | |||
| 224 | I0-91150 208-0 | NUT; BRKT | 2 | 9602- | ABC | M8 FLANGE | ||
| 130 | I0-50140 816-0 | BOLT; BRKT TO ACL | 5 | 9009-9601 | AB | M8X16 W/LK8PL WASHER | ||
| 130 | I0-50040 614-0 | BOLT; BRKT TO ACL | 6 | 9009-9601 | AB | M6X14 W/LK WASHER | ||
| 71 | I9-09160 608-0 | WASHER; PL, BRKT | 3 | 9602- | ABC | ID=8 | ||
| 224 | I0-91180 208-0 | NUT; BRKT | 2 | 9602- | ABC | M8 FLANGE | ||
| 11 | I5-09000 249-0 | BOLT; AIR CLEANER | 1 | 9009-9601 | AB | |||
| 4 | I8-94334 908-0 | GASKET; COVER TO BODY | 1 | 9602- | ABC | |||
| 25 | I8-94334 909-0 | GASKET; CASE, AIR CLEANER | 1 | 9602- | ABC | |||
| 92 | I9-14219 149-0 | CLIP; WIRE, ACL | 4 | 9009-9601 | AB | |||
| 8 | I8-94334 905-0 | COVER ASM; AIR CLEANER | 1 | 9602- | ABC | |||
| 44 | I8-97032 128-0 | BOLT; ACL | 3 | 9602- | ABC | M6X30 | ||
| 94 | I8-94447 157-0 | VALVE; VACUATOR | 1 | 9602- | ABC | |||
| 145 | I0-28080 816-0 | BOLT; BRKT TO FRAME | 3 | 9602- | ABC | M8X16 FLANGE | ||
| 1 | I8-94403 218-2 | CLEANER ASM; AIR | 1 | 9009-9601 | A | |||
| 5 | I9-14213 095-0 | GASKET; ELEMENT | 1 | 9009-9601 | AB | (B) | ||
| 6 | I6-94334 906-0 | FILTER; AIR CLEANER | 1 | 9602- | B | (IADG) | ||
| 6 | I8-94250 720-1 | FILTER; AIR CLEANER | 1 | 9602- | A | |||
| 130 | I0-50640 816-0 | BOLT; BRKT TO ACL | 5 | 9009- | AB | M8X16 W/LK8PL WASHER | ||
| 6 | I8-94334 906-0 | FILTER; AIR CLEANER | 1 | 9602- | B | |||
| 4 | I5-14213 003-0 | GASKET; COVER TO BODY | 1 | 9009-9601 | AB | |||
| 78 | I5-14239 055-0 | GROMMET; AIR CLEANER | 1 | 9009-9601 | AB | |||
| 6 | I6-94250 720-0 | FILTER; AIR CLEANER | 1 | 9602- | A | (IADG) | ||
| 44 | I0-50540 616-0 | BOLT; ACL | 4 | 9009- | AB | M6X16 W/LK WASHER | ||
| 37 | I8-97146 135-0 | RUBBER; MTG CL | 3 | 9602- | ABC | |||
| 1 | I8-94320 726-1 | CLEANER ASM; AIR | 1 | 9602- | BC | |||
| 1 | I8-97143 610-2 | CLEANER ASM; AIR | 1 | 9602- | BC | |||
| 71 | I9-09164 608-0 | WASHER; PL, BRKT | 3 | 9602- | ABC | ID=8 | ||
| 44 | I0-50080 616-0 | BOLT; ACL | 4 | 9009-9601 | AB | M6X16 W/LK WASHER | ||
| 5 | I8-94334 910-0 | GASKET; ELEMENT | 1 | 9602- | ABC |
