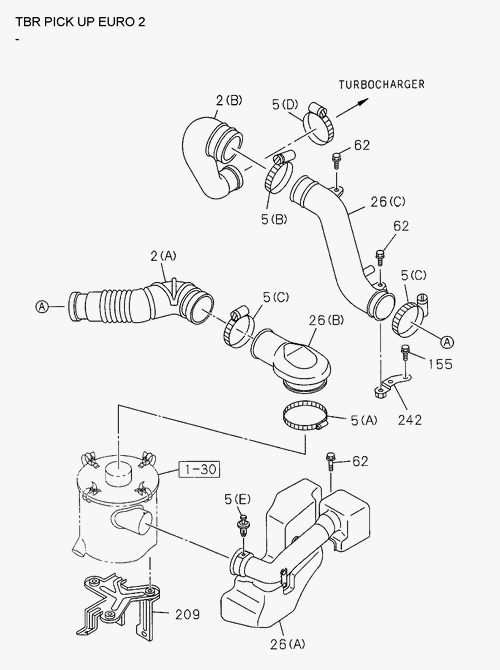

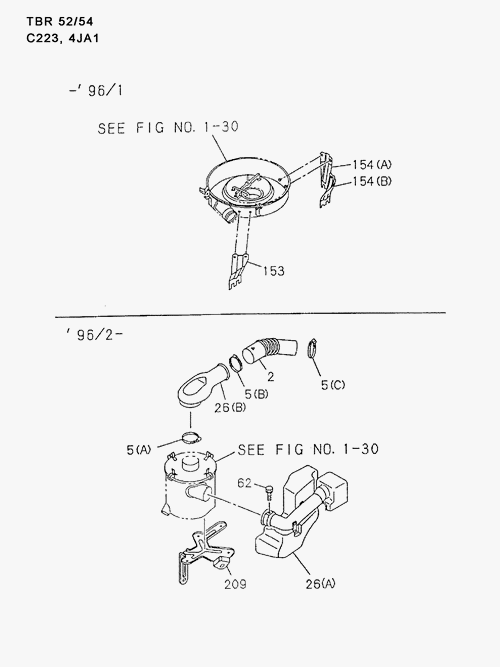

1-31 | AIR DUCT
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 154 | I5-14234 040-1 | BRACKET; ACL, RR | 1 | 9009-9601 | AB | (B) | ||
| 5 | I8-98133 349-0 | CLIP; AIR DUCT | 2 | 0812- | A | (D) ID=55-75 | ||
| 5 | I1-09707 114-0 | CLIP; AIR DUCT | 1 | 9602- | AB | (C) ID=77-95 | ||
| 2 | I8-97191 019-0 | HOSE; AIR CLEANER | 1 | 0612- | C | (B) | ||
| 5 | I8-94298 119-0 | CLIP; AIR DUCT | 1 | 0612- | C | (E) D6X11 POP RIVET | ||
| 62 | I0-28080 816-0 | BOLT; AIR INT DUCT | 1 | 9602- | ABC | M8X16 FLANGE | ||
| 5 | I8-94316 991-0 | CLIP; AIR DUCT | 1 | 0711- | C | (D) ID=50-65 | ||
| 209 | I8-97137 559-0 | BRACKET; ACL | 1 | 9602- | ABC | |||
| 26 | I8-94382 047-2 | DUCT; AIR INT | 1 | 9602- | ABC | (B) | ||
| 62 | I8-94279 201-0 | BOLT; AIR INT DUCT | 1 | 9602- | AB | M6X12 W/LK8PL WASHER | ||
| 5 | I8-98133 348-0 | CLIP; AIR DUCT | 1 | 0811- | A | (D) ID=45-65 | ||
| 5 | I8-98133 357-0 | CLIP; AIR DUCT | 1 | 0811- | A | (D) ID=75-95 | ||
| 154 | I5-14234 017-1 | BRACKET; ACL, RR | 1 | 9009-9601 | AB | (A) | ||
| 153 | I5-14234 039-1 | BRACKET; ACL, FRT | 1 | 9009-9601 | AB | |||
| 155 | I0-28050 816-0 | BOLT; BRKT | 1 | 0612- | C | M8X16 FLANGE | ||
| 26 | I8-94320 728-2 | DUCT; AIR INT | 1 | 9602- | ABC | (A) | ||
| 5 | I8-98133 350-0 | CLIP; AIR DUCT | 1 | 0811- | A | (D) ID=65-85 | ||
| 242 | I8-94387 686-1 | BRACKET; AIR DUCT | 1 | 0612- | C | |||
| 5 | I1-09707 198-0 | CLIP; AIR DUCT | 1 | 0711-0810 | C | (A) ID=77-95 | ||
| 5 | I8-94126 771-0 | CLIP; AIR DUCT | 1 | 9602- | AB | (a) D=58-75 | ||
| 5 | I1-09707 204-0 | CLIP; AIR DUCT | 1 | 0711-0810 | C | (D) ID=50-65 | ||
| 2 | I8-97131 727-0 | HOSE; AIR CLEANER | 1 | 0612- | C | (A) | ||
| 5 | I8-94320 428-0 | CLIP; AIR DUCT | 1 | 9602- | AB | (B) ID=68-75 | ||
| 5 | I1-09707 203-0 | CLIP; AIR DUCT | 2 | 0711-0811 | C | (C) ID=58-76 | ||
| 5 | I1-09707 202-0 | CLIP; AIR DUCT | 1 | 0711-0810 | C | (B) ID=68-85 | ||
| 2 | I8-97123 048-0 | HOSE; AIR CLEANER | 1 | 9602- | AB | |||
| 26 | I8-97128 956-2 | DUCT; AIR INT | 1 | 0612- | C | (C) |
