| 95 |
I8-98022 271-0 |
|
SCREW; FILLER NECK |
3 |
9009- |
|
AB |
M6X16 |
| 59 |
I0-28050 820-0 |
|
NUT; FUEL TANK |
6 |
9009- |
|
AB |
M8X20 FLANGE |
| 439 |
I5-09707 036-1 |
|
CLIP; BAND, FUEL TANK UNIT |
1 |
9009- |
|
ABC |
L=100 |
| 6 |
I9-03910 510-0 |
|
SCREW; TANK UNIT TO SUB FUEL TANK |
5 |
9602- |
|
ABC |
M5X10 W/LK WASHER |
| 93 |
I0-01259 300-0 |
|
HOSE; BREATHER, FUEL TANK |
1 |
9107- |
|
AB |
(TB*0S*) (C) ID=9.3 L=460 |
| 25 |
I8-97026 336-1 |
|
CAP; FILLER, FUEL TANK |
1 |
9009- |
|
ABC |
|
| 312 |
I0-50541 040-0 |
|
BOLT; FUEL FILTER CLAMP |
2 |
9205- |
|
A |
M10X32 W/LK WASHER |
| 81 |
I8-97017 382-A |
|
HOSE; FUEL FILLER |
1 |
9009- |
|
AB |
WAGON(TB*0V*) (A) |
| 449 |
I8-97017 383-0 |
|
PIPE; FILLER NECK |
1 |
9009- |
|
AB |
WAGON(TB*0V*) DELETION |
| 467 |
I8-97091 076-0 |
|
BOLT |
2 |
9309- |
|
AB |
WAGON(TB*0V*) M8X25 |
| 83 |
I8-97081 015-1 |
|
NECK; FUEL FILLER |
1 |
9207- |
|
ABC |
|
| 319 |
I8-94238 570-0 |
|
CLIP; RUBBER HOSE |
2 |
9009- |
|
AB |
ID=11 |
| 83 |
I8-97081 015-1 |
|
NECK; FUEL FILLER |
1 |
9009- |
|
ABC |
|
| 78 |
I8-98008 098-0 |
|
CLIP; BREATHER HOSE |
2 |
9009- |
|
ABC |
ID=16 |

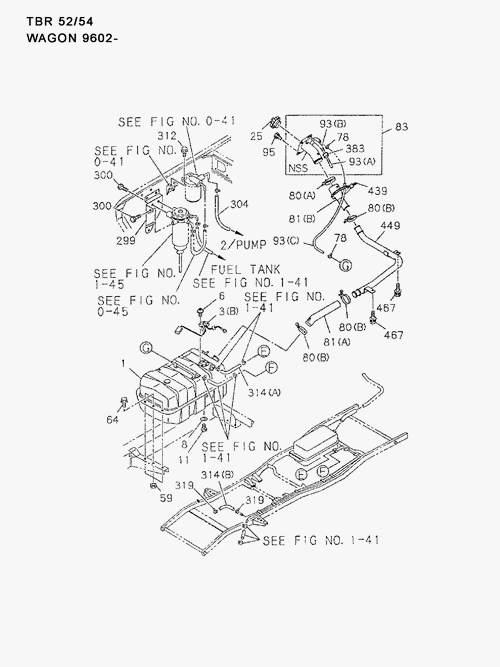

| 1 |
I3-40003 067-0 |
|
TANK; FUEL |
1 |
9602- |
|
B |
WAGON |
| 6 |
I8-97024 319-0 |
|
SCREW; TANK UNIT TO SUB FUEL TANK |
5 |
9602- |
|
AB |
M5X10 W/LK WASHER |
| 86 |
I8-94128 826-0 |
|
HOSE; EVAP |
1 |
0612- |
|
C |
|
| 88 |
I8-94155 296-0 |
|
CLIP; FUEL HOSE |
1 |
9009-9601 |
|
A |
|
| 299 |
I8-97012 362-0 |
|
BRACKET; FUEL FILTER |
1 |
9009- |
|
ABC |
|
| 11 |
I9-09862 156-0 |
|
PLUG; DRAIN FUEL TANK |
1 |
9602- |
|
BC |
M14X14 |

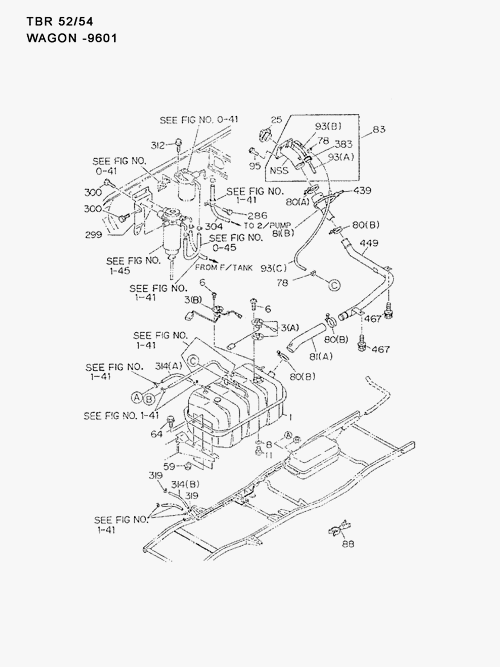

| 1 |
I2-00003 032-0 |
|
TANK; FUEL |
1 |
9009-9601 |
|
A |
WAGON(TB*0V*) DELETION |
| 312 |
I0-28681 035-0 |
|
BOLT; FUEL FILTER CLAMP |
2 |
9602- |
|
AB |
M10X35 |
| 300 |
I0-50040 816-0 |
|
BOLT; BRKT TO BODY |
3 |
9602- |
|
BC |
M8X16 W/LK WASHER |
| 80 |
I9-09915 265-A |
|
CLIP; FILLER HOSE |
2 |
9009- |
|
ABC |
PICK UP(TB*0S*) (A) |
| 1 |
I8-97142 415-0 |
|
TANK; FUEL |
1 |
9602- |
|
B |
WAGON(TB*0V*) DELETION |
| 312 |
I0-50041 040-0 |
|
BOLT; FUEL FILTER CLAMP |
2 |
9205-9409 |
|
A |
M10X32 W/LK WASHER |
| 1 |
I8-97562 635-A |
|
TANK; FUEL |
1 |
0612- |
|
C |
PICK UP |

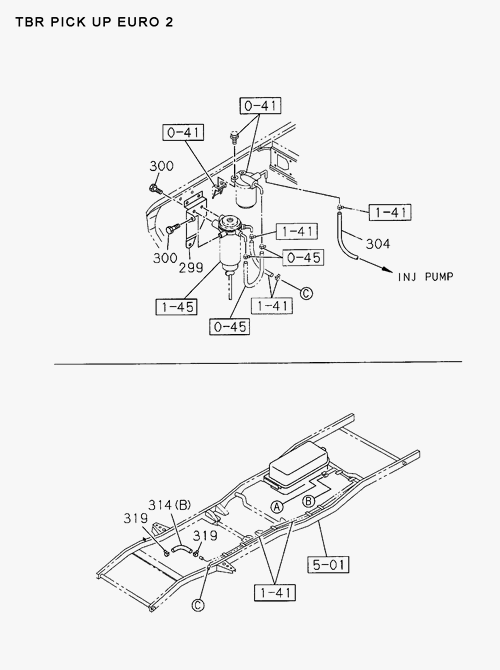

| 304 |
I0-01258 300-0 |
|
HOSE; RUBBER, FUEL FILTER TO INJ PUMP |
1 |
9308- |
|
ABC |
L=700 SERVICED BY L=3000 |
| 78 |
I8-98008 098-0 |
|
CLIP; BREATHER HOSE |
2 |
9009- |
|
ABC |
ID=16 |
| 300 |
I0-50040 812-0 |
|
BOLT; BRKT TO BODY |
3 |
9009-9010 |
|
A |
M8X12 W/LK WASHER |
| 312 |
I0-28051 030-0 |
|
BOLT; FUEL FILTER CLAMP |
2 |
9502- |
|
A |
M10X30 W/LK WASHER |
| 59 |
I0-28080 820-0 |
|
NUT; FUEL TANK |
6 |
9009- |
|
AB |
M8X20 FLANGE |
| 81 |
I8-97022 612-0 |
|
HOSE; FUEL FILLER |
1 |
9009- |
|
ABC |
PICK UP |
| 400 |
I8-94166 071-0 |
|
CLIP; HOSE, EVAP |
2 |
0612- |
|
C |
ID=8.5 |
| 78 |
I8-97173 222-0 |
|
CLIP; BREATHER HOSE |
2 |
9009- |
|
ABC |
ID=16 |
| 59 |
I0-91180 208-0 |
|
NUT; FUEL TANK |
6 |
0612- |
|
C |
M8 |
| 300 |
I0-50540 816-0 |
|
BOLT; BRKT TO BODY |
3 |
9602- |
|
BC |
M8X16 W/LK WASHER |
| 383 |
I8-97178 373-0 |
|
VALVE; 2 WAY |
1 |
9009-9206 |
|
ABC |
|
| 319 |
I8-97173 220-0 |
|
CLIP; RUBBER HOSE |
2 |
0612- |
|
C |
ID=13 |

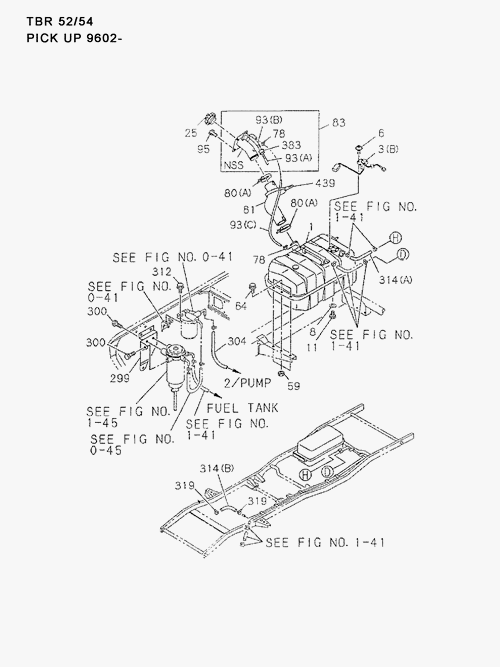

| 1 |
I8-97142 414-0 |
|
TANK; FUEL |
1 |
9602- |
|
B |
PICK UP(TB*0S*) |
| 64 |
I0-28650 820-0 |
|
BOLT; FUEL TANK |
6 |
0612- |
|
C |
M8X20 FLANGE |
| 286 |
I0-50140 614-0 |
|
BOLT; CLIP |
1 |
9205-9601 |
|
A |
M6X14 W/LKBPL WASHER |
| 83 |
I8-97081 015-0 |
|
NECK; FUEL FILLER |
1 |
9207- |
|
ABC |
|

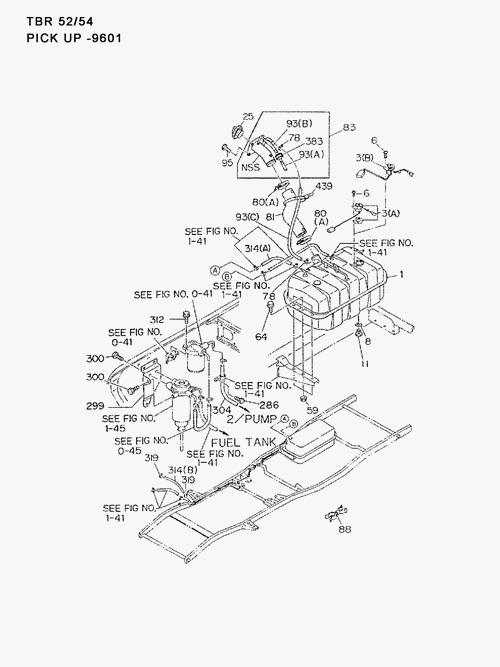

| 1 |
I2-00003 032-0 |
|
TANK; FUEL |
1 |
9009-9601 |
|
A |
PICK UP(TB*0S*) DELETION |
| 312 |
I0-28081 030-0 |
|
BOLT; FUEL FILTER CLAMP |
2 |
9502-9601 |
|
A |
M10X30 W/LK WASHER |
| 64 |
I0-91180 208-0 |
|
BOLT; FUEL TANK |
6 |
9009- |
|
AB |
M8 FLANGE |
| 81 |
I8-97017 384-0 |
|
HOSE; FUEL FILLER |
1 |
9009- |
|
AB |
WAGON(TB*0V*) (B) DELETION |
| 314 |
I0-01254 300-0 |
|
HOSE; RUBBER, FUEL RETURN |
1 |
9308- |
|
ABC |
|
| 93 |
I8-94128 826-0 |
|
HOSE; BREATHER, FUEL TANK |
1 |
9009- |
|
AB |
L=300 |
| 78 |
I8-94238 568-0 |
|
CLIP; BREATHER HOSE |
2 |
9009- |
|
ABC |
ID=16 |
| 467 |
I8-97017 390-0 |
|
BOLT |
2 |
9009-9308 |
|
A |
WAGON(TB*0V*) M8X25 |
| 300 |
I0-50540 812-0 |
|
BOLT; BRKT TO BODY |
3 |
9009- |
|
A |
M8X12 W/LK WASHER |
| 95 |
I8-94381 646-0 |
|
SCREW; FILLER NECK |
3 |
9009- |
|
AB |
M6X16 |
| 3 |
I8-97021 139-0 |
|
UNIT; FUEL TANK, SUB |
1 |
9009-9204 |
|
ABC |
(A) & B |
| 8 |
I9-09920 624-0 |
|
GASKET; DRAIN PLUG, FUEL TANK |
1 |
9009-9601 |
|
ABC |
|
| 83 |
I8-97017 385-0 |
|
NECK; FUEL FILLER |
1 |
9009-9206 |
|
ABC |
|
