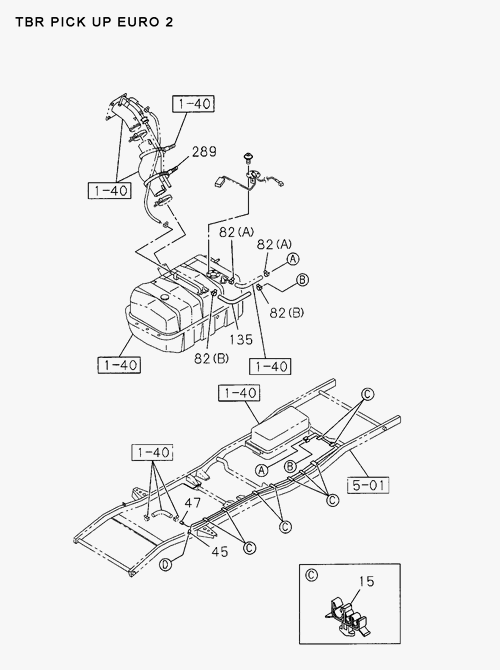

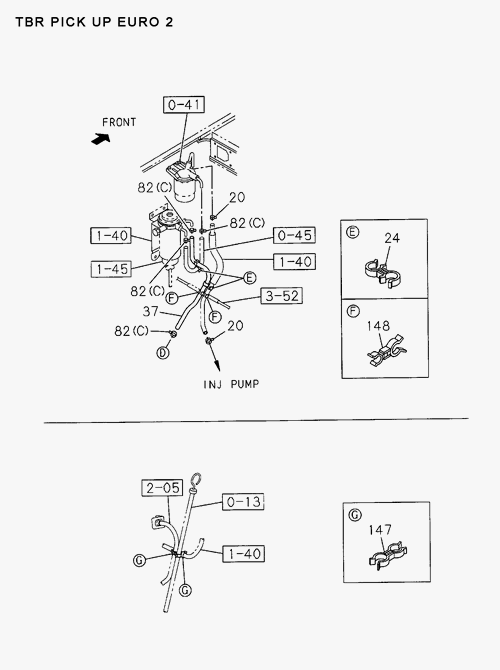

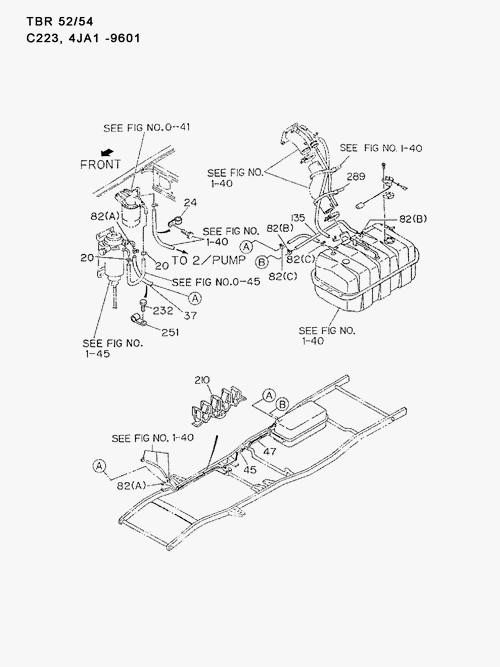

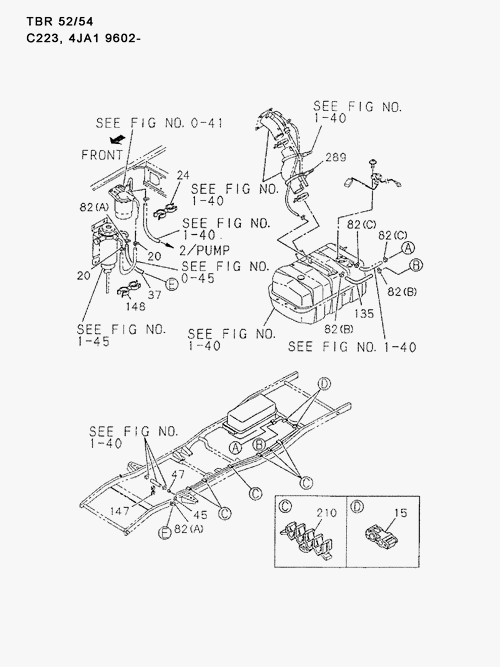

1-41 | FUEL PIPING; CHASSIS
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 251 | I9-09525 532-0 | CLIP; RUBBER HOSE | 2 | 9009-9601 | A | ID=16 | ||
| 47 | I8-97142 299-0 | PIPE; FUEL, RETURN | 1 | 9602- | B | LONG(TB*0*F) DELETION | ||
| 47 | I8-97562 643-0 | PIPE; FUEL, RETURN | 1 | 0612- | C | |||
| 135 | I0-01158 300-0 | HOSE; FUEL TANK TO FUEL PIPE | 1 | 9012-9203 | A | L=400 SERVICED BY L=3000 | ||
| 147 | I8-97230 081-0 | CLIP; FUEL PIPE TO HOSE | 2 | 0612- | C | ID=13.2 & 11.5 | ||
| 47 | I8-94366 551-0 | PIPE; FUEL, RETURN | 1 | 9009-9601 | A | LONG(TB*0*F) DELETION | ||
| 82 | I8-98052 395-0 | CLIP; FUEL HOSE | 2 | 0612- | C | (B) ID=17.2 | ||
| 47 | I8-94366 550-0 | PIPE; FUEL, RETURN | 1 | 9009-9601 | A | SHORT(TB*0*C) DELETION | ||
| 82 | I8-97173 220-0 | CLIP; FUEL HOSE | 2 | 0612- | C | (A) ID=13 | ||
| 45 | I8-94366 548-0 | PIPE; FUEL, DELIVERY | 1 | 9009-9601 | A | SHORT(TB*0*C) DELETION | ||
| 15 | I8-94222 876-0 | CLIP; FUEL PIPE | 2 | 9602- | B | BLACK | ||
| 37 | I0-01258 300-0 | HOSE; RUBBER DELIVERY | 1 | 9602- | ABC | |||
| 289 | I5-09707 030-0 | CLIP; BAND, HOSE | 2 | 9009- | A C | L=250 | ||
| 82 | I8-97240 196-0 | CLIP; FUEL HOSE | 4 | 0612- | C | (C) ID=19 | ||
| 147 | I8-94155 296-0 | CLIP; FUEL PIPE TO HOSE | 1 | 9602- | B | ID=10 & 12 | ||
| 20 | I1-09704 102-0 | CLIP; HOSE, FUEL TANK | 2 | 9009- | AB | ID=14 | ||
| 20 | I8-97240 176-0 | CLIP; HOSE, FUEL TANK | 2 | 0612- | C | ID=19 | ||
| 210 | I8-97146 096-0 | CLIP; FEED PIPE | 15 | 9009-9512 | AB | (TB*0*C) BLACK L=70.5 B=20.5 | ||
| 82 | I1-09704 102-0 | CLIP; FUEL HOSE | 4 | 9009- | AB | (B) ID=14 | ||
| 82 | I8-94238 570-0 | CLIP; FUEL HOSE | 2 | 9009- | AB | (C) ID=11 | ||
| 289 | I5-09707 030-1 | CLIP; BAND, HOSE | 2 | 9009- | A C | L=250 | ||
| 251 | I0-95235 532-0 | CLIP; RUBBER HOSE | 2 | 9009- | A | ID=16 | ||
| 289 | I5-09707 031-1 | CLIP; BAND, HOSE | 3 | 9602- | B | L=140 | ||
| 45 | I8-97142 296-0 | PIPE; FUEL, DELIVERY | 1 | 9602- | B | SHORT(TB*0*C) DELETION | ||
| 47 | I8-97142 298-0 | PIPE; FUEL, RETURN | 1 | 9602- | B | SHORT(TB*0*C) DELETION | ||
| 148 | I8-94472 577-0 | CLIP; HOSE, FUEL | 2 | 0612- | C | ID=20.2 & 6 | ||
| 135 | I0-01258 300-0 | HOSE; FUEL TANK TO FUEL PIPE | 1 | 9009-9011 | A | L=500 SERVICED BY L=3000 | ||
| 45 | I8-97142 297-0 | PIPE; FUEL, DELIVERY | 1 | 9602- | B | LONG(TB*0*F) DELETION | ||
| 15 | I8-97245 523-0 | CLIP; FUEL PIPE | 9 | 0612- | C | |||
| 24 | I8-94475 649-0 | CLIP; FUEL HOSE | 2 | 9602- | B | |||
| 45 | I8-97562 642-0 | PIPE; FUEL, DELIVERY | 1 | 0612- | C | |||
| 24 | I9-09527 015-0 | CLIP; FUEL HOSE | 1 | 9009-9601 | A | ID=16 | ||
| 24 | I8-94323 068-0 | CLIP; FUEL HOSE | 2 | 0612- | C | |||
| 148 | I8-94312 791-0 | CLIP; HOSE, FUEL | 1 | 9602- | B | |||
| 135 | I0-01262 300-0 | HOSE; FUEL TANK TO FUEL PIPE | 1 | 0612- | C | L=340 | ||
| 82 | I1-09704 102-0 | CLIP; FUEL HOSE | 2 | 9009- | AB | (A) ID=14 | ||
| 232 | I0-20800 612-0 | BOLT; CLIP, PIPE | 2 | 9205-9601 | A | M6X12 | ||
| 45 | I8-94366 549-0 | PIPE; FUEL, DELIVERY | 1 | 9009-9601 | A | LONG(TB*0*F) | ||
| 82 | I8-94238 572-0 | CLIP; FUEL HOSE | 2 | 9009- | AB | (A) ID=14 |
