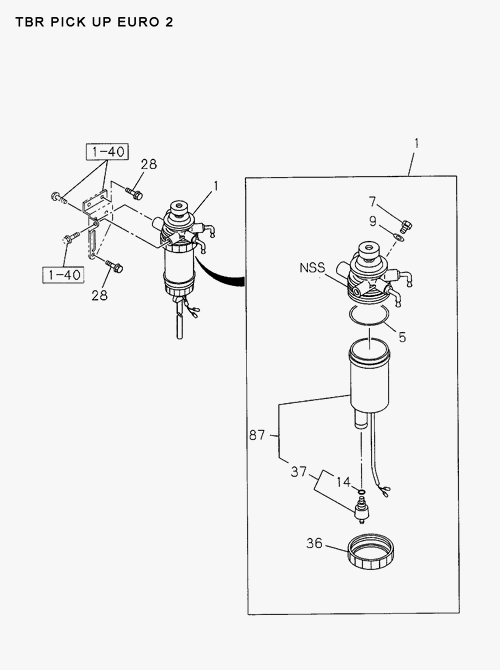

1-45 | WATER SEDIMENTER; FUEL
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I6-98019 898-1 | SEDIMENTER; FUEL | 1 | 0612- | C | (IADG) | ||
| 14 | I8-94167 886-0 | GASKET; SENSOR TO CENTER BOLT | 1 | 9009- | ABC | |||
| 1 | I5-13200 220-8 | SEDIMENTER; FUEL | 1 | 9009- | AB | |||
| 14 | I8-94447 156-0 | GASKET; SENSOR TO CENTER BOLT | 1 | 9009- | ABC | |||
| 5 | I5-09623 075-0 | GASKET; UPR COVER, SEDIMENTER | 1 | 9009- | ABC | |||
| 7 | I8-94132 674-0 | PLUG; DRAIN SEDIMENTER | 1 | 9009- | ABC | |||
| 36 | I5-13234 010-0 | RING; BODY TO CASE | 1 | 9009- | ABC | |||
| 41 | I9-09563 334-0 | GASKET; SENSOR TO CASE | 1 | 9009- | AB | |||
| 1 | I6-13200 220-2 | SEDIMENTER; FUEL | 1 | 9009- | AB | (IADG) | ||
| 1 | I5-13200 220-9 | SEDIMENTER; FUEL | 1 | 9009- | AB | |||
| 4 | I5-13212 071-2 | COVER; UPR, SEDIMENTER ASM | 1 | 9009- | AB | |||
| 28 | I9-01900 612-0 | BOLT; SEDIMENTER | 3 | 9009-9204 | A | M6X12 W/LK WASHER | ||
| 1 | I8-98019 898-0 | SEDIMENTER; FUEL | 1 | 0612- | C | |||
| 87 | I8-97316 630-1 | CASE; FUEL SEDIMENTER | 1 | 0612- | C | |||
| 9 | I8-94132 675-0 | GASKET; DRAIN PLUG 8 CONNECTOR | 1 | 9009- | ABC | |||
| 28 | I0-50040 512-0 | BOLT; SEDIMENTER | 3 | 9205- | ABC | M6X12 W/LK WASHER | ||
| 37 | I5-13220 002-0 | PLUG; SENSOR | 1 | 9009- | AB | |||
| 37 | I8-94453 746-0 | PLUG; SENSOR | 1 | 0612- | C |
