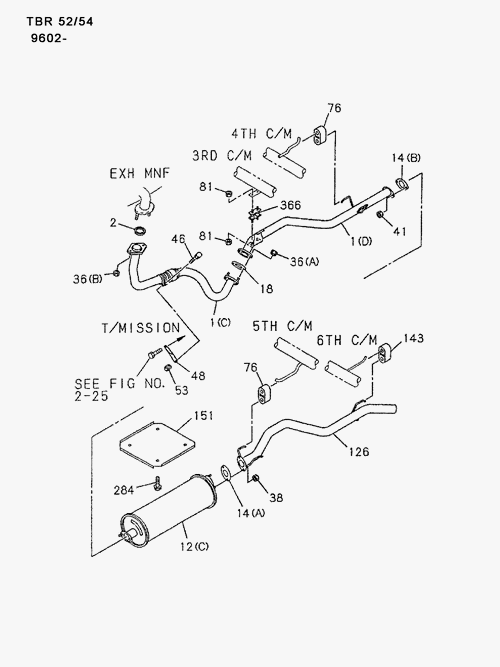

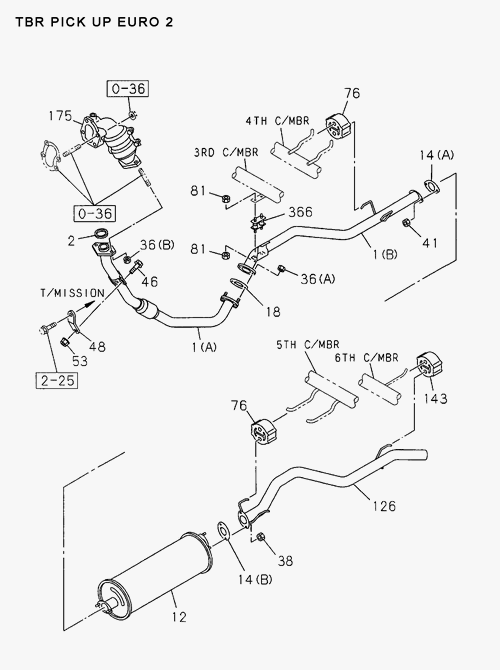

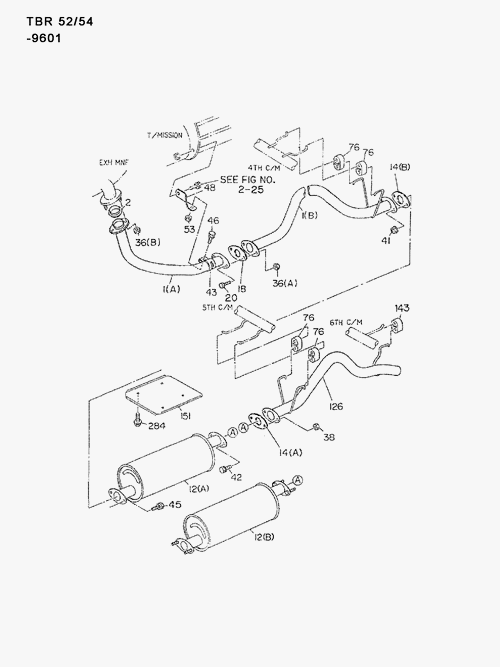

1-50 | EXHAUST PIPE AND SILENCER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 38 | I7-05110 010-A | NUT; SILENCER | 2 | 9009- | ABCD | M10 FLANGE | ||
| 1 | I8-97123 641-0 | PIPE; EXH | 1 | 9602- | ABCD | (C) | ||
| 18 | I8-94328 353-0 | GASKET; EXH PIPE TO PIPE | 1 | 9009-9402 | ABCD | ID=53 | ||
| 366 | I8-97038 816-2 | RUBBER; SUPPORT, EXH PIPE | 1 | 9602- | ABCDE | |||
| 41 | I7-05110 010-A | NUT; EXHPIPE TO EXH SILENCER | 2 | 9009- | ABCD | M10 FLANGE | ||
| 14 | I8-94328 353-0 | GASKET; SILENCER TO EXH PIPE | 2 | 9009-9402 | ABCD | (A), (B) ID=53 | ||
| 12 | I8-97022 461-1 | SILENCER ASM; EXH | 1 | 9602- | ABCD | (C) | ||
| 41 | I7-05110 010-A | NUT; EXHPIPE TO EXH SILENCER | 2 | 9009- | ABCDE | M10 FLANGE | ||
| 2 | I8-97381 456-0 | GASKET; PIPE TO MANIF | 1 | 9602- | ABCDE | |||
| 81 | I0-91150 108-0 | NUT; BRKT | 4 | 9602- | ABCD | M8 FLANGE | ||
| 12 | I2-94368 325-0 | SILENCER ASM; EXH | 1 | 9009-9408 | ABCD | (A) DELETION | ||
| 151 | I8-97028 222-0 | PROTECTOR; HEAT, EXH PIPE | 1 | 9009- | C | DELETION | ||
| 48 | I8-98019 804-0 | BRACKET; EXH PIPE TO MTG | 1 | 0612- | E | |||
| 20 | I0-50641 030-0 | BOLT; FLANGE, EXH PIPE | 2 | 9009- | ABCD | M10X30 W/LK8PL WASHER | ||
| 48 | I8-94170 998-0 | BRACKET; EXH PIPE TO MTG | 1 | 9009-9601 | ABCD | |||
| 1 | I8-98019 803-A | PIPE; EXH | 1 | 0612- | E | (A) PICK-UP EURO2 | ||
| 14 | I8-97093 574-A | GASKET; SILENCER TO EXH PIPE | 1 | 9409- | ABCDE | (B) ID=55 | ||
| 143 | I8-94139 493-1 | RUBBER; SUPPORT | 1 | 9009-9402 | ABCD | DELETION T=28 | ||
| 12 | I8-97022 464-1 | SILENCER ASM; EXH | 1 | 9409-9601 | ABCD | (B) DELETION | ||
| 20 | I0-50141 030-0 | BOLT; FLANGE, EXH PIPE | 2 | 9009-9601 | ABCD | M10X30 W/LK8PL WASHER | ||
| 2 | I9-22116 021-0 | GASKET; PIPE TO MANIF | 1 | 9009-9601 | ABCD | ALSO INCLUDED IN GASKET SET(ENGINE) ID=44 | ||
| 43 | I8-94473 416-0 | CLAMP; EXH PIPE | 1 | 9009-9601 | ABCD | |||
| 76 | I8-97023 183-A | SUPPORT; BRKT | 4 | 9403- | ABCDE | T=28 D=55 | ||
| 38 | I7-05110 010-A | NUT; SILENCER | 2 | 9009- | ABCDE | M10 FLANGE | ||
| 41 | I0-91180 210-0 | NUT; EXHPIPE TO EXH SILENCER | 2 | 9009- | ABCDE | M10 FLANGE | ||
| 38 | I0-91150 210-0 | NUT; SILENCER | 2 | 9009- | ABCD | M10 FLANGE | ||
| 38 | I0-91180 210-0 | NUT; SILENCER | 2 | 9009- | ABCDE | M10 FLANGE | ||
| 126 | I8-97123 689-A | PIPE; EXH, RR | 1 | 9602- | ABCDE | |||
| 36 | I0-91180 210-0 | NUT; EXH PIPE | 2 | 9009- | ABCDE | (A) M10 FLANGE | ||
| 14 | I8-97093 574-0 | GASKET; SILENCER TO EXH PIPE | 1 | 9409- | ABCD | (B) ID=55 | ||
| 48 | I8-97131 747-A | BRACKET; EXH PIPE TO MTG | 1 | 9602- | ABCD | |||
| 1 | I7-58000 109-A | PIPE; EXH | 1 | 0612- | E | (A) PICK-UP EURO2 | ||
| 36 | I8-94156 626-0 | NUT; EXH PIPE | 2 | 9009-9402 | ABCD | (B) M10 FLANGE | ||
| 1 | I7-58020 109-A | PIPE; EXH | 1 | 0612- | E | (B) PICK-UP EURO2 | ||
| 143 | I8-97023 183-A | RUBBER; SUPPORT | 1 | 9009-9402 | ABCDE | T=28 | ||
| 14 | I8-94328 352-A | GASKET; SILENCER TO EXH PIPE | 1 | 9409- | ABCDE | (A) ID=64,7 | ||
| 12 | I8-97562 751-A | SILENCER ASM; EXH | 1 | 0612- | E | |||
| 1 | I8-97562 753-A | PIPE; EXH | 1 | 0612- | E | (B) PICK-UP EURO2 | ||
| 1 | I2-94367 993-0 | PIPE; EXH | 1 | 9009-9601 | ABCD | (A) DELETION | ||
| 41 | I0-91150 110-0 | NUT; EXHPIPE TO EXH SILENCER | 2 | 9009- | ABCD | M10 FLANGE | ||
| 1 | I2-94367 994-0 | PIPE; EXH | 1 | 9009-9601 | A C | (B) DELETION | ||
| 126 | I8-97123 689-0 | PIPE; EXH, RR | 1 | 9602- | ABCDE | |||
| 126 | I8-97109 932-0 | PIPE; EXH, RR | 1 | 9409-9601 | ABCD | DELETION | ||
| 126 | I8-94367 996-1 | PIPE; EXH, RR | 1 | 9009-9408 | ABCD | DELETION | ||
| 45 | I0-50641 030-0 | BOLT; BRKT | 2 | 9009- | ABCD | M10X30 W/LKBPL WASHER | ||
| 2 | I8-97069 287-0 | GASKET; PIPE TO MANIF | 1 | 9602- | ABCDE | |||
| 18 | I8-94328 353-A | GASKET; EXH PIPE TO PIPE | 1 | 9009-9402 | ABCD | ID=53 | ||
| 284 | I8-94204 636-0 | BOLT; HEAT PROTECTOR | 4 | 9009- | C | DELETION M6X14 W/PL WASHER | ||
| 36 | I7-05110 010-A | NUT; EXH PIPE | 2 | 9009- | ABCDE | (A) M10 FLANGE | ||
| 18 | I8-97093 574-A | GASKET; EXH PIPE TO PIPE | 1 | 0612- | E | ID=55 | ||
| 1 | I8-94367 994-0 | PIPE; EXH | 1 | 9009-9601 | A C | (B) DELETION | ||
| 14 | I8-94328 352-0 | GASKET; SILENCER TO EXH PIPE | 1 | 9409- | ABCD | (A) ID=64,7 | ||
| 46 | I0-28650 840-0 | BOLT; BRKT, EXH PIPE | 1 | 9411- | ABCDE | M8X40 FLANGE | ||
| 42 | I0-50141 030-0 | BOLT; EXH PIPE TO EXH SILENCER | 2 | 9009-9408 | ABCD | M10X30 W/LK&PL WASHER | ||
| 46 | I0-28680 840-0 | BOLT; BRKT, EXH PIPE | 1 | 9411- | ABCDE | M8X40 FLANGE | ||
| 81 | I0-91180 208-0 | NUT; BRKT | 4 | 9602- | ABCDE | M8 FLANGE | ||
| 36 | I0-91150 110-0 | NUT; EXH PIPE | 2 | 9009- | ABCD | (A) M10 FLANGE | ||
| 53 | I0-91150 108-0 | NUT; BRKT TO CLAMP | 1 | 9009- | ABCD | M8 FLANGE | ||
| 1 | I8-97123 643-0 | PIPE; EXH | 1 | 9602- | B D | (D) DELETION | ||
| 14 | I8-94328 353-A | GASKET; SILENCER TO EXH PIPE | 2 | 9009-9402 | ABCD | (A), (B) ID=53 | ||
| 1 | I2-94367 995-0 | PIPE; EXH | 1 | 9009-9601 | B D | (B) DELETION | ||
| 45 | I0-50141 030-0 | BOLT; BRKT | 2 | 9009-9408 | ABCD | M10X30 W/LKBPL WASHER | ||
| 76 | I8-94139 493-1 | SUPPORT; BRKT | 4 | 9009-9402 | ABCD | DELETION T=28 | ||
| 36 | I8-97096 192-1 | NUT; EXH PIPE | 2 | 9403- | ABCDE | M10 FLANGE | ||
| 36 | I7-05110 010-A | NUT; EXH PIPE | 2 | 9009- | ABCD | (A) M10 FLANGE | ||
| 175 | I8-97306 532-2 | CONVERTER; CATALYST | 1 | 0612- | E | |||
| 53 | I0-91180 208-0 | NUT; BRKT TO CLAMP | 1 | 9009- | ABCDE | M8 FLANGE | ||
| 42 | I0-50641 030-0 | BOLT; EXH PIPE TO EXH SILENCER | 2 | 9009- | ABCD | M10X30 W/LK&PL WASHER |
