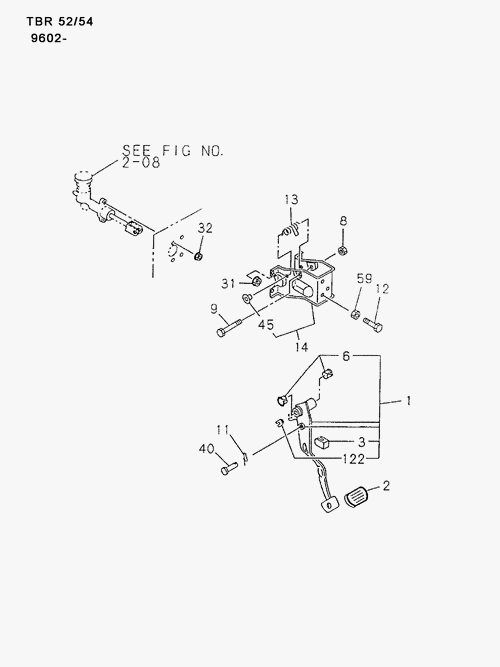

2-03 | CLUTCH PEDAL AND CONTROL
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 59 | I9-09110 510-0 | NUT; CLU PEDAL ADJ | 1 | 9009- | ABCDE | M10 | ||
| 13 | I8-97036 041-0 | SPRING; ASSIST, CLU PEDAL | 1 | 9602- | ABCD | |||
| 21 | I8-94329 696-0 | SPRING; RETURN, CLU PEDAL | 1 | 9009-9601 | ABCD | |||
| 40 | I8-94432 133-1 | PIN; JOINT, CLU DAMPER | 1 | 9602- | ABCDE | |||
| 46 | I8-94323 206-0 | BRACKET; CLU CABLE | 1 | 9009-9601 | ABCD | (A) DELETION | ||
| 11 | I1-09747 005-0 | PIN; SNAP, PUSH ROD TO PEDAL | 1 | 9602- | ABCDE | L=27.7 | ||
| 8 | I0-91180 210-0 | NUT; PIN TO PEDAL | 1 | 9602- | ABCDE | M10 FLANGE | ||
| 14 | I8-94329 888-1 | BRACKET ASM; CLU PEDAL MTG | 1 | 9602- | ABCDE | |||
| 31 | I0-91180 208-0 | NUT; FLANGE MTG BRKT TO BODY | 4 | 9602- | ABCDE | M8 FLANGE | ||
| 46 | I8-94462 836-0 | BRACKET; CLU CABLE | 1 | 9009-9601 | ABCD | (B) | ||
| 9 | I8-94478 011-0 | PIN; CLU PEDAL | 1 | 9009-9601 | ABCD | |||
| 72 | I8-94367 750-0 | CABLE; CLU CONT | 1 | 9009-9601 | ABCDE | |||
| 30 | I0-50540 816-0 | BOLT; CLU MTG BRKT | 2 | 9205- | ABCD | M8X16 W/LK WASHER | ||
| 45 | I8-94175 433-0 | BUSHING; ASSIST SPRING, CLU PEDAL | 2 | 9602- | ABCDE | |||
| 2 | I8-94222 524-1 | COVER; CLU PEDAL | 1 | 9009- | ABCDE | |||
| 12 | I0-20801 035-1 | BOLT; CLU PEDAL ADJ | 1 | 9205- | ABCDE | M10X35 | ||
| 9 | I8-94455 308-0 | PIN; CLU PEDAL | 1 | 9602- | ABCDE | |||
| 1 | I8-94454 760-0 | PEDAL; CLU | 1 | 9009-9601 | ABCD | |||
| 6 | I8-94244 439-0 | BUSHING; CLU PEDAL | 2 | 9009- | ABCDE | |||
| 13 | I8-97312 882-0 | SPRING; ASSIST, CLU PEDAL | 1 | 9602- | ABCDE | |||
| 30 | I0-50040 816-0 | BOLT; CLU MTG BRKT | 2 | 9205-9601 | ABCD | M8X16 W/LK WASHER | ||
| 3 | I8-94463 258-0 | RUBBER; STOPPER, CLU PEDAL | 1 | 9009- | ABCDE | |||
| 1 | I8-97135 073-0 | PEDAL; CLU | 1 | 9602- | ABCDE | |||
| 32 | I0-91180 208-0 | NUT; BRKT TO CLU M/CYL | 2 | 9602- | ABCDE | M8 FLANGE | ||
| 14 | I8-94454 758-3 | BRACKET ASM; CLU PEDAL MTG | 1 | 9009-9601 | ABCD | |||
| 72 | I6-94367 750-0 | CABLE; CLU CONT | 1 | 9009-9601 | ABCDE | (IADG) | ||
| 122 | I8-94175 434-0 | BUSHING; ASSIST PEDAL, CLU | 1 | 9602- | ABCDE | |||
| 8 | I7-05110 010-A | NUT; PIN TO PEDAL | 1 | 9602- | ABCDE | M10 FLANGE | ||
| 62 | I9-09150 510-0 | WASHER; LK, PIN TO PEDAL | 1 | 9009-9601 | ABCD | ID=10. 2 | ||
| 62 | I1-09985 345-0 | WASHER; LK, PIN TO PEDAL | 1 | 9009-9601 | ABCD | ID=10. 2 |
