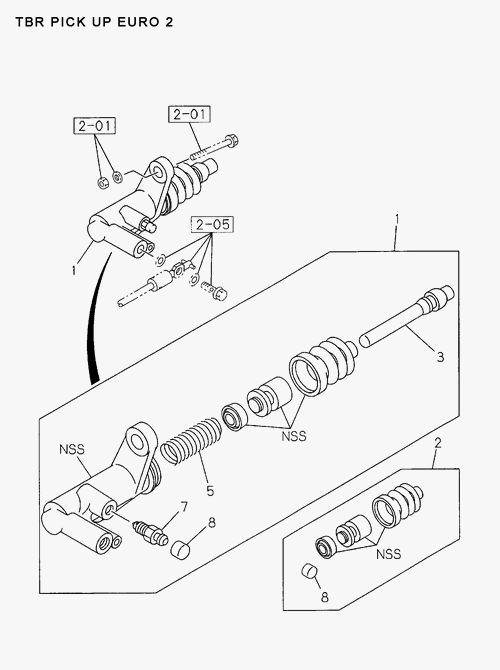

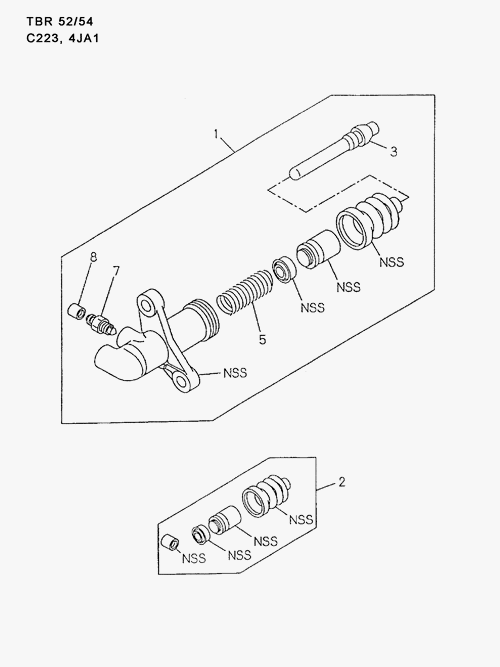

2-06 | CLUTCH SLAVE CYLINDER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97039 704-0 | CYLINDER; SLAVE, CLU | 1 | 9602- | BC | |||
| 2 | I5-87831 081-1 | REPAIR KIT; CLU SLAVE CYL | 1 | 9602- | BC | |||
| 8 | I9-47619 005-0 | CAP; BLEEDER, SLAVE CYL | 1 | 9602- | BC | OD=9,5 | ||
| 7 | I8-94115 113-0 | SCREW; BLEEDER, SL AVE CYL | 1 | 9602- | BC | M8X10 | ||
| 5 | I8-97016 025-0 | SPRING ASM; PISTON, SLAVE CYL | 1 | 9602- | BC | |||
| 2 | I5-87831 081-0 | REPAIR KIT; CLU SLAVE CYL | 1 | 9602- | BC | |||
| 1 | I8-97039 704-1 | CYLINDER; SLAVE, CLU | 1 | 9602- | BC | |||
| 3 | I8-94136 252-0 | ROD; PUSH, SLAVE CYL | 1 | 9602- | BC | |||
| 7 | I8-98020 477-0 | SCREW; BLEEDER, SL AVE CYL | 1 | 9602- | BC | M8X10 |
