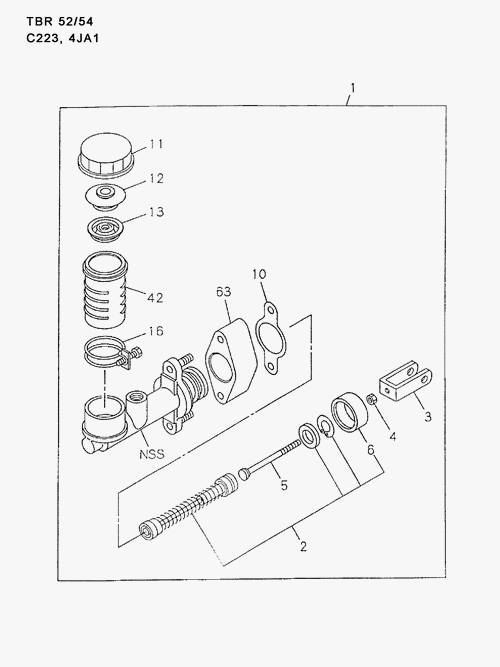

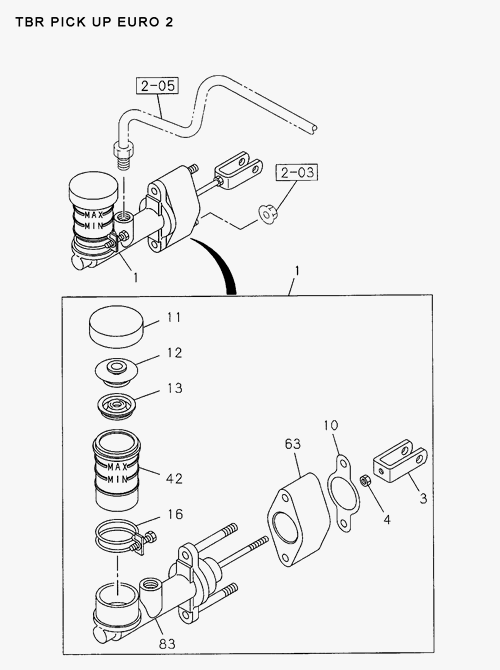

2-08 | CLUTCH MASTER CYLINDER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 4 | I9-09111 408-0 | NUT; JAW JOINT | 1 | 9602- | B | M8 | ||
| 83 | I8-97213 042-0 | CYLIDER SUB ASM; CLUTCH MASTER | 1 | 0612- | C | |||
| 11 | I8-94412 207-0 | CAP; OUTER, CLU M/CYL | 1 | 9602- | BC | |||
| 16 | I5-09704 046-0 | CLIP; OIL TANK, CLU M/CYL | 1 | 9602- | BC | |||
| 6 | I8-94412 200-0 | BOOT; CLU M/ CYL | 1 | 9602- | B | |||
| 12 | I8-94412 206-0 | CAP; INNER, OIL TANK, CLU M/CYL | 1 | 9602- | BC | |||
| 42 | I8-97037 335-0 | TANK; OIL, CLU | 1 | 9602- | BC | |||
| 3 | I8-94412 201-0 | JOINT; JAW, CLU M/CYL | 1 | 9602- | BC | |||
| 5 | I8-97138 487-0 | ROD; PUSH, CLU M/CYL | 1 | 9602- | B | |||
| 10 | I8-97184 654-0 | GASKET; CLU M/CYL | 1 | 9602- | BC | |||
| 1 | I8-97201 006-0 | CYLINDER ASM; CLUTCH MASTER | 1 | 9602- | BC | |||
| 4 | I9-09111 508-A | NUT; JAW JOINT | 1 | 9602- | BC | M8 | ||
| 63 | I8-97138 488-0 | ADAPTER | 1 | 9602- | BC | |||
| 13 | I8-94412 205-0 | GASKET; OIL TANK | 1 | 9602- | BC | |||
| 2 | I5-87831 659-0 | REPAIR KIT; CLU M/CYL | 1 | 9602- | B |
