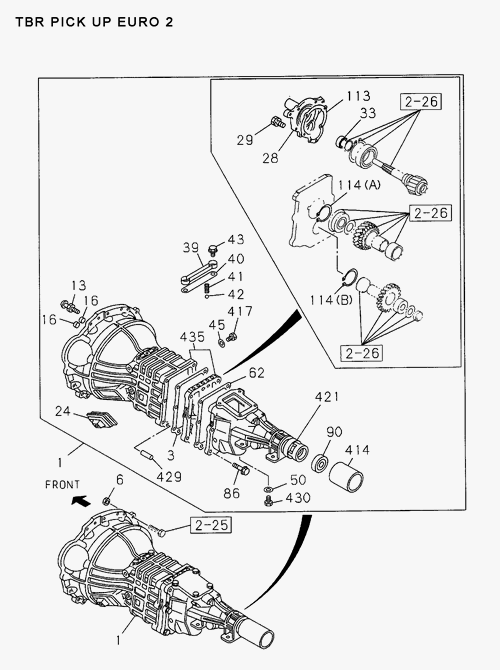

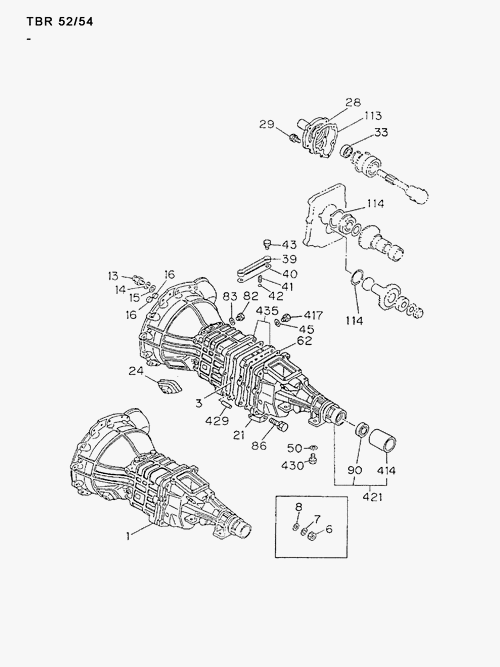

2-20 | MANUAL TRANSMISSION ASM AND CASE
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 43 | I0-28080 820-0 | BOLT; PLATE TO PLATE | 2 | 9009-9408 | AB | M8X20 FLANGE | ||
| 429 | I5-09740 018-1 | PIN; STRAIGHT | 2 | 9009-9408 | ABC | |||
| 7 | I1-09985 180-0 | WASHER; LK, STIFFENER | 1 | 9409-9601 | B | ID=10,2 | ||
| 414 | I8-98027 802-0 | COVER; DUST RR COVER | 1 | 0612- | C | |||
| 114 | I5-09589 005-0 | RING; SNAP, BALL BRG | 1 | 9009-9408 | ABC | ID=71. 7 | ||
| 43 | I0-28050 820-0 | BOLT; PLATE TO PLATE | 2 | 9009- | AB | M8X20 FLANGE | ||
| 3 | I8-94482 496-0 | GASKET; CASE TO RR COVER | 1 | 9009-9408 | ABC | ALSO INCLUDED IN GASKET SET(M/T). | ||
| 7 | I9-09150 512-0 | WASHER; LK, STIFFENER | 2 | 9009-9408 | AB | ID=12 | ||
| 435 | I8-94473 935-0 | CASE; TRANS | 1 | 9009- | AB | |||
| 82 | I8-94252 142-0 | PLUG; SCREW CASE | 1 | 9401-9408 | AB | M14X11 | ||
| 435 | I8-94473 935-2 | CASE; TRANS | 1 | 9009-9408 | AB | |||
| 82 | I9-99202 314-0 | PLUG; SCREW CASE | 1 | 9009-9312 | AB | M14X9 | ||
| 16 | I5-09609 004-0 | PLUG; SHIFT ROD | 2 | 9009-9408 | ABC | OD=14 | ||
| 8 | I0-91610 510-0 | WASHER; PL, STIFFENER | 1 | 9409- | B | ID=10 | ||
| 21 | I8-94206 583-0 | BRACKET; RETURN SPR | 1 | 9009-9408 | AB | |||
| 28 | I8-97116 796-0 | COVER; FRT, TRANS CASE | 1 | 9602- | BC | |||
| 45 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 9009-9407 | ABC | ALSO INCLUDED IN GASKET SET(M/T). | ||
| 90 | I8-97046 705-3 | SEAL; OIL, RR COVER | 1 | 9009- | BC | NOK | ||
| 8 | I0-91610 510-0 | WASHER; PL, STIFFENER | 1 | 9009- | AB | ID=10 | ||
| 40 | I8-94473 947-0 | GASKET; DETENT SPR PLATE | 1 | 9009-9408 | ABC | ALSO INCLUDED IN GASKET SET(M/T). | ||
| 13 | I8-97072 827-0 | SUPPORT; SHIFT FORK | 1 | 9009-9408 | ABC | L=47.5 | ||
| 82 | I8-98035 674-0 | PLUG; SCREW CASE | 1 | 9401- | AB | M14X11 | ||
| 14 | I0-91510 512-0 | WASHER; LK, SUPPORT | 1 | 9009-9408 | AB | ID=12 | ||
| 6 | I7-05110 010-A | NUT; CASE, TRANS | 2 | 9602- | ABC | M10 FLANGE | ||
| 7 | I0-91510 512-0 | WASHER; LK, STIFFENER | 2 | 9009-9408 | AB | ID=12 | ||
| 7 | I1-09985 345-0 | WASHER; LK, STIFFENER | 1 | 9409-9601 | B | ID=10,2 | ||
| 16 | I8-97358 601-0 | PLUG; SHIFT ROD | 2 | 9009- | ABC | OD=14 | ||
| 175 | I6-97071 561-0 | SEAL; OIL, CR/SHF, RR | 1 | 9602- | BC | (IADG) | ||
| 24 | I5-31131 005-0 | COVER; CHECK HOLE, UPR | 1 | 9009-9408 | AB | |||
| 41 | I8-94320 193-0 | SPRING; DETENT BALL | 3 | 9009-9408 | ABC | L=25,6 | ||
| 6 | I0-91180 210-0 | NUT; CASE, TRANS | 2 | 9602- | ABC | M10 FLANGE | ||
| 1 | I8-97077 113-0 | TRANSMISSION ASM; MANUAL | 1 | 9206-9601 | B | |||
| 90 | I6-94422 387-0 | SEAL; OIL, RR COVER | 1 | 9009- | B | (IADG) NOK | ||
| 421 | I8-97113 615-2 | COVER; RR, TRANS | 1 | 9511- | B | |||
| 62 | I8-94482 496-0 | GASKET; RR COVER | 1 | 9009-9408 | AB | ALSO INCLUDED IN GASKET SET(M/T). | ||
| 86 | I8-94448 817-1 | BOLT; RR COVER | 8 | 9009-9408 | ABC | M10X55 FLANGE | ||
| 90 | I6-94223 026-0 | SEAL; OIL, RR COVER | 1 | 9009-9408 | A | (IADG) ALSO INCLUDED-IN GASKET SET(M/T). | ||
| 1 | I8-97149 204-0 | TRANSMISSION ASM; MANUAL | 1 | 9602- | BC | |||
| 24 | I6-94156 700-0 | COVER; CHECK HOLE, UPR | 1 | 9602- | BC | (IADG) | ||
| 28 | I8-97116 796-A | COVER; FRT, TRANS CASE | 1 | 9602- | BC | |||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 9009-9407 | ABC | ALSO INCLUDED IN GASKET SET(M/T). | ||
| 33 | I8-94326 441-0 | SEAL; OIL, FRT COVER, T/M | 1 | 9009-9408 | ABC | ALSO INCLUDED IN GASKET SET(M/T). NOK | ||
| 90 | I8-94422 387-0 | SEAL; OIL, RR COVER | 1 | 9009- | B | NOK | ||
| 421 | I8-98193 595-0 | COVER; RR, TRANS | 1 | 0612- | C | |||
| 8 | I9-09160 510-0 | WASHER; PL, STIFFENER | 1 | 9009-9408 | AB | ID=10 | ||
| 435 | I8-97211 483-A | CASE; TRANS | 1 | 9602- | B | |||
| 175 | I6-09625 036-0 | SEAL; OIL, CR/SHF, RR | 1 | 9009-9601 | A | (IADG) ALSO INCLUDED IN GASKET SET(ENGINE) | ||
| 414 | I8-94310 493-0 | COVER; DUST RR COVER | 1 | 9009-9408 | AB | |||
| 28 | I8-94421 781-1 | COVER; FRT, TRANS CASE | 1 | 9602- | B | |||
| 7 | I1-09985 180-0 | WASHER; LK, STIFFENER | 1 | 9009-9408 | AB | ID=10,2 | ||
| 435 | I8-98035 893-0 | CASE; TRANS | 1 | 0612- | C | |||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 0612- | C | |||
| 113 | I8-97113 190-0 | GASKET; FRT COVER TO TRANS CASE | 1 | 0612- | C | |||
| 113 | I8-94482 495-0 | GASKET; FRT COVER TO TRANS CASE | 1 | 9009-9408 | AB | ALSO INCLUDED IN GASKET SET(M/T). | ||
| 8 | I9-09160 512-0 | WASHER; PL, STIFFENER | 2 | 9009-9408 | AB | ID=12 | ||
| 33 | I6-94326 441-0 | SEAL; OIL, FRT COVER, T/M | 1 | 9009-9408 | ABC | (IADG) ALSO INCLUDED IN GASKET SET(M/T). NOK | ||
| 114 | I5-09589 004-0 | RING; SNAP, BALL BRG | 1 | 9009-9408 | ABC | ID=49. 6 | ||
| 14 | I9-09150 512-0 | WASHER; LK, SUPPORT | 1 | 9009-9408 | AB | ID=12 | ||
| 7 | I0-91510 512-0 | WASHER; LK, STIFFENER | 2 | 9409-9601 | B | ID=12 | ||
| 7 | I1-09985 345-0 | WASHER; LK, STIFFENER | 1 | 9009-9408 | AB | ID=10,2 | ||
| 417 | I8-94310 917-0 | PLUG; OIL FIILLER, TRANS | 1 | 9009-9408 | AB | |||
| 13 | I5-31345 002-1 | SUPPORT; SHIFT FORK | 1 | 9009-9408 | AB | L=47.5 | ||
| 43 | I8-97365 376-0 | BOLT; PLATE TO PLATE | 2 | 0612- | C | M8X22 FLANGE | ||
| 430 | I9-09662 004-0 | PLUG; OIL DRAIN | 1 | 9009-9408 | AB | |||
| 43 | I0-28080 816-0 | BOLT; PLATE TO PLATE | 2 | 9410- | B | M8X16 FLANGE | ||
| 1 | I8-97119 248-0 | TRANSMISSION ASM; MANUAL | 1 | 9602- | BC | |||
| 103 | I6-97049 145-0 | SEAL; OIL, CR/SHF, FRT | 1 | 9009-9112 | AB | (IADG) | ||
| 15 | I0-91610 512-0 | WASHER; PL | 1 | 9009- | AB | ID=12 | ||
| 83 | I8-94462 114-0 | GASKET; PLUG | 1 | 9009-9408 | AB | ALSO INCLUDED IN GASKET SET(M/T),ID=14,2 | ||
| 39 | I8-94373 864-1 | PLATE; DETENT SPR | 1 | 9009-9408 | ABC | |||
| 90 | I8-94223 026-0 | SEAL; OIL, RR COVER | 1 | 9009-9408 | A | ALSO INCLUDED-IN GASKET SET(M/T). | ||
| 24 | I8-94156 700-0 | COVER; CHECK HOLE, UPR | 1 | 9602- | BC | |||
| 417 | I8-97365 373-0 | PLUG; OIL FIILLER, TRANS | 1 | 0612- | C | |||
| 7 | I9-09150 512-0 | WASHER; LK, STIFFENER | 2 | 9409-9601 | B | ID=12 | ||
| 8 | I0-91610 512-0 | WASHER; PL, STIFFENER | 2 | 9009- | AB | ID=12 | ||
| 28 | I8-94423 141-1 | COVER; FRT, TRANS CASE | 1 | 9009-9408 | AB | |||
| 42 | I8-94435 335-0 | BALL; DETENT, GEAR SHIFT | 3 | 9009-9408 | ABC | |||
| 421 | I8-98036 019-0 | COVER; RR, TRANS | 1 | 0612- | C | |||
| 421 | I8-94164 013-3 | COVER; RR, TRANS | 1 | 9009-9408 | A | |||
| 28 | I8-97116 796-A | COVER; FRT, TRANS CASE | 1 | 9602- | B | |||
| 21 | I8-94206 583-0 | BRACKET; RETURN SPR | 1 | 9409-9601 | B | |||
| 29 | I8-94448 815-3 | BOLT; FRT COVER | 6 | 9410- | BC | M8X22 FLANGE | ||
| 8 | I9-09160 510-0 | WASHER; PL, STIFFENER | 1 | 9409-9601 | B | ID=10 | ||
| 15 | I9-09160 512-0 | WASHER; PL | 1 | 9009-9408 | AB | ID=12 |
