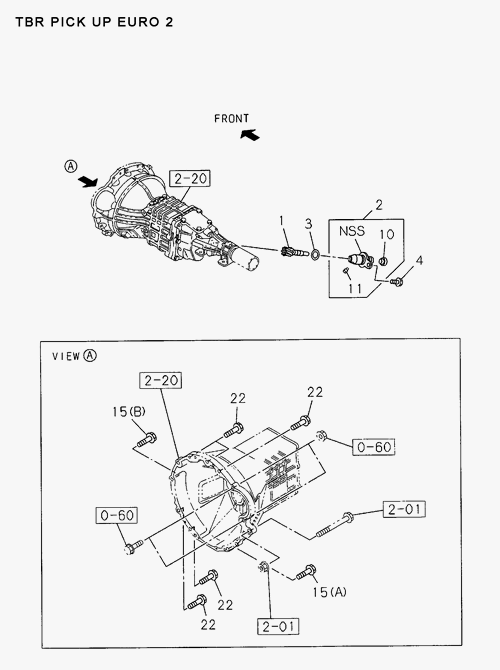

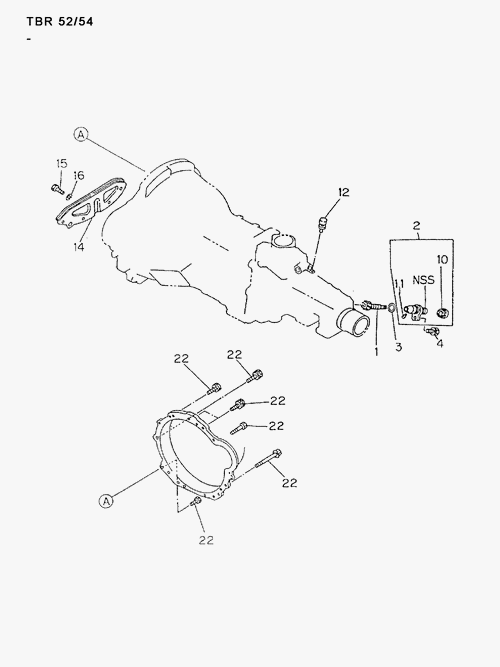

2-25 | SPEEDOMETER DRIVEN GEAR
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 22 | I0-50141 040-0 | BOLT; TRANS CASE TO ENG | 2 | 9009-9408 | AB | MlOX40 W/LK&PL WASHER | ||
| 22 | I0-28081 035-0 | BOLT; TRANS CASE TO ENG | 1 | 9602- | B | MlOX35 FLANGE | ||
| 1 | I8-94473 304-2 | GEAR; DRIVEN, SPD | 1 | 9602- | BC | Z=18 | ||
| 16 | I1-09985 179-0 | WASHER; LK, UNDER COVER | 4 | 9009-9408 | AB | ID=6 | ||
| 22 | I0-50141 045-1 | BOLT; TRANS CASE TO ENG | 2 | 9009-9408 | AB | M10X45 W/LK&PL WASHER | ||
| 22 | I0-28051 235-0 | BOLT; TRANS CASE TO ENG | 1 | 9602- | BC | M12X35 FLANGE | ||
| 4 | I0-28080 816-0 | BOLT; RET, DRIVEN GEAR | 1 | 9504- | B | M8X16 FLANGE | ||
| 15 | I0-50541 035-0 | BOLT; UNDER COVER TO TRANS | 1 | 9009- | AB | M10X35 W/LK&PL WASHER | ||
| 22 | I8-94475 060-1 | BOLT; TRANS CASE TO ENG | 1 | 9602- | BC | M12X90 | ||
| 15 | I0-28081 035-0 | BOLT; UNDER COVER TO TRANS | 1 | 9602- | B | MlOX35 FLANGE | ||
| 15 | I0-28050 040-0 | BOLT; UNDER COVER TO TRANS | 1 | 0612- | C | (B) M10X40 FLANGE | ||
| 2 | I8-94463 608-4 | BUSHING; DRIVEN GEAR, SPEEDOMETER | 1 | 9409- | BC | |||
| 22 | I0-28051 040-0 | BOLT; TRANS CASE TO ENG | 2 | 9009- | AB | MlOX40 W/LK&PL WASHER | ||
| 4 | I0-28050 816-0 | BOLT; RET, DRIVEN GEAR | 1 | 0612- | C | M8X16 FLANGE | ||
| 22 | I0-20851 240-0 | BOLT; TRANS CASE TO ENG | 1 | 9009- | AB | M12X40 | ||
| 1 | I8-94473 307-2 | GEAR; DRIVEN, SPD | 1 | 9009-9408 | AB | Z=17 | ||
| 15 | I0-20800 610-0 | BOLT; UNDER COVER TO TRANS | 4 | 9205-9408 | AB | M6X10 | ||
| 22 | I0-28081 040-0 | BOLT; TRANS CASE TO ENG | 2 | 9602- | BC | M10X40 FLANGE | ||
| 3 | I9-09921 100-0 | GASKET; BUSHING | 1 | 9009-9408 | ABC | ALSO INCLUDED IN GASKET SET(M/T). | ||
| 22 | I0-10806 285-0 | BOLT; TRANS CASE TO ENG | 1 | 9009-9408 | AB | M12X85 | ||
| 364 | I8-97078 152-A | GASKET | 1 | 9602- | B | (IADG) ALSO INCLUDED IN GASKET SET(ENGINE) | ||
| 10 | I8-97131 328-1 | SEAL; OIL, DRIVE GEAR | 1 | 9506- | BC | NOK | ||
| 15 | I0-28051 030-0 | BOLT; UNDER COVER TO TRANS | 1 | 9602- | B | M10X30 FLANGE | ||
| 22 | I0-28081 040-0 | BOLT; TRANS CASE TO ENG | 2 | 9009-9408 | AB | MlOX40 W/LK&PL WASHER | ||
| 15 | I0-50141 035-0 | BOLT; UNDER COVER TO TRANS | 1 | 9009-9408 | AB | M10X35 W/LK&PL WASHER | ||
| 15 | I0-28051 035-0 | BOLT; UNDER COVER TO TRANS | 1 | 9602- | BC | (A) MlOX35 FLANGE | ||
| 15 | I0-28080 610-0 | BOLT; UNDER COVER TO TRANS | 4 | 9205-9408 | AB | M6X10 | ||
| 22 | I0-28081 235-0 | BOLT; TRANS CASE TO ENG | 1 | 9602- | BC | M12X35 FLANGE | ||
| 14 | I5-31131 013-1 | COVER; UNDER, TRANS | 1 | 9009-9408 | AB | |||
| 22 | I0-28051 040-0 | BOLT; TRANS CASE TO ENG | 2 | 9009- | AB | MlOX40 W/LK&PL WASHER | ||
| 22 | I0-28051 040-0 | BOLT; TRANS CASE TO ENG | 2 | 9602- | BC | M10X40 FLANGE | ||
| 22 | I0-28051 035-0 | BOLT; TRANS CASE TO ENG | 1 | 9602- | BC | MlOX35 FLANGE | ||
| 22 | I0-20801 240-0 | BOLT; TRANS CASE TO ENG | 1 | 9009-9408 | AB | M12X40 | ||
| 10 | I1-09625 510-0 | SEAL; OIL, DRIVE GEAR | 1 | 9009-9408 | AB | ALSO INCLUDED IN GASKET SET(M/T). NOK | ||
| 11 | I8-94446 571-1 | FILTER; BUSHING, SPEEDOMETER DRIVEN GEA | 1 | 9009-9405 | ABC | |||
| 22 | I0-28051 045-0 | BOLT; TRANS CASE TO ENG | 1 | 0612- | C | M10X45 FLANGE | ||
| 12 | I8-94440 556-0 | BREATHER; AIR, TRANS | 1 | 9009-9408 | AB | L=39 | ||
| 4 | I0-28080 818-0 | BOLT; RET, DRIVEN GEAR | 1 | 9205-9408 | AB | M8X18 FLANGE | ||
| 15 | I0-28081 030-0 | BOLT; UNDER COVER TO TRANS | 1 | 9602- | B | M10X30 FLANGE | ||
| 22 | I8-94448 817-1 | BOLT; TRANS CASE TO ENG | 1 | 9602- | B | M10X55 FLANGE |
