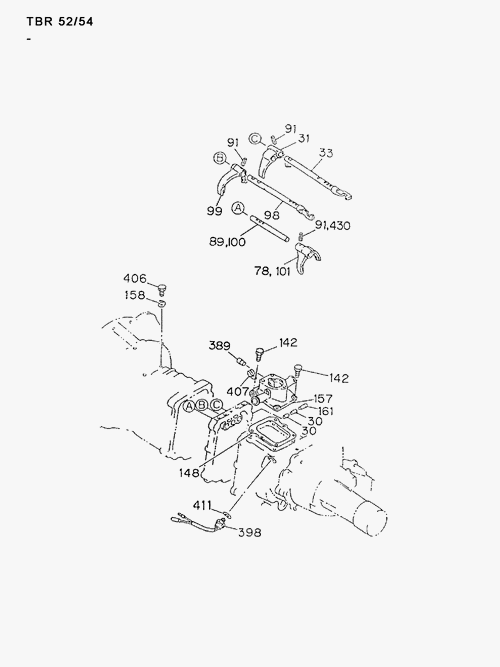

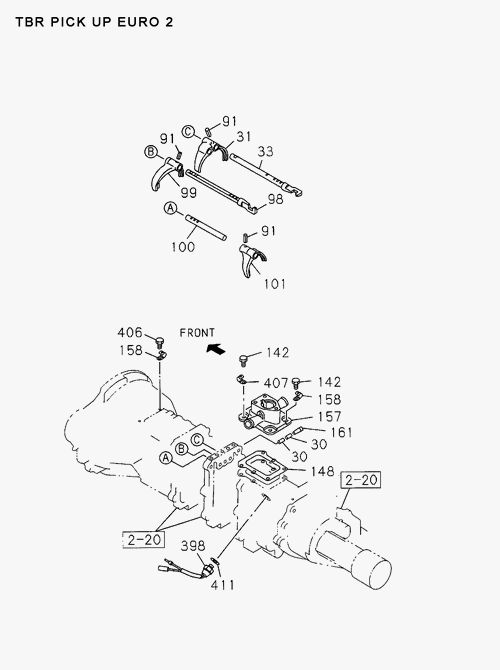

2-30 | GEAR SHIFTER AND QUADRANT BOX
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 411 | I8-94462 114-0 | GASKET; REV LAMP SW | 1 | 9009-9408 | ABC | ALSO INCLUDED IN GASKET SET(M/T). ID=14. 2 | ||
| 157 | I8-94161 146-4 | BOX; QUAD, TRANS | 1 | 0612- | C | |||
| 98 | I8-94372 766-0 | ROD; SHIFT, TOP 8 3RD | 1 | 9009-9408 | AB | |||
| 398 | I8-97138 635-0 | SWITCH; REV LAMP | 1 | 9009-9408 | AB | |||
| 148 | I8-97184 922-0 | GASKET; QUAD BOX | 1 | 0612- | C | |||
| 161 | I8-94239 543-1 | PLUG; INTER LK HOLE | 1 | 9009-9408 | ABC | |||
| 101 | I8-94440 061-3 | ARM; SHIFT, REV 8 5TH | 1 | 9009- | BC | |||
| 407 | I5-09709 095-0 | CLIP; SWITCH HARNESS | 1 | 9409- | B | ID=8.5 | ||
| 389 | I8-94205 805-2 | PLUG; QUAD BOX, NEUTRAL SW | 1 | 9009-9408 | AB | |||
| 98 | I8-94248 598-0 | ROD; SHIFT, TOP 8 3RD | 1 | 0612- | C | |||
| 33 | I8-94435 156-1 | ROD; SHIFT, LOW 8 2ND | 1 | 9009-9408 | AB | |||
| 99 | I8-94435 153-1 | ARM; SHIFT, 4TH 8 3RD | 1 | 9009- | ABC | |||
| 89 | I8-94474 330-2 | ROD SHIFT; REV | 1 | 9009-9408 | A | |||
| 157 | I8-94161 146-A | BOX; QUAD, TRANS | 1 | 0612- | C | |||
| 142 | I8-97365 376-0 | BOLT; QUAD BOX | 1 | 0612- | C | M8X22 FLANGE | ||
| 407 | I5-09700 350-0 | CLIP; SWITCH HARNESS | 1 | 0612- | C | ID=12 | ||
| 407 | I5-09700 350-0 | CLIP; SWITCH HARNESS | 1 | 9009-9408 | AB | ID=8.5 | ||
| 100 | I8-94474 329-2 | ROD; SHIFT, REV 8 5TH | 1 | 9009- | B | |||
| 148 | I8-94462 112-0 | GASKET; QUAD BOX | 1 | 9009-9408 | AB | ALSO INCLUDED IN GASKET SET(M/T). | ||
| 398 | I8-98035 681-0 | SWITCH; REV LAMP | 1 | 0612- | C | |||
| 33 | I8-97248 599-0 | ROD; SHIFT, LOW 8 2ND | 1 | 0612- | C | |||
| 100 | I8-94248 601-0 | ROD; SHIFT, REV 8 5TH | 1 | 0612- | C | |||
| 142 | I8-97021 210-0 | BOLT; QUAD BOX | 4 | 9105-9408 | AB | M8X20 W/DRY-ROCK | ||
| 158 | I5-09709 095-0 | CLIP; HARNESS | 1 | 9009-9408 | AB | ID=8.5 | ||
| 398 | I8-98042 851-0 | SWITCH; REV LAMP | 1 | 0612- | C | |||
| 30 | I5-33534 002-1 | PIN; INTER LK | 2 | 9009-9408 | ABC | |||
| 406 | I8-94200 833-0 | BOLT; HARNESS CLIP | 1 | 9009-9406 | ABC | M8X16 | ||
| 158 | I8-97367 984-0 | CLIP; HARNESS | 1 | 0612- | C | ID=12 | ||
| 430 | I8-94171 541-0 | PIN; SPR, SHIFT ROD | 1 | 9009-9408 | A | D=4.2 L=25 | ||
| 78 | I8-94472 377-3 | ARM SHIFT; REV | 1 | 9009-9408 | A | |||
| 398 | I8-98035 681-0 | SWITCH; REV LAMP | 1 | 9009- | AB | |||
| 157 | I8-94161 113-4 | BOX; QUAD, TRANS | 1 | 9309-9408 | AB | |||
| 91 | I8-94171 541-0 | PIN SPR; SHIFT ARM | 3 | 9009-9408 | ABC | D=4.2 L=25 | ||
| 31 | I8-97024 503-1 | ARM; SHIFT, LOW 8 2ND | 1 | 9009-9408 | ABC | |||
| 99 | I8-94435 153-3 | ARM; SHIFT, 4TH 8 3RD | 1 | 9009-9408 | ABC |
