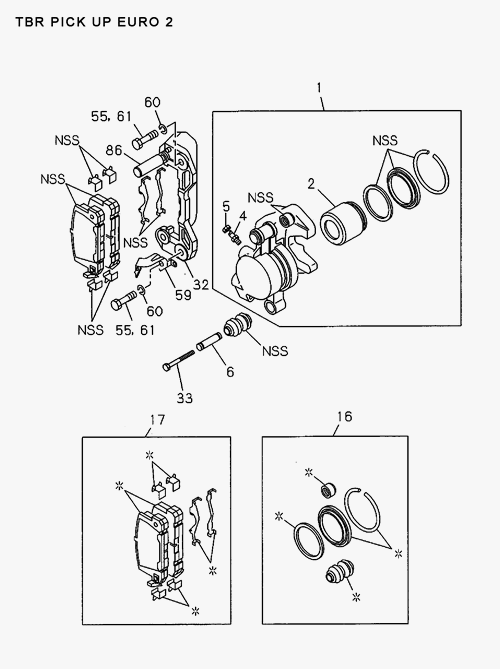

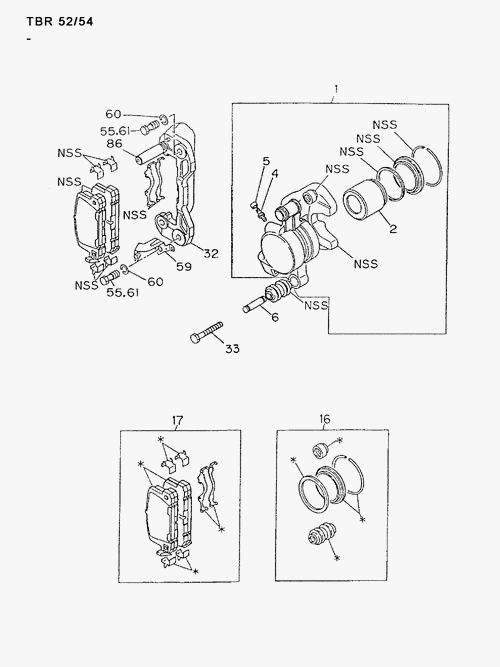

3-02 | FRONT DISC BRAKE CALIPER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 60 | I9-09150 814-0 | WASHER; LK, SUPPORT BRKT TO KNUCKLE | 4 | 9009- | ABCDE | ID=14 | ||
| 4 | I8-94380 137-0 | SCREW; BLEEDER, DISC BRK, FRT | 2 | 9009- | ABCDE | |||
| 1 | I8-97017 493-0 | CALIPER; FRT DISC BRK | 1 | 9009- | ABCDE | |||
| 32 | I8-97956 918-A | SUPPORT; FRT DISC BRK | 2 | 9009- | ABCDE | |||
| 1 | I8-98308 583-0 | CALIPER; FRT DISC BRK | 1 | 1607- | ABCDE | |||
| 16 | I6-94461 250-1 | REPAIR KIT; CALIPER, DISC BRK, FRT | 1 | 9009- | ABCDE | (IADG) | ||
| 55 | I8-97019 748-0 | BOLT; SUPPORT BRKT TO DISC BRK | 2 | 9009- | ABCDE | |||
| 16 | I8-94461 250-0 | REPAIR KIT; CALIPER, DISC BRK, FRT | 1 | 9009- | ABCDE | |||
| 2 | I6-94438 689-1 | PISTON; CALIPER, DISC BRK, FRT | 2 | 9009- | ABCDE | (IADG) | ||
| 60 | I0-91510 814-0 | WASHER; LK, SUPPORT BRKT TO KNUCKLE | 4 | 9009- | ABCDE | ID=14 | ||
| 61 | I8-97019 748-0 | BOLT; SUPPORT BRKT TO KNUCKLE | 2 | 9009- | ABCDE | |||
| 59 | I8-97031 512-1 | BRACKET; FLEX HOSE, FRT | 1 | 9009- | ABCDE | |||
| 1 | I8-98308 582-0 | CALIPER; FRT DISC BRK | 1 | 9009- | ABCDE | |||
| 6 | I8-94136 644-0 | SLEEVE; BOOT, CALIPER | 2 | 9009- | ABCDE | |||
| 59 | I8-97031 513-0 | BRACKET; FLEX HOSE, FRT | 1 | 9009- | ABCDE | |||
| 2 | I8-94438 689-0 | PISTON; CALIPER, DISC BRK, FRT | 2 | 9009- | ABCDE | |||
| 32 | I8-94386 828-0 | SUPPORT; FRT DISC BRK | 2 | 9009- | ABCDE | |||
| 5 | I9-47619 038-0 | CAP; BLEEDER, DISC BRK, FRT | 2 | 9009- | ABCDE | |||
| 86 | I8-94438 694-0 | PIN; GUIDE | 2 | 9009- | ABCDE | |||
| 33 | I8-94438 712-0 | BOLT; SUPPORT BRKT TO DISC BRK | 2 | 9009- | ABCDE | M10X59. 5 |
