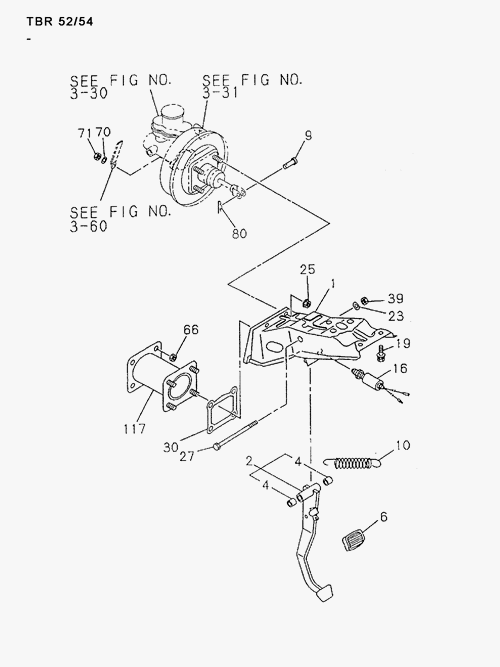

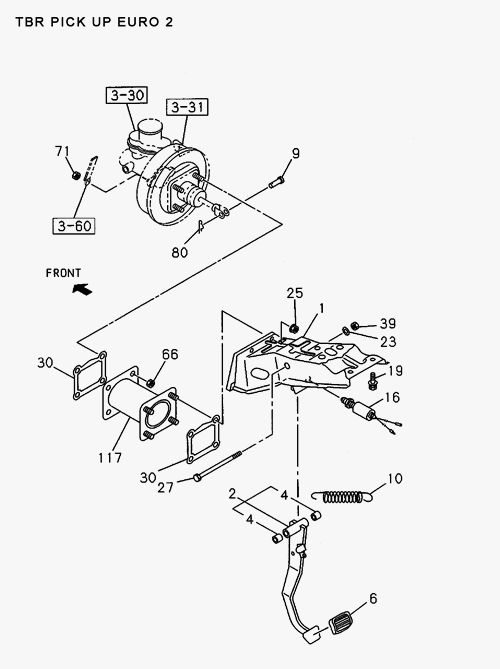

3-10 | BRAKE PEDAL AND CONTROL
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 23 | I1-09985 345-0 | WASHER; LK, SHAFT | 1 | 9009- | ABCDE | ID=10,2 | ||
| 66 | I8-94279 050-0 | NUT; SERVO TO BRKT | 4 | 9009- | ABCDE | M8 W/LK WASHER | ||
| 117 | I8-97119 891-0 | SPACER; M /VAC TO BODY | 1 | 9501- | ABCDE | |||
| 6 | I8-94222 524-1 | COVER; BRK PEDAL | 1 | 9009- | ABCDE | |||
| 27 | I8-94480 803-0 | SHAFT; BRK PEDAL | 1 | 9009- | ABCDE | |||
| 1 | I8-94455 108-3 | BRACKET ASM; PEDAL | 1 | 9009- | ABCD | |||
| 25 | I0-91150 208-0 | NUT; FLANGE MTG BRKT TO BODY | 4 | 9009- | ABCD | M8 FLANGE | ||
| 71 | I9-09110 508-0 | NUT; BRK M/CYL | 2 | 9009-9411 | ABCD | M8 | ||
| 71 | I0-91110 508-0 | NUT; BRK M/CYL | 2 | 9009- | ABCD | M8 | ||
| 71 | I8-94279 050-0 | NUT; BRK M/CYL | 2 | 9412- | ABCDE | M8 W/LK WASHER | ||
| 19 | I0-50140 818-0 | BOLT; BRKT | 5 | 9205-9408 | ABCD | M8X18 W/LK&PL WASHER | ||
| 10 | I8-94329 696-0 | SPRING; RETURN, BRK PEDAL | 1 | 9009- | ABCDE | |||
| 39 | I9-09110 510-0 | NUT; STOPPER LK | 1 | 9009- | ABCDE | M10 | ||
| 30 | I8-94111 590-0 | GASKET; M/VAC TO BODY | 2 | 9009- | ABCDE | |||
| 23 | I1-09985 180-0 | WASHER; LK, SHAFT | 1 | 9009- | ABCD | ID=10,2 | ||
| 16 | I8-94362 930-0 | SWITCH; STOP LAMP | 1 | 9009- | ABCDE | |||
| 80 | I8-94157 841-0 | PIN; SNAP, BRK PEDAL | 1 | 9212- | ABCDE | L=27.7 | ||
| 19 | I0-50640 820-0 | BOLT; BRKT | 5 | 9409- | ABCD | M8X20 W/LK&PL WASHER | ||
| 9 | I8-94250 182-0 | PIN; JAW JOINT | 1 | 9009- | ABCDE | |||
| 2 | I8-94329 611-1 | PEDAL; BRAKE | 1 | 9009- | ABCDE | |||
| 19 | I0-28080 816-0 | BOLT; BRKT | 5 | 9506- | ABCDE | M8X16 FLANGE | ||
| 70 | I9-09150 508-0 | WASHER; LirC, BRK M/CYL | 2 | 9009-9411 | ABCD | M8 | ||
| 25 | I0-91180 208-0 | NUT; FLANGE MTG BRKT TO BODY | 4 | 9009- | ABCDE | M8 FLANGE | ||
| 4 | I8-94244 439-0 | BUSHING; BRAKE PEDAL | 2 | 9409- | ABCDE | |||
| 70 | I0-91510 508-0 | WASHER; LirC, BRK M/CYL | 2 | 9009- | ABCD | M8 | ||
| 1 | I8-97040 569-3 | BRACKET ASM; PEDAL | 1 | 0612- | E | |||
| 19 | I0-50140 820-0 | BOLT; BRKT | 5 | 9409-9505 | ABCD | M8X20 W/LK&PL WASHER |
