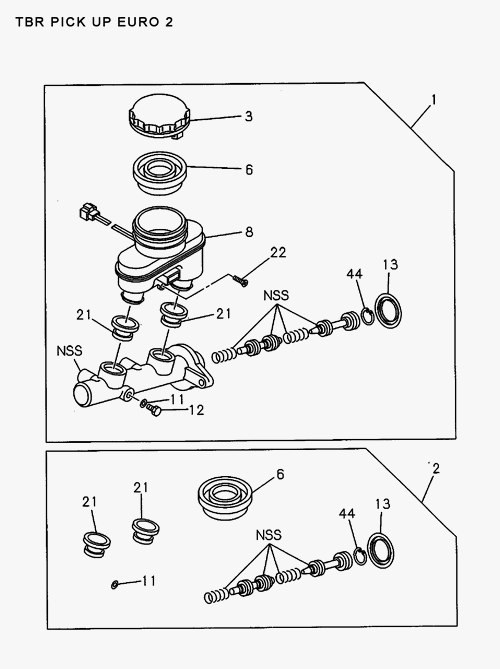

3-30 | BRAKE MASTER CYLINDER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 12 | I8-94107 674-0 | BOLT; STOPPER, BRK M/CYL | 1 | 9009- | ABCDE | M6X13 | ||
| 11 | I8-94107 675-0 | GASKET; STOPPER BOLT TO BRK M/CYL BODY | 1 | 9009- | ABCDE | |||
| 1 | I6-94313 438-2 | CYLINDER ASM; BRK MASTER | 1 | 9009- | ABCDE | (IADG) | ||
| 21 | I8-94133 716-0 | GROMMET; BRK M/CYL | 2 | 9009- | ABCDE | |||
| 8 | I8-94478 836-1 | TANK; OIL, M/CYL | 1 | 9009- | ABCDE | |||
| 2 | I8-97071 803-0 | REPAIR KIT; BRAKE, M/CYL | 1 | 9009- | ABCDE | |||
| 1 | I6-97105 012-1 | PUMP ASM; WATER, W/GASKET | 1 | 9602- | BC | (IADG) | ||
| 3 | I8-94124 872-0 | CAP; OIL TANK | 1 | 9009- | ABCDE | |||
| 44 | I9-09180 126-0 | RING; SNAP, M/CYL | 1 | 9009- | ABCDE | |||
| 22 | I8-94230 600-1 | SCREW; OIL TANK | 1 | 9009- | ABCDE | |||
| 6 | I8-94124 873-0 | DIAPHRAGM; BRK M/CYL | 1 | 9009- | ABCDE | |||
| 13 | I8-94132 833-0 | SEAL; DUST, BRK M/CYL TO M/VAC | 1 | 9009- | ABCDE | |||
| 1 | I8-94313 438-2 | CYLINDER ASM; BRK MASTER | 1 | 9009- | ABCDE |
