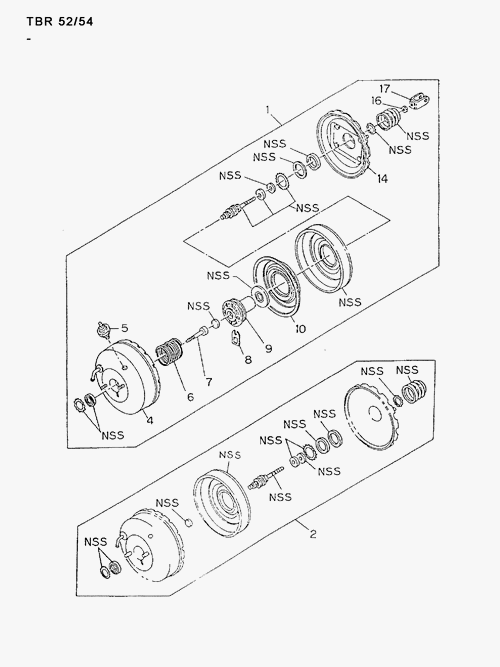

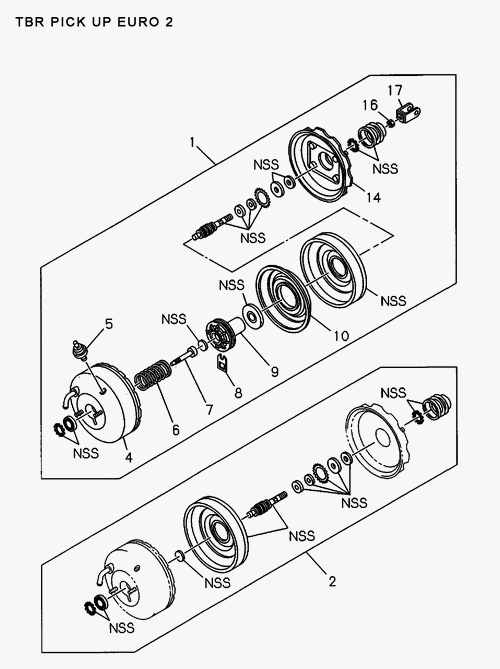

3-31 | BRAKE MASTER VAC AND BRAKE BOOSTER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 10 | I8-94124 129-1 | PLATE; DIAPH, M/VAC | 1 | 9009- | ABCDE | 9" | ||
| 16 | I7-05110 010-A | NUT; VLV ROD, M/VAC | 1 | 9009- | ABCD | M10 FLANGE | ||
| 9 | I8-94454 461-0 | BODY; VALVE M/VAC | 1 | 9009- | ABCDE | |||
| 7 | I8-94122 139-0 | ROD; PUSH, M/VAC | 1 | 9009- | ABCDE | |||
| 5 | I8-94460 517-0 | SWITCH; VAC, M/VAC | 1 | 9009- | ABCDE | |||
| 1 | I8-97018 139-1 | MASTER VAC ASM; BRK | 1 | 9009- | ABCDE | |||
| 6 | I8-94123 118-0 | SPRING; M/VAC | 1 | 9009- | ABCDE | |||
| 16 | I0-91150 210-0 | NUT; VLV ROD, M/VAC | 1 | 9009-9306 | ABCD | M10 FLANGE | ||
| 17 | I8-94341 841-0 | CLEVIS; YOKE, M/VAC | 1 | 9009- | ABCDE | |||
| 14 | I8-94124 132-1 | SHELL; RR, M VAC | 1 | 9009- | ABCDE | |||
| 8 | I8-94123 120-0 | KEY; STOPPER, M/VAC | 1 | 9009- | ABCDE | |||
| 16 | I8-97096 430-0 | NUT; VLV ROD, M/VAC | 1 | 9307- | ABCDE | M10 FLANGE | ||
| 2 | I8-97018 976-0 | REPAIR KIT; M/VAC | 1 | 9009- | ABCDE | |||
| 16 | I0-91180 210-0 | NUT; VLV ROD, M/VAC | 1 | 9009-9306 | ABCD | M10 FLANGE | ||
| 16 | I7-05110 010-A | NUT; VLV ROD, M/VAC | 1 | 9009- | ABCD | M10 FLANGE | ||
| 4 | I8-94163 282-0 | SHELL; FRT. M/VAC | 1 | 9009- | ABCDE |
