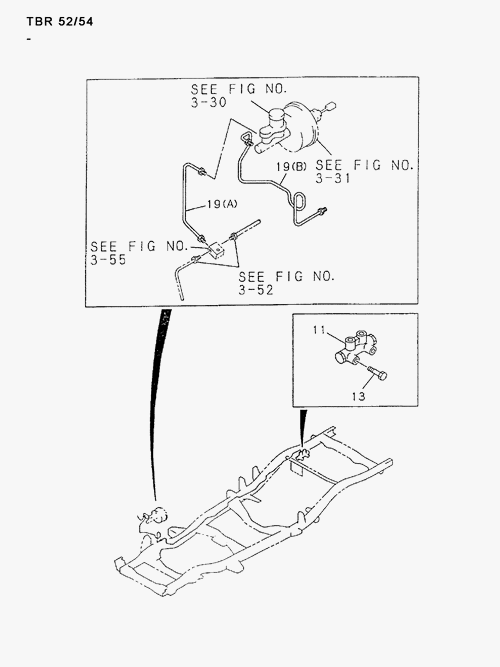

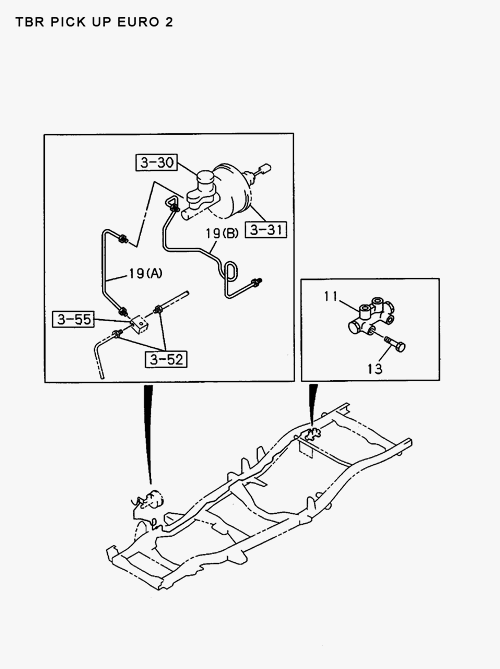

3-50 | BRAKE PIPING; OIL,MASTER CYLINDER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 13 | I0-50740 845-0 | BOLT; VLV TO BRKT | 2 | 9009- | ABCDE | M8X45 W/LK WASHER | ||
| 13 | I0-50040 845-0 | BOLT; VLV TO BRKT | 2 | 9009-9412 | ABCDE | M8X45 W/LK WASHER | ||
| 11 | I8-97012 557-0 | VALVE; BRAKE CONT | 1 | 9009- | ABCDE | |||
| 13 | I0-28050 850-0 | BOLT; VLV TO BRKT | 2 | 9501- | ABCDE | M8X50 FLANGE | ||
| 19 | I8-94366 541-1 | PIPE; BRK, M CYL TO UNION | 1 | 9009- | ABCDE | (A) | ||
| 13 | I0-28080 850-0 | BOLT; VLV TO BRKT | 2 | 9501- | ABCDE | M8X50 FLANGE | ||
| 19 | I8-94366 544-1 | PIPE; BRK, M CYL TO UNION | 1 | 9009- | ABCDE | (B) |
