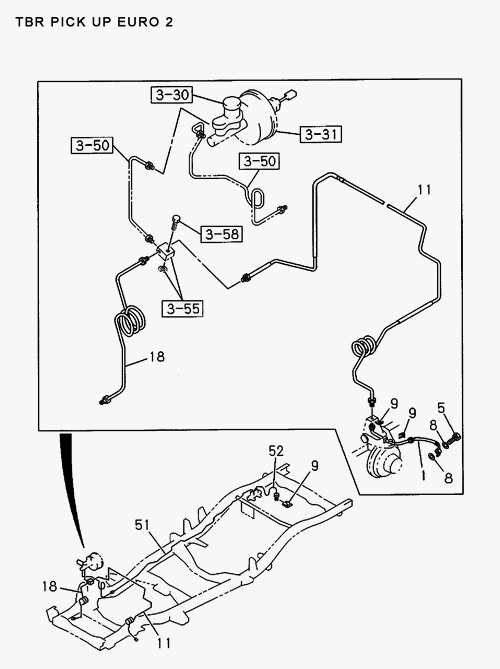

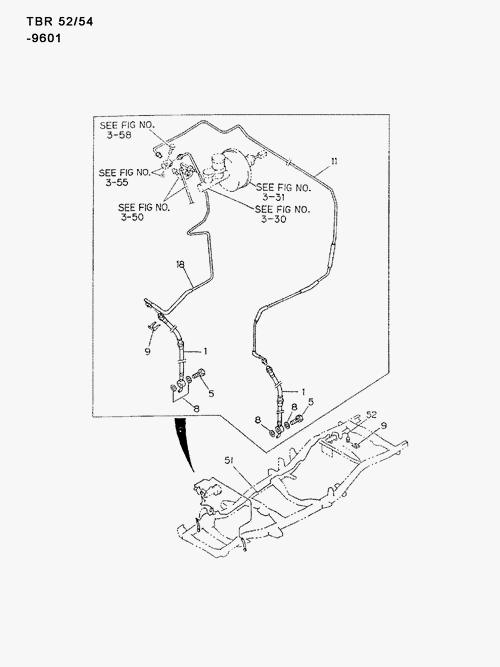

3-52 | BRAKE PIPING; OIL,FRONT
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 9 | I8-97162 347-0 | CLIP; FLEX HOSE, FRT BRK | 5 | 9009- | ABCDE | |||
| 18 | I2-97132 022-0 | PIPE; OIL, UNSON TO FRT FLEX HOSE | 1 | 9602- | ABCDE | |||
| 18 | I8-97032 708-0 | PIPE; OIL, UNSON TO FRT FLEX HOSE | 1 | 9009-9601 | ABCD | |||
| 51 | I8-94366 546-0 | PIPE; BRK | 1 | 9009- | ABCDE | |||
| 5 | I5-09675 017-0 | BOLT; EYE, FLEX HOSE, FRT BRK | 2 | 9009- | ABCDE | M10X22 | ||
| 1 | I8-97032 076-1 | HOSE; FLEX, FRT BRK | 2 | 9009- | ABCDE | |||
| 11 | I8-97032 709-0 | PIPE; BRK, UNION TO FLEX HOSE, FRT | 1 | 9009-9601 | ABCD | |||
| 8 | I9-09571 410-0 | GASKET; FLEX HOSE, FRT BRK | 4 | 9009- | ABCDE | ID=10.2 OD=16. 0 | ||
| 52 | I8-94372 176-0 | PIPE; BRK | 1 | 9009- | ABCDE | |||
| 11 | I8-97123 559-A | PIPE; BRK, UNION TO FLEX HOSE, FRT | 1 | 9602- | ABCDE |
