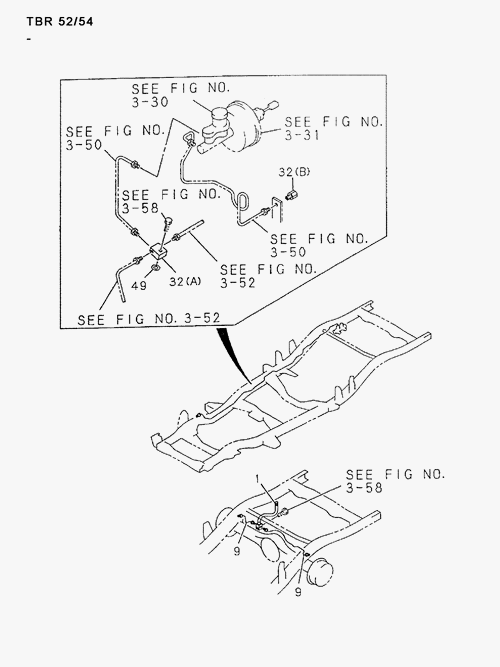

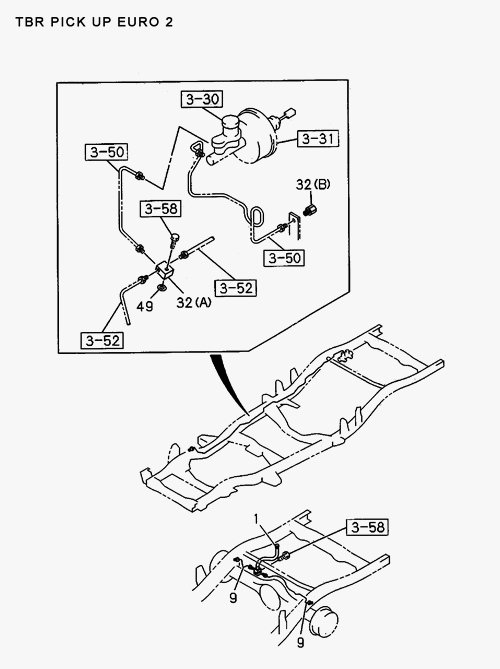

3-55 | BRAKE PIPING; OIL,REAR
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 32 | I0-92107 005-0 | UNION; OIL PIPE | 1 | 9009- | ABCDE | (B) M10 | ||
| 32 | I9-09227 005-0 | UNION; OIL PIPE | 1 | 9009- | ABCDE | (B) M10 | ||
| 9 | I8-94361 996-0 | PIPE; BRK, RR AXLE | 1 | 9009- | ABCDE | |||
| 32 | I8-94406 895-0 | UNION; OIL PIPE | 1 | 9009- | ABCDE | (A) | ||
| 1 | I8-97038 298-0 | HOSE; FLEX, RR BRK | 1 | 9009- | ABCDE | |||
| 9 | I8-94361 997-0 | PIPE; BRK, RR AXLE | 1 | 9009- | ABCDE | |||
| 32 | I8-98008 113-0 | UNION; OIL PIPE | 1 | 9009- | ABCDE | (A) | ||
| 49 | I8-94312 733-0 | WASHER UNION; OIL PIPE | 1 | 9009- | ABCDE | ID=8. 2 |
