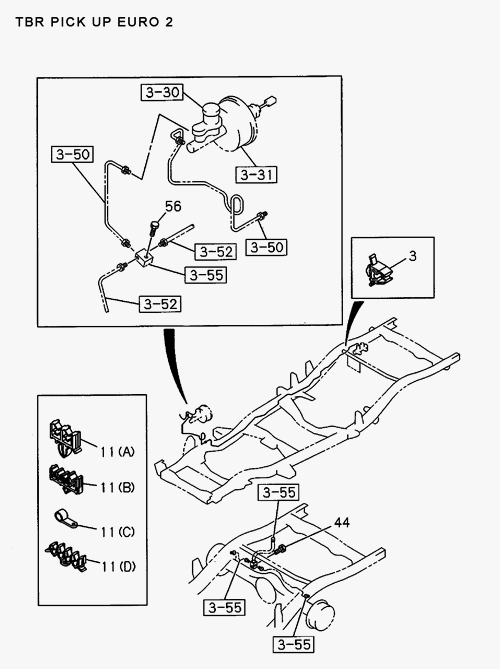

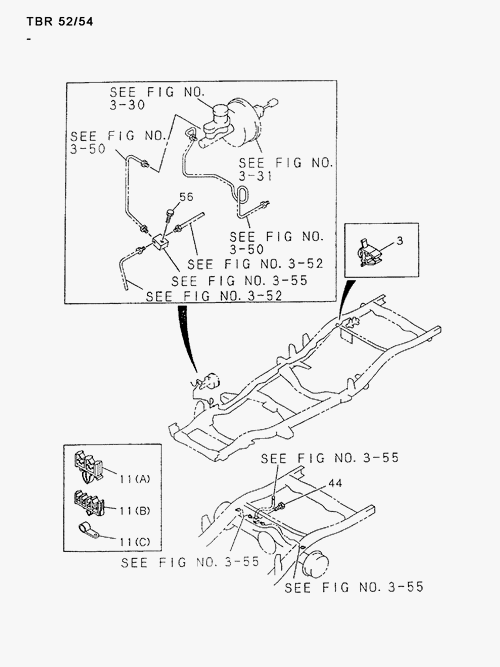

3-58 | FIXING PARTS; OIL PIPING
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 44 | I0-28650 830-0 | BOLT; CLIP TO FRAME | 1 | 9501- | ABCDE | M8X30 FLANGE | ||
| 11 | I8-94455 381-0 | CLIP; OIL PIPE | 3 | 9009- | ABCDE | H=10.5 | ||
| 11 | I9-09524 562-0 | CLIP; OIL PIPE | 1 | 9009- | ABCDE | |||
| 44 | I0-50140 830-0 | BOLT; CLIP TO FRAME | 1 | 9205-9412 | ABCD | M8X30 W/LK&PL WASHER | ||
| 56 | I0-50640 630-0 | BOLT; CLIP | 1 | 9205- | ABCD | M6X30 W/LK&PL WASHER | ||
| 44 | I0-50640 830-0 | BOLT; CLIP TO FRAME | 1 | 9205- | ABCD | M8X30 W/LK&PL WASHER | ||
| 3 | I8-94222 877-1 | CLIP; BRAKE PIPE | 2 | 9009- | ABCDE | H=28. 8 | ||
| 56 | I0-28650 635-0 | BOLT; CLIP | 1 | 0612- | E | M6X35 FLANGE | ||
| 56 | I0-50140 630-0 | BOLT; CLIP | 1 | 9205- | ABCD | M6X30 W/LK&PL WASHER | ||
| 11 | I8-94113 470-0 | CLIP; OIL PIPE | 3 | 9009- | ABCDE | |||
| 44 | I0-28680 830-0 | BOLT; CLIP TO FRAME | 1 | 9501- | ABCDE | M8X30 FLANGE |
