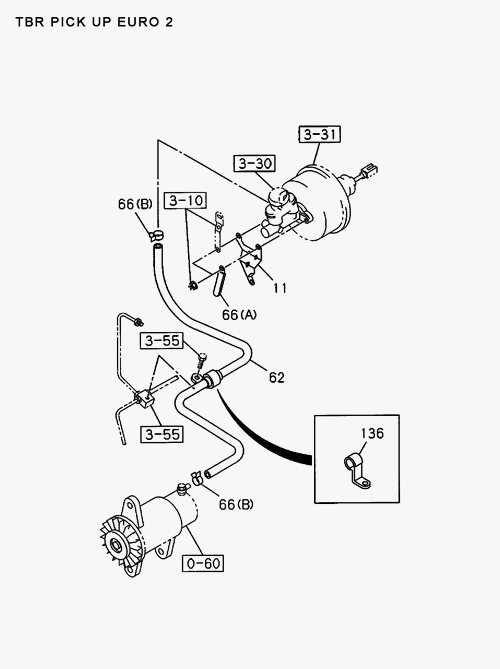

3-60 | BRAKE PIPING; VACUUM
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 62 | I0-08358 300-0 | HOSE; VAC, M/VAC TO VAC PUMP | 1 | 9602- | ABCD | L=600 SERVICED BY L=3000 | ||
| 1 | I0-08358 300-0 | HOSE; VAC, M/VAC TO VAC PIPE | 1 | 9009-9601 | ABCD | L=460 SERVICED BY L=3000 | ||
| 174 | I8-94415 087-0 | CLIP; VAC HOSE | 1 | 9602- | ABCD | DELETION | ||
| 72 | I0-08358 100-0 | HOSE; VAC, VAC PUMP TO PIPE | 1 | 9009- | ABCD | L=400 SERVICED BY L=3000 | ||
| 1 | I0-08358 100-0 | HOSE; VAC, M/VAC TO VAC PIPE | 1 | 9009- | ABCD | L=460 SERVICED BY L=3000 | ||
| 33 | I1-09700 868-0 | CLIP; VAC PIPE | 1 | 9009-9601 | ABCD | ID=11 | ||
| 72 | I0-08358 300-0 | HOSE; VAC, VAC PUMP TO PIPE | 1 | 9009-9601 | ABCD | L=400 SERVICED BY L=3000 | ||
| 66 | I8-97173 222-0 | CLIP; VAC HOSE, M/VAC | 4 | 9009-9601 | ABCDE | (B) _ ID=16 | ||
| 66 | I8-94329 956-0 | CLIP; VAC HOSE, M/VAC | 1 | 9009- | ABCDE | (A) L=91 ID=8. 5 | ||
| 11 | I8-98046 523-0 | BRACKET; CLIP | 1 | 0612- | E | |||
| 62 | I8-98019 828-1 | HOSE; VAC, M/VAC TO VAC PUMP | 1 | 0612- | E | |||
| 30 | I0-50640 816-0 | BOLT; CLIP, VAC PIPE | 1 | 9205- | ABCD | M8X16 W/LK&PL WASHER | ||
| 62 | I0-08358 100-0 | HOSE; VAC, M/VAC TO VAC PUMP | 1 | 9602- | ABCD | L=600 SERVICED BY L=3000 | ||
| 96 | I8-94366 547-0 | PIPE; VAC, M VAC TO VAC PUMP | 1 | 9009-9601 | ABCD | DELETION | ||
| 30 | I0-50140 816-0 | BOLT; CLIP, VAC PIPE | 1 | 9205-9601 | ABCD | M8X16 W/LK&PL WASHER | ||
| 66 | I8-98008 098-0 | CLIP; VAC HOSE, M/VAC | 4 | 9009- | ABCDE | (B) _ ID=16 |
