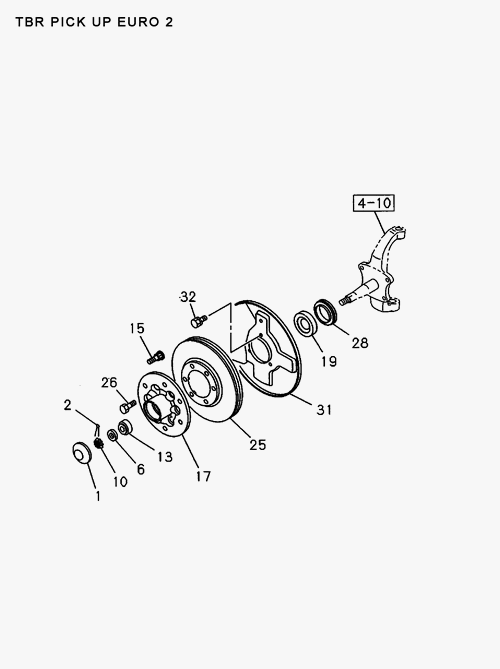

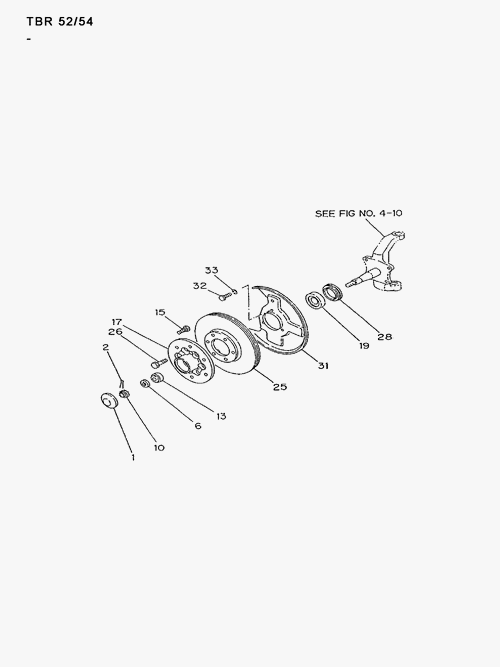

4-11 | FRONT HUB AND DRUM OR ROTOR
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I9-08114 025-0 | PIN; SPLIT, HUB TO AXLE SHAFT | 2 | 9009- | ABCDE | L=25 | ||
| 33 | I9-09150 508-0 | WASHER; LK, DRUM COVER | 6 | 9009-9411 | ABCD | M8 | ||
| 25 | I8-97012 574-A | ROTOR; DISC BRAKE, FRT | 2 | 9009- | ABCDE | |||
| 32 | I8-97025 916-0 | BOLT; DUST COVER TO KNUCKLE | 6 | 9412- | ABCDE | M8X10 W/LK WASHER | ||
| 1 | I8-06696 899-0 | CAR; HUB, FRT AXLE | 2 | 9009- | ABCDE | |||
| 31 | I8-94367 555-0 | COVER; DUST FRT BRAKE | 1 | 9009- | ABCDE | |||
| 17 | I8-94362 961-0 | HUB; FRT AXLE | 2 | 9009- | ABCDE | |||
| 6 | I8-94151 759-0 | WASHER; LK; FRT HUB | 2 | 9009- | ABCDE | |||
| 19 | I8-94245 153-0 | BEARING; HUB INNER, FRT AXLE | 2 | 9009- | ABCDE | NTN | ||
| 15 | I8-97944 564-0 | PIN; WHEEL, FRT AXLE | 8 | 9009- | ABCDE | |||
| 15 | I5-87411 890-0 | PIN WHEEL SET FR R/L,PT | 8 | 0908- | ABCDE | |||
| 28 | I8-94326 440-0 | SEAL; OIL, FRT HUB | 2 | 9009- | ABCDE | |||
| 13 | I8-94245 139-0 | BEARING HUB OTR FRT | 2 | 0612- | A | |||
| 33 | I0-91510 508-0 | WASHER; LK, DRUM COVER | 6 | 9009- | ABCD | M8 | ||
| 31 | I8-94367 554-0 | COVER; DUST FRT BRAKE | 1 | 9009- | ABCDE | |||
| 26 | I8-97019 655-0 | BOLT; BRK, DISC TO HUB | 8 | 9009- | ABCDE | |||
| 13 | I8-94245 139-A | BEARING HUB OTR FRT | 2 | 0612- | A | IADG) | ||
| 32 | I8-98029 928-0 | BOLT; DUST COVER TO KNUCKLE | 6 | 9412- | ABCDE | M8X10 W/LK WASHER | ||
| 10 | I8-08967 950-3 | NUT; FRT HUB BRG | 2 | 9009- | ABCDE | |||
| 28 | I6-94326 440-0 | SEAL; OIL, FRT HUB | 2 | 9009- | ABCDE | (IADG) | ||
| 2 | I0-81124 025-0 | PIN; SPLIT, HUB TO AXLE SHAFT | 2 | 9009- | ABCDE | L=25 | ||
| 15 | I8-97213 871-0 | PIN; WHEEL, FRT AXLE | 8 | 9009- | ABCDE |
