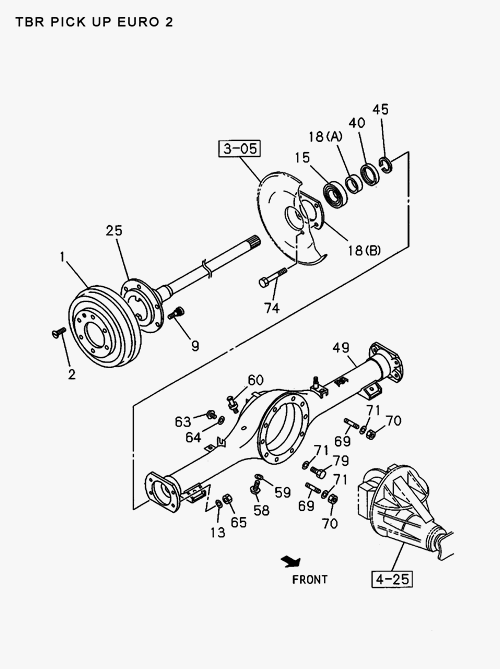

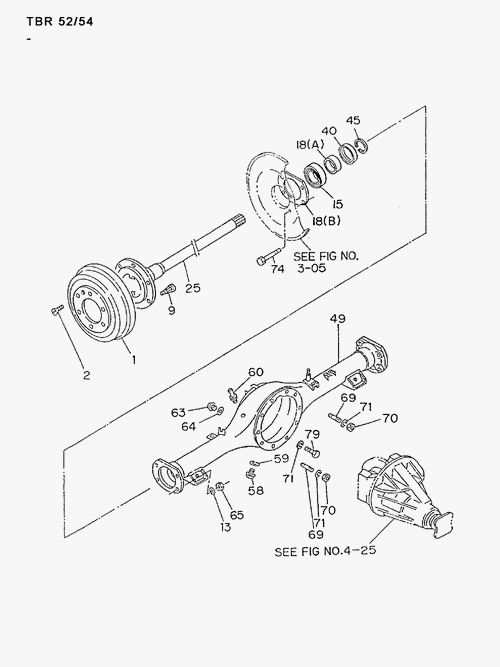

4-20 | REAR AXLE CASE AND SHAFT
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 15 | I8-94362 510-1 | RETAINER; RR AXLE | 2 | 0612- | ABCDE | |||
| 59 | I9-09571 420-0 | GASKET; DRAIN PLUG | 1 | 9009- | ABCDE | ID=20.5 OD=28. 0 | ||
| 1 | I8-94367 495-0 | DRUM; BRK, RR | 2 | 9009- | ABCDE | |||
| 79 | I8-98022 411-0 | BOLT; COVER TO CASE | 2 | 9603- | ABCDE | M8X30 W/LK WASHER | ||
| 13 | I0-91510 512-0 | WASHER; LK, BRG HOLDER TO CASE | 8 | 9009- | ABCDE | ID=12 | ||
| 9 | I5-87411 899-0 | PIN WHEEL SET RR R/L,PT | 8 | 0908- | ABCDE | |||
| 2 | I1-09981 447-1 | BOLT; BRK DRUM | 2 | 9009- | ABCDE | M6X16 | ||
| 65 | I0-91110 512-0 | NUT | 8 | 9009- | ABCDE | M12 | ||
| 45 | I8-94454 098-0 | RING; RR AXLE BRG | 2 | 9009- | ABCDE | |||
| 65 | I7-05012 010-A | NUT | 8 | 9009- | ABCDE | M12 | ||
| 79 | I8-98022 412-0 | BOLT; COVER TO CASE | 2 | 9603- | ABCDE | M8X90 W/LK WASHER | ||
| 64 | I8-94462 734-0 | GASKET; OIL FILLER, AXLE CASE | 1 | 9009- | ABCDE | |||
| 18 | I8-94360 869-0 | RETAINER; RR AXLE | 2 | 9009- | ABCDE | |||
| 69 | I5-09300 038-0 | STUD; AXLE CASE | 2 | 9009- | ABCD | M8X30 L=41 | ||
| 40 | I8-94178 277-0 | SEAL; OIL, REAR AXLE | 2 | 9009- | ABCDE | |||
| 58 | I9-09662 004-0 | PLUG; DRAIN, AXLE CASE | 1 | 9009- | ABCDE | |||
| 69 | I5-09300 037-0 | STUD; AXLE CASE | 6 | 9009-9602 | ABCDE | M8X25 L=36 | ||
| 15 | I8-94362 510-A | RETAINER; RR AXLE | 2 | 0612- | ABCDE | IADG) | ||
| 70 | I5-09400 020-0 | NUT; CARRIER | 8 | 9009-9602 | ABCDE | M8 | ||
| 71 | I0-91510 808-0 | WASHER; LK, FINAL DRIVE SETTING | 10 | 9009- | ABCDE | ID=8 | ||
| 2 | I0-36410 616-0 | BOLT; BRK DRUM | 2 | 9009- | ABCDE | M6X16 | ||
| 18 | I2-94173 327-2 | RETAINER; RR AXLE | 2 | 9009- | ABCDE | |||
| 9 | I8-97213 870-0 | PIN; WHEEL, RR AXLE | 8 | 9009- | ABCDE | |||
| 9 | I8-97944 831-0 | PIN; WHEEL, RR AXLE | 8 | 9009- | ABCDE | |||
| 79 | I8-97093 664-1 | BOLT; COVER TO CASE | 4 | 9603- | ABCDE | M8X25 W/LK WASHER | ||
| 18 | I8-94173 327-2 | RETAINER; RR AXLE | 2 | 9009- | ABCDE | |||
| 79 | I8-97093 665-1 | BOLT; COVER TO CASE | 2 | 9603- | ABCDE | M8X30 W/LK WASHER | ||
| 79 | I8-98022 410-0 | BOLT; COVER TO CASE | 4 | 9603- | ABCDE | M8X25 W/LK WASHER | ||
| 74 | I8-94362 509-0 | BOLT; RR BRK ASM SETTING | 8 | 9009- | ABCDE | M12X63 REAMER | ||
| 49 | I8-94360 867-5 | CASE; RR AXLE | 1 | 9009- | ABCDE | |||
| 60 | I8-97383 656-0 | BREATHER; RR AXLE CASE | 1 | 9412- | ABCD | L=22 | ||
| 60 | I8-98006 960-0 | BREATHER; RR AXLE CASE | 1 | 0612- | E | L=29 | ||
| 40 | I6-94178 277-0 | OIL SEAL RR HUB TBR54 | 2 | 0908- | ABCDE | (IADG) | ||
| 71 | I9-09150 808-0 | WASHER; LK, FINAL DRIVE SETTING | 10 | 9009-9602 | ABCDE | ID=8 | ||
| 25 | I8-94360 868-3 | SHAFT; AXLE, RR | 2 | 9009- | ABCDE | |||
| 65 | I9-99110 512-0 | NUT | 8 | 9009- | ABCDE | M12 | ||
| 63 | I9-09662 005-0 | PLUG; OIL FILLER, AXLE CASE | 1 | 9009- | ABCDE | |||
| 79 | I9-01065 890-0 | BOLT; COVER TO CASE | 2 | 9009-9602 | ABCD | M8X90 | ||
| 74 | I8-94362 509-1 | BOLT; RR BRK ASM SETTING | 8 | 9009- | ABCDE | M12X63 REAMER | ||
| 79 | I8-97093 666-1 | BOLT; COVER TO CASE | 2 | 9603- | ABCDE | M8X90 W/LK WASHER |
