4-30 | STEERING WHEEL AND COWL
PANTHER
PICKUP

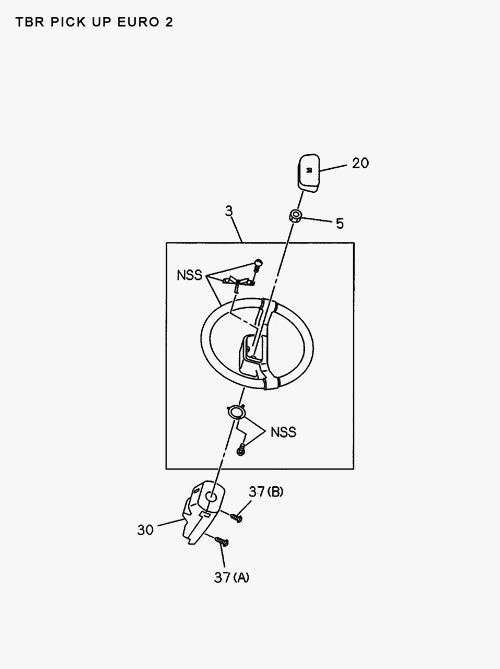

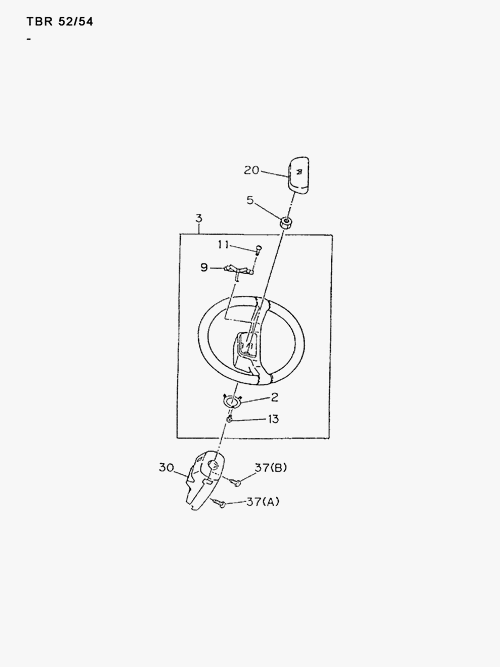

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-94478 151-0 | RING; HORN CONTACT | 1 | 9009-9601 | ABCD | |||
| 30 | I8-97000 874-0 | COWL; STEERING | 1 | 9009-9408 | ABCD | GRAY | ||
| 13 | I9-07076 310-0 | SCREW; CONTACT RING | 3 | 9009-9601 | ABCD | M3X10 | ||
| 20 | I8-97151 127-1 | SHROUD; PAD STRG WHEEL | 1 | 9409-9601 | CD | INTERIOR COLOR BLACK(101) BLACK | ||
| 37 | I0-36210 412-0 | SCREW; STRG COWL UPR | 3 | 9009- | ABCDE | (B) M4X12 | ||
| 30 | I8-97151 125-0 | COWL; STEERING | 1 | 9602- | ABCDE | INTERIOR COLOR BLACK(101) BLACK | ||
| 5 | I8-94455 487-1 | NUT; STRG WHEEL TO SHAFT | 1 | 0612- | E | M12 W/TOOTH WASHER | ||
| 9 | I8-94472 111-1 | PLATE; HORN CONTACT | 1 | 9009-9601 | ABCD | |||
| 20 | I8-97151 127-1 | SHROUD; PAD STRG WHEEL | 1 | 9602- | ABCD | INTERIOR COLOR BLACK(101) BLACK | ||
| 11 | I8-94472 112-0 | SCREW; PLATE TO BUTTON | 2 | 9009-9601 | ABCD | |||
| 20 | I8-94439 345-1 | SHROUD; PAD STRG WHEEL | 1 | 9602- | ABCD | INTERIOR COLOR MUSHROOM(150) GRAY | ||
| 37 | I5-09981 053-0 | SCREW; STRG COWL UPR | 2 | 9009- | ABCDE | (A) M5X16 | ||
| 37 | I9-03900 412-0 | SCREW; STRG COWL UPR | 3 | 9009- | ABCDE | (B) M4X12 | ||
| 3 | I8-97151 126-0 | WHEEL; STRG | 1 | 9602- | ABCDE | INTERIOR COLOR BLACK(101) BLACK | ||
| 5 | I8-97077 994-0 | NUT; STRG WHEEL TO SHAFT | 1 | 9009- | ABCD | M12 W/TOOTH WASHER | ||
| 20 | I8-94439 345-1 | SHROUD; PAD STRG WHEEL | 1 | 9009-9408 | ABCD | GRAY | ||
| 3 | I8-94477 120-1 | WHEEL; STRG | 1 | 9009-9408 | ABCD | GRAY |
