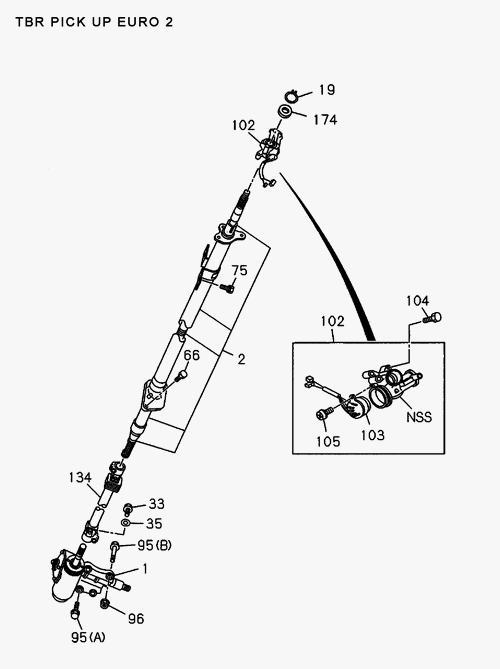

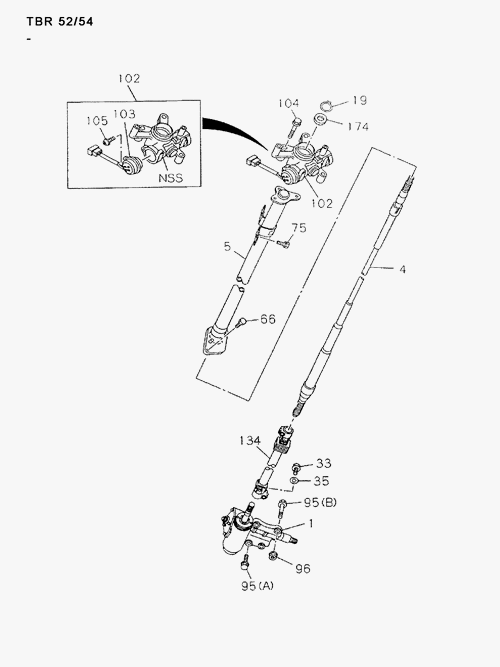

4-31 | STEERING COLUMN AND SHAFT
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 4 | I8-97019 913-0 | SHAFT; STRG | 1 | 9009-9210 | ABCD | EXC. POWER STEERING<N40> | ||
| 96 | I0-91150 210-0 | NUT; STRG UNIT | 3 | 9009- | ABCD | M10 FLANGE | ||
| 35 | I9-09150 508-0 | WASHER; LK, STRG SHAFT | 1 | 9009- | ABCDE | M8 | ||
| 104 | I0-28050 625-0 | BOLT; STRG LOCK TO COLUMN | 3 | 9205- | ABCD | M6X25 W/LK WASHER | ||
| 4 | I8-97085 266-0 | SHAFT; STRG | 1 | 9211- | ABCD | EXC. POWER STEERING<N40> | ||
| 33 | I8-97359 615-0 | BOLT; STRG SHAFT TO UNIT | 1 | 9009- | ABCDE | M8X30 | ||
| 134 | I8-97956 606-A | SHAFT; STEERING 2ND | 1 | 9801 | ABCD | EXC.POWER STEERING (N40) IND | ||
| 75 | I8-94331 747-1 | BOLT; STRG COLUMN | 2 | 9009- | ABCDE | M8X25 | ||
| 4 | I8-97085 266-A | SHAFT; STRG | 1 | 9211- | ABCD | EXC. POWER STEERING<N40> | ||
| 134 | I8-97562 646-A | SHAFT; STEERING 2ND | 1 | 0612- | E | |||
| 95 | I0-28091 025-0 | BOLT; STRG UNIT | 1 | 9009-9204 | ABCDE | M10X25 | ||
| 96 | I0-91180 210-0 | NUT; STRG UNIT | 3 | 9009- | ABCDE | M10 FLANGE | ||
| 95 | I8-94371 561-2 | BOLT; STRG UNIT | 3 | 9009- | ABCDE | M10X100 | ||
| 33 | I8-94247 692-0 | BOLT; STRG SHAFT TO UNIT | 1 | 9009- | ABCDE | M8X30 | ||
| 96 | I7-05110 010-A | NUT; STRG UNIT | 3 | 9009- | ABCD | M10 FLANGE | ||
| 2 | I8-97562 645-0 | SHAFT; STRG | 1 | 0612- | E | POWER STEERING<N40> | ||
| 103 | I8-97020 997-0 | SWITCH; IGNITION | 1 | 9009- | ABCDE | |||
| 4 | I8-97019 914-0 | SHAFT; STRG | 1 | 9009-9210 | ABCD | POWER STEERING<N40> | ||
| 4 | I8-97085 267-1 | SHAFT; STRG | 1 | 9211- | ABCD | POWER STEERING<N40> | ||
| 19 | I9-09180 017-0 | RING; SNAP, STRG SHAFT | 1 | 9009- | ABCDE | |||
| 105 | I9-03910 412-0 | SCREW; IGN SW | 1 | 9009- | ABCDE | M4X12 W/LK WASHER | ||
| 1 | I8-97012 625-0 | STEERING UNIT | 1 | 9009-9601 | ABCD | EXC. POWER STEERING<N40> | ||
| 102 | I8-97171 892-1 | LOCK ASM; STRG | 1 | 9009- | ABCDE | |||
| 104 | I8-97122 790-0 | BOLT; STRG LOCK TO COLUMN | 3 | 9412- | ABCDE | M6X25 W/LK8PL WASHER | ||
| 1 | I8-94369 445-7 | STEERING UNIT | 1 | 9009- | ABCDE | POWER STEERING<N40> SEE FIG-NO 4-40 FOR COMPONENT. | ||
| 35 | I0-91510 508-0 | WASHER; LK, STRG SHAFT | 1 | 9009- | ABCDE | M8 | ||
| 5 | I8-97019 912-0 | COLUMN; STRG | 1 | 9009- | ABCD | |||
| 104 | I0-28080 625-0 | BOLT; STRG LOCK TO COLUMN | 3 | 9205-9411 | ABCD | M6X25 W/LK WASHER | ||
| 174 | I8-97176 323-0 | RUBBER; CUSHION, STRG COLUMN | 1 | 9009- | ABCDE | |||
| 95 | I0-28061 025-0 | BOLT; STRG UNIT | 1 | 9009- | ABCDE | M10X25 | ||
| 66 | I8-94331 747-1 | BOLT; STRG COLUMN | 2 | 9009- | ABCDE | M8X25 | ||
| 134 | I8-97956 605-A | SHAFT; STEERING 2ND | 1 | 9801 | ABCD | POWER STEERING (N40) IND | ||
| 1 | I8-94369 445-6 | STEERING UNIT | 1 | 9009- | ABCDE | POWER STEERING<N40> SEE FIG-NO 4-40 FOR COMPONENT. | ||
| 96 | I7-05110 010-A | NUT; STRG UNIT | 3 | 9009- | ABCDE | M10 FLANGE |
