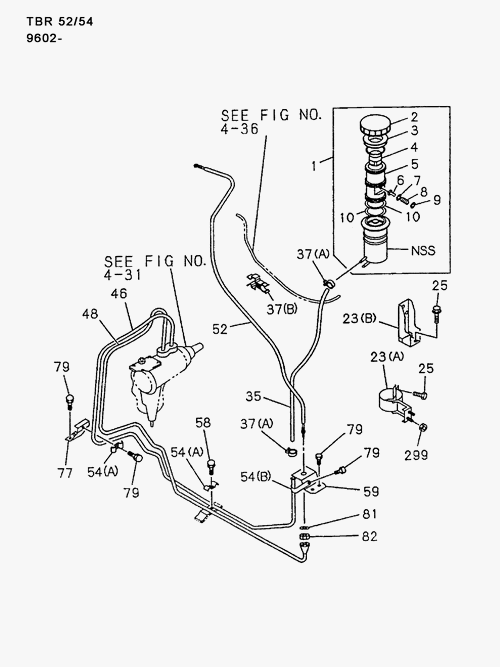

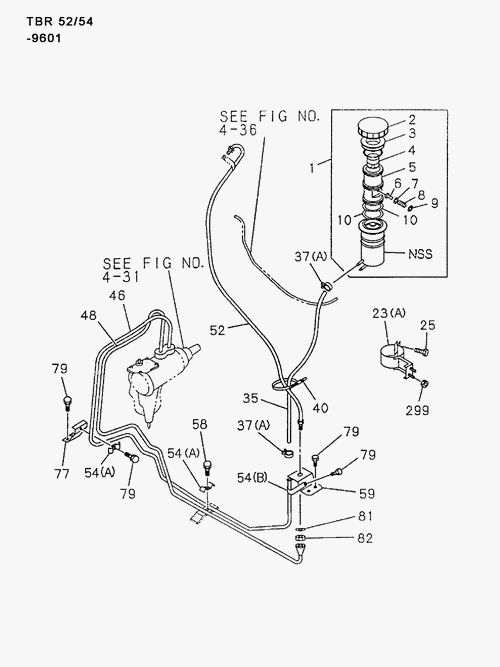

4-35 | POWER STEERING CONTROL; CHASSIS SIDE
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 77 | I8-94369 409-0 | BRACKET; POWER STEERING HOSE | 1 | 9009-9501 | ABCD | POWER STEERING<N40> DELETION | ||
| 54 | I8-94222 795-1 | CLIP; OIL PIPE | 2 | 9009- | ABCDE | POWER STEERING<N40> (A) | ||
| 5 | I8-97351 631-0 | STRAINER; OIL TANK, P/S | 1 | 0612- | E | POWER STEERING<N40> | ||
| 82 | I8-94370 339-0 | NUT; FLEX HOSE, P/S | 1 | 9009- | ABCD | POWER STEERING<N40> M16 H=10.0 | ||
| 35 | I0-19809 300-0 | HOSE; RETURN, P/S TANK | 1 | 9009- | ABCD | POWER STEERING<N40> L=550 SERVICED BY 1=3000 | ||
| 9 | I5-21219 006-0 | COVER; SPR, OIL TANK, P/S | 1 | 9009- | ABCD | POWER STEERING<N40> | ||
| 23 | I8-94325 862-1 | BRACKET; OIL TANK, P/S | 1 | 9009- | ABCDE | POWER STEERING<N40> (A) | ||
| 37 | I8-97173 222-0 | CLIP; HOSE, P/S | 2 | 9009- | ABCDE | POWER STEERING<N40> (A) ID=16 | ||
| 5 | I8-94405 458-1 | STRAINER; OIL TANK, P/S | 1 | 9009- | ABCD | POWER STEERING<N40> | ||
| 37 | I8-98008 098-0 | CLIP; HOSE, P/S | 2 | 9009- | ABCDE | POWER STEERING<N40> (A) ID=16 | ||
| 25 | I0-28480 616-0 | BOLT; OIL TANK BRKT | 1 | 9009-9204 | ABCDE | POWER STEERING<N40> M6X16 | ||
| 3 | I8-94246 510-0 | GASKET; OIL TANK, P/S | 1 | 9009- | ABCDE | POWER STEERING<N40> | ||
| 82 | I0-91111 516-0 | NUT; FLEX HOSE, P/S | 1 | 0612- | E | M16 | ||
| 40 | I5-09707 031-1 | CLIP; BAND | 1 | 9009-9601 | ABCD | POWER STEERING<N40> DELETION L=140 | ||
| 35 | I8-94329 684-4 | HOSE; RETURN, P/S TANK | 1 | 0612- | E | |||
| 52 | I8-94120 499-2 | HOSE; FLEX, P/S CONT VLV | 1 | 9009-9601 | ABCD | POWER STEERING<N40> | ||
| 4 | I8-94204 441-1 | FILTER; OIL TANK, P/S | 1 | 9009- | ABCDE | POWER STEERING<N40> | ||
| 82 | I9-99111 416-0 | NUT; FLEX HOSE, P/S | 1 | 9009- | ABCD | POWER STEERING<N40> M16 H=10.0 | ||
| 8 | I5-09580 088-1 | SPRING; OIL TANK, P/S | 1 | 9009- | ABCD | POWER STEERING<N40> | ||
| 1 | I8-94105 282-8 | TANK ASM; OIL, P/S | 1 | 9009- | ABCDE | POWER STEERING<N40> | ||
| 23 | I8-97143 318-0 | BRACKET; OIL TANK, P/S | 1 | 9602- | ABCDE | POWER STEERING<N40> (B) | ||
| 81 | I0-91541 216-0 | WASHER; LK, FLEX HOSE | 1 | 9009- | ABCDE | POWER STEERING<N40> ID=16 | ||
| 52 | I8-97255 065-2 | HOSE; FLEX, P/S CONT VLV | 1 | 0612- | E | |||
| 52 | I8-97212 691-1 | HOSE; FLEX, P/S CONT VLV | 1 | 9602- | ABCD | POWER STEERING<N40> | ||
| 48 | I8-97012 057-0 | PIPE; OIL, FLEX HOSE TO STRG UNIT | 1 | 9009- | ABCD | POWER STEERING<N40> | ||
| 59 | I8-97012 056-0 | BRACKET; CLIP, OIL PIPE | 1 | 9009- | ABCD | POWER STEERING<N40> | ||
| 37 | I5-09707 054-0 | CLIP; HOSE, P/S | 1 | 0612- | E | (B) L=170 | ||
| 2 | I5-21241 001-2 | CAP; OIL TANK, P/S | 1 | 9009- | ABCDE | POWER STEERING<N40> | ||
| 46 | I8-97012 058-0 | PIPE; OIL, P S UNIT TO OIL TANK | 1 | 9009- | ABCD | POWER STEERING<N40> | ||
| 299 | I5-09440 004-0 | NUT; OIL TANK BRKT | 2 | 9009- | ABCDE | POWER STEERING<N40> M6 FLANGE | ||
| 58 | I0-28480 616-0 | BOLT; CLIP | 2 | 9009-9204 | ABCDE | POWER STEERING<N40> M6X16 | ||
| 10 | I8-94405 457-0 | SEAL; OIL TANK, P/S | 2 | 9009- | ABCDE | POWER STEERING<N40> | ||
| 48 | I8-97149 345-A | PIPE; OIL, FLEX HOSE TO STRG UNIT | 1 | 0612- | E | |||
| 81 | I9-09151 216-0 | WASHER; LK, FLEX HOSE | 1 | 9009- | ABCDE | POWER STEERING<N40> ID=16 | ||
| 7 | I5-21219 007-0 | RING; GASKET, OIL TANK, P/S | 1 | 9009- | ABCD | POWER STEERING<N40> | ||
| 299 | I8-98049 362-0 | NUT; OIL TANK BRKT | 2 | 9009- | ABCDE | POWER STEERING<N40> M6 FLANGE | ||
| 6 | I5-21219 005-0 | HOLDER; GASKET, OIL TANK, P/S | 1 | 9009- | ABCD | POWER STEERING<N40> | ||
| 54 | I8-94296 897-1 | CLIP; OIL PIPE | 1 | 9009- | ABCDE | POWER STEERING<N40> (B) | ||
| 77 | I8-97120 709-A | BRACKET; POWER STEERING HOSE | 1 | 9009-9501 | ABCDE | POWER STEERING<N40> DELETION | ||
| 59 | I8-97148 544-A | BRACKET; CLIP, OIL PIPE | 1 | 0612- | E | |||
| 79 | I0-28480 616-0 | BOLT; BRKT | 6 | 9009-9204 | ABCDE | POWER STEERING<N40> M6X16 | ||
| 37 | I8-94317 707-0 | CLIP; HOSE, P/S | 1 | 9602- | ABCD | POWER STEERING<N40> D=14.5 /22 |
