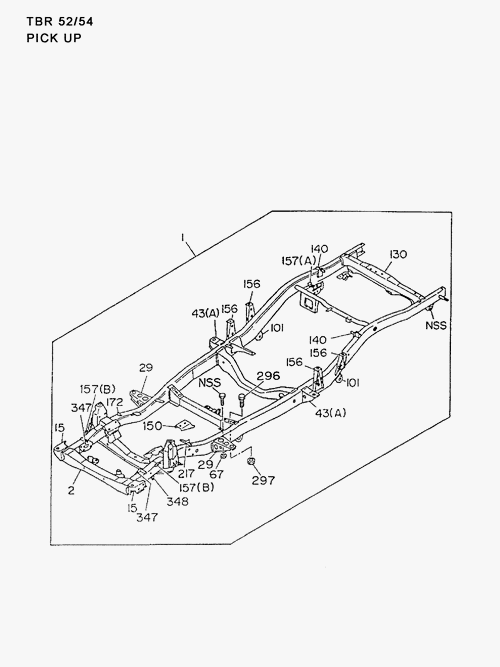

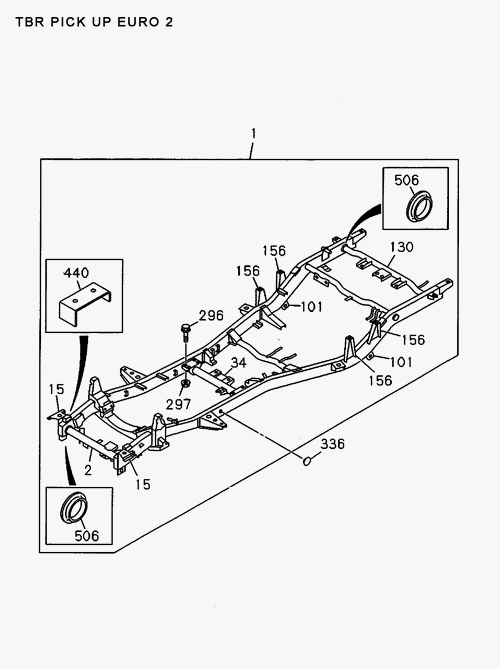

5-01 | FRAME AND OTHER PARTS
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 15 | I8-94366 651-0 | BRACKET; BODY MTG, FRT | 1 | 9009- | ABCDE | |||
| 34 | I8-97133 841-3 | MEMBER CROSS 3RD | 2 | 0612- | E | |||
| 296 | I0-28281 025-0 | BOLT; 3RD C/MBR | 8 | 9009- | ABCDE | M10X25 FLANGE | ||
| 217 | I8-94370 494-0 | BRACKET; HELPER RUBBER, RR SPRING | 2 | 9009- | ABCD | DELETION | ||
| 506 | I8-94372 034-A | REINFORCEMENT; C/MBR | 4 | 0612- | E | |||
| 156 | I8-94370 517-A | BRACKET; RR BODY MTG | 2 | 9009- | AB E | |||
| 130 | I8-94366 636-1 | MEMBER; CROSS, END | 1 | 9009- | ABCD | DELETION | ||
| 43 | I8-97010 843-0 | BRACKET; CAB MTG. RR | 2 | 9602- | CD | (D) DELETION | ||
| 43 | I8-97010 848-0 | BRACKET; CAB MTG. RR | 1 | 9602- | CD | (E) DELETION | ||
| 15 | I8-94366 652-0 | BRACKET; BODY MTG, FRT | 1 | 9009- | ABCDE | |||
| 43 | I8-97010 848-0 | BRACKET; CAB MTG. RR | 1 | 9009-9601 | CD | (E) DELETION | ||
| 43 | I8-97010 844-0 | BRACKET; CAB MTG. RR | 2 | 9009-9601 | CD | (B) DELETION | ||
| 1 | I2-03466 554-0 | FRAME ASM | 1 | 9102-9601 | A | DELETION | ||
| 43 | I8-97010 844-0 | BRACKET; CAB MTG. RR | 2 | 9602- | CD | (B) DELETION | ||
| 297 | I0-91150 210-0 | NUT; 3RD C/MBR | 8 | 9009- | ABCDE | M10 FLANGE | ||
| 29 | I8-94366 653-0 | BRACKET; CAB MTG, CENTER | 2 | 9009- | ABCD | |||
| 43 | I8-97010 847-0 | BRACKET; CAB MTG. RR | 1 | 9009-9601 | CD | (C) DELETION | ||
| 157 | I8-94370 700-0 | BRACKET; FLEX HOSE | 1 | 9009- | ABCD | (A) DELETION | ||
| 140 | I8-94366 650-0 | BRACKET; S/ABS, RR | 1 | 9009- | ABCD | DELETION | ||
| 348 | I8-94366 645-0 | BRACKET; STRG STOPPER | 2 | 9009- | ABCD | DELETION | ||
| 297 | I0-91180 210-0 | NUT; 3RD C/MBR | 8 | 9009- | ABCDE | M10 FLANGE | ||
| 297 | I7-05110 010-A | NUT; 3RD C/MBR | 8 | 9009- | ABCDE | M10 FLANGE | ||
| 1 | I3-43466 552-0 | FRAME ASM | 1 | 9009-9101 | C | DELETION | ||
| 43 | I8-94366 656-0 | BRACKET; CAB MTG. RR | 2 | 9009- | ABCD | (A) DELETION | ||
| 67 | I9-09114 086-0 | NUT; C/MBR | 4 | 9009- | ABCD | DELETION | ||
| 1 | I3-43466 555-0 | FRAME ASM | 1 | 9009-9101 | DE | |||
| 1 | I3-43466 553-0 | FRAME ASM | 1 | 9102-9601 | D | |||
| 150 | I8-97133 580-1 | BRACKET; EXH PIPE | 1 | 9602- | ABCD | DELETION | ||
| 336 | I8-97806 918-0 | PLUG; HOLE | 2 | 0612- | E | |||
| 1 | I2-03466 555-0 | FRAME ASM | 1 | 9602- | B | DELETION | ||
| 43 | I8-97010 847-0 | BRACKET; CAB MTG. RR | 1 | 9602- | CD | (C) DELETION | ||
| 440 | I8-94370 697-A | BRACKET; HOSE | 2 | 0612- | E | |||
| 347 | I8-97011 268-0 | BRACKET; STRG GEAR BOX | 1 | 9009- | ABCD | DELETION | ||
| 157 | I8-97031 736-0 | BRACKET; FLEX HOSE | 1 | 9009- | ABCD | (B) DELETION | ||
| 156 | I8-94370 516-A | BRACKET; RR BODY MTG | 2 | 9009- | AB E | |||
| 347 | I8-97011 269-0 | BRACKET; STRG GEAR BOX | 1 | 9009- | ABCD | DELETION | ||
| 1 | I3-43466 554-0 | FRAME ASM | 1 | 9602- | C | DELETION | ||
| 157 | I8-97031 737-0 | BRACKET; FLEX HOSE | 1 | 9009- | ABCD | (B) DELETION | ||
| 2 | I8-97133 840-A | MEMBER; CROSS, 1 ST | 1 | 9602- | ABCDE | |||
| 43 | I8-97010 843-0 | BRACKET; CAB MTG. RR | 2 | 9009-9601 | CD | (D) DELETION | ||
| 296 | I0-28251 025-0 | BOLT; 3RD C/MBR | 8 | 9009- | ABCDE | M10X25 FLANGE | ||
| 1 | I2-03466 552-0 | FRAME ASM | 1 | 9006-9601 | C | |||
| 2 | I8-94366 614-1 | MEMBER; CROSS, 1 ST | 1 | 9009-9601 | ABCD | DELETION | ||
| 172 | I8-94158 644-0 | BRACKET; 2 WAY CONNECTOR | 1 | 9009- | ABCD | DELETION | ||
| 101 | I8-94370 496-A | BRACKET; RR SPR, FRT | 2 | 9009- | ABCDE | |||
| 297 | I7-05110 010-A | NUT; 3RD C/MBR | 8 | 9009- | ABCDE | M10 FLANGE | ||
| 1 | I2-03466 553-0 | FRAME ASM | 1 | 9009-9101 | D | |||
| 140 | I8-94366 649-0 | BRACKET; S/ABS, RR | 1 | 9009- | ABCD | DELETION | ||
| 130 | I8-97955 168-0 | MEMBER; CROSS, END | 1 | 0612- | E |
