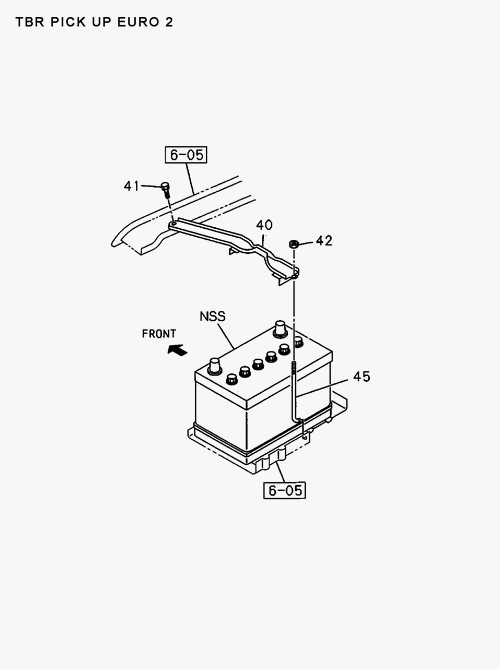

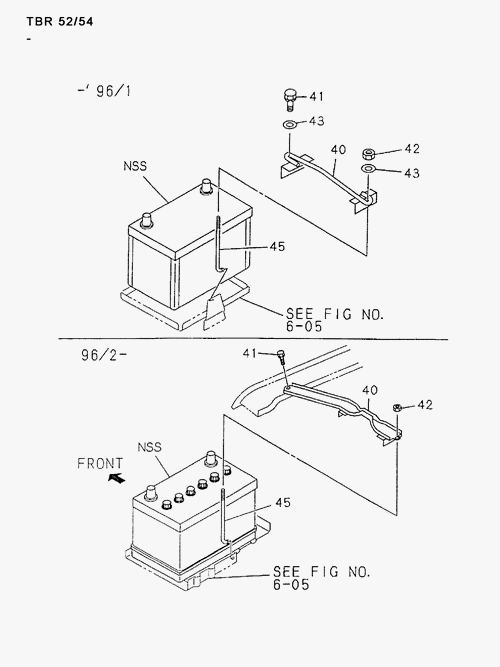

5-20 | BATTERY CARRIER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 40 | I8-97123 640-0 | CLAMP; BATTERY | 1 | 9602- | ABCDE | |||
| 41 | I0-28680 620-0 | BOLT; CLAMP BATTERY | 1 | 9602- | ABCDE | M6X20 FLANGE | ||
| 45 | I8-94238 991-A | ROD; TENSION, BATTERY | 1 | 9009- | ABCDE | L=190 | ||
| 41 | I0-20800 625-0 | BOLT; CLAMP BATTERY | 1 | 9205-9601 | ABCD | M6X25 | ||
| 42 | I0-91150 106-0 | NUT; CLAMP | 1 | 9602- | ABCDE | M6 FLANGE | ||
| 43 | I8-94411 099-0 | WASHER; PL, CLAMP | 2 | 9009-9601 | ABCD | |||
| 42 | I0-91180 106-0 | NUT; CLAMP | 1 | 9602- | ABCDE | M6 FLANGE | ||
| 40 | I8-94385 423-0 | CLAMP; BATTERY | 1 | 9009-9601 | ABCD | DELETION |
