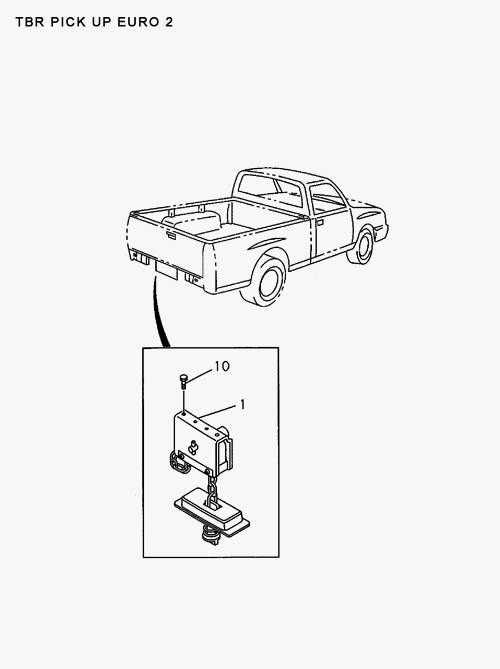

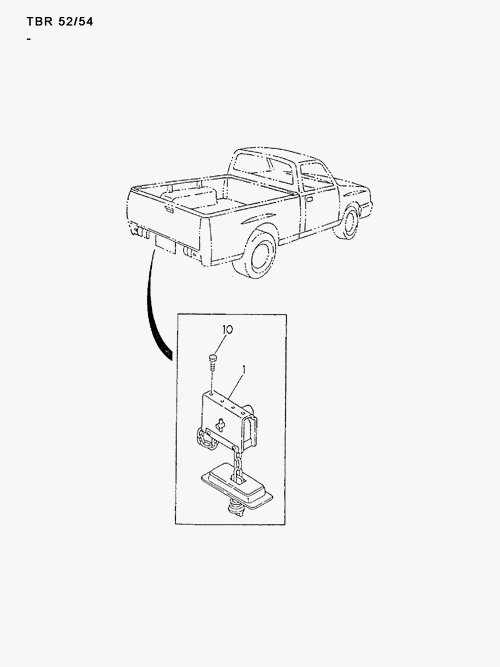

5-30 | SPARE TIRE CARRIER AND COVER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 10 | I0-50540 816-0 | BOLT; TIRE HANGER | 2 | 9205- | ABCDE | M8X16 W/LK WASHER | ||
| 10 | I0-50040 816-0 | BOLT; TIRE HANGER | 2 | 9205- | ABCDE | M8X16 W/LK WASHER | ||
| 1 | I8-97100 814-1 | HANGER ASM; TIRE FT | 1 | 9009-9305 | ABCDE | |||
| 10 | I9-01900 816-0 | BOLT; TIRE HANGER | 2 | 9009-9204 | ABCDE | M8X16 W/LK WASHER |
