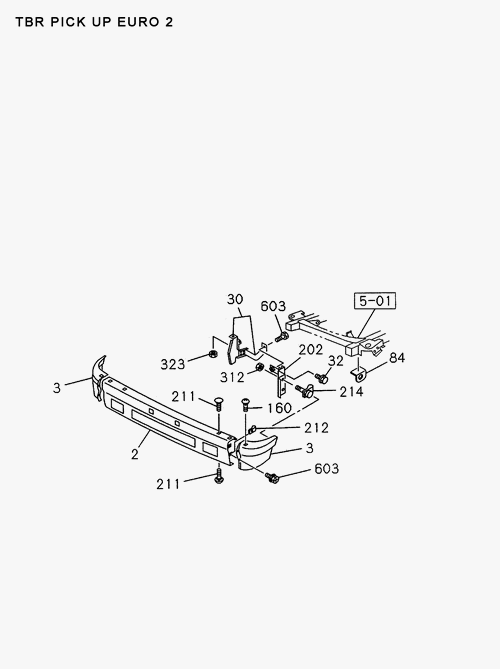

6-01 | FRONT BUMPER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 312 | I0-91150 106-0 | NUT; BRKT | 4 | 9602- | ABC | M6 FLANGE | ||
| 202 | I8-97127 207-1 | BRACKET; BUMPER SIDE | 1 | 9602- | ABC | |||
| 214 | I8-97806 845-1 | CLIP; BUMPER SUPPORT | 4 | 0612- | C | |||
| 177 | I8-94357 652-0 | BOLT | 8 | 9009-9601 | B | M8X20 | ||
| 84 | I8-97015 038-0 | HOOK | 1 | 0612- | C | |||
| 2 | I3-40003 957-0 | BUMPER; FRT T CENTER | 1 | 9606-9907 | AB | SPORTY, HI SPORTY | ||
| 30 | I8-97127 209-4 | BRACKET; FRT BUMPER | 1 | 9602- | ABC | |||
| 211 | I8-97110 408-0 | BOLT; NECK | 4 | 9602- | ABC | |||
| 27 | I8-94367 443-0 | BOLT; BUMPER TO BACK BAR | 8 | 9009-9601 | A | |||
| 3 | I8-94367 051-0 | BUMPER; FRT SIDE | 1 | 9009-9601 | A | |||
| 34 | I0-91150 208-0 | NUT; BRKT, BUMPER | 8 | 9009-9601 | AB | M8 FLANGE | ||
| 3 | I8-97127 295-0 | BUMPER; FRT SIDE | 1 | 9602- | ABC | |||
| 604 | I2-00004 497-0 | COVER HOLE FOG LAMP | 1 | 9712- | AB | |||
| 2 | I7-48002 105-A | BUMPER; FRT T CENTER | 1 | 0612- | C | |||
| 24 | I8-97127 297-2 | BAR; BACK, FRT BUMPER | 1 | 9602- | AB | |||
| 2 | I8-94367 048-0 | BUMPER; FRT T CENTER | 1 | 9009-9601 | A | |||
| 177 | I8-94367 443-0 | BOLT | 8 | 9009-9601 | A | |||
| 27 | I8-94357 652-0 | BOLT; BUMPER TO BACK BAR | 8 | 9009-9601 | B | M8X20 | ||
| 604 | I3-40004 497-0 | COVER HOLE FOG LAMP | 1 | 9712- | AB | |||
| 24 | I8-94367 058-0 | BAR; BACK, FRT BUMPER | 1 | 9009-9601 | AB | |||
| 158 | I3-40003 540-0 | EXTENTION FRONT BUMPER | 1 | 9606-9907 | AB | |||
| 3 | I8-97127 296-0 | BUMPER; FRT SIDE | 1 | 9602- | ABC | |||
| 2 | I8-97127 491-3 | BUMPER; FRT T CENTER | 1 | 9602- | AB | ROYAL | ||
| 32 | I8-94475 424-0 | BOLT; BRKT, BUMPER | 4 | 9009- | ABC | M12X30 FLANGE | ||
| 160 | I8-97179 642-0 | SCREW | 4 | 0612- | C | M6X10 | ||
| 317 | I0-91150 208-0 | NUT; CENTER TO SIDE | 6 | 9009-9601 | AB | M8 FLANGE | ||
| 604 | I2-40004 498-0 | COVER HOLE FOG LAMP | 1 | 9712- | AB | |||
| 24 | I8-97127 298-2 | BAR; BACK, FRT BUMPER | 1 | 9602- | AB | |||
| 34 | I0-91180 208-0 | NUT; BRKT, BUMPER | 8 | 9009-9601 | AB | M8 FLANGE | ||
| 603 | I8-94279 201-0 | BOLT; BRKT | 6 | 9602- | ABC | M6X16 W/LK&PL WASHER | ||
| 3 | I3-40004 385-0 | BUMPER; FRT SIDE | 1 | 9602- | AB | |||
| 323 | I5-09440 005-0 | NUT; FLANGE | 4 | 9602- | ABC | M8 FLANGE | ||
| 3 | I3-40004 386-0 | BUMPER; FRT SIDE | 1 | 9602- | AB | |||
| 312 | I0-91180 106-0 | NUT; BRKT | 4 | 9602- | ABC | M6 FLANGE | ||
| 2 | I8-94386 768-0 | BUMPER; FRT T CENTER | 1 | 9009-9601 | B | HI GRADE | ||
| 202 | I8-97127 208-1 | BRACKET; BUMPER SIDE | 1 | 9602- | ABC | |||
| 160 | I8-97020 619-0 | SCREW | 4 | 9602- | AB | M6X16 SCREW (+) | ||
| 30 | I8-97127 212-4 | BRACKET; FRT BUMPER | 1 | 9602- | ABC | |||
| 311 | I8-97806 845-1 | BOLT; BRKT | 4 | 9602- | ABC | |||
| 3 | I8-94367 054-1 | BUMPER; FRT SIDE | 1 | 9009-9601 | A | |||
| 2 | I3-40004 700-0 | BUMPER; FRT T CENTER | 1 | 9908- | B | HI SPORTY | ||
| 212 | I8-94111 243-0 | CLIP; BUMPER SUPPORT | 4 | 9602- | ABC | |||
| 24 | I8-94367 057-0 | BAR; BACK, FRT BUMPER | 1 | 9009-9601 | AB | |||
| 317 | I0-91180 208-0 | NUT; CENTER TO SIDE | 6 | 9009-9601 | AB | M8 FLANGE | ||
| 323 | I0-91180 208-0 | NUT; FLANGE | 4 | 9602- | ABC | M8 FLANGE |
