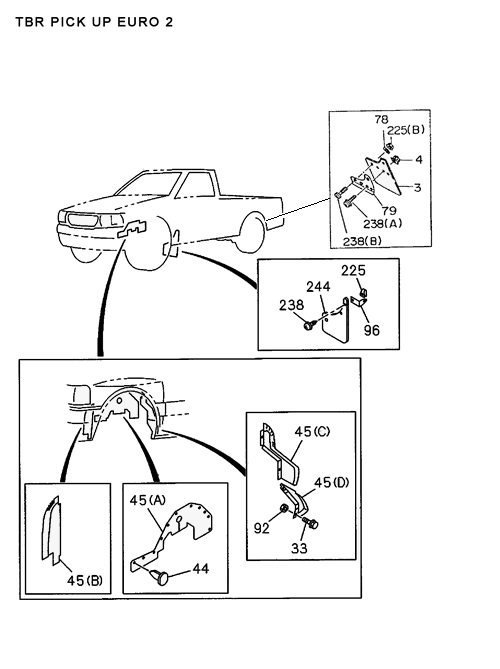

6-47 | MUD GUARD AND INSULATOR
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 45 | I8-94388 227-0 | COVER; MUD, FENDER SKIRT | 1 | 9602- | ABCDE | (C) | ||
| 3 | I3-40004 351-0 | GUARD; MUD, RR | 1 | 9712- | CD | HI GRADE | ||
| 45 | I8-94366 933-0 | COVER; MUD, FENDER SKIRT | 1 | 9009- | ABCDE | (B) | ||
| 244 | I3-40004 348-0 | SPLASH MUD GUARD FRONT | 1 | 9712- | CD | |||
| 45 | I8-94388 229-0 | COVER; MUD, FENDER SKIRT | 1 | 9009- | ABCDE | (D) | ||
| 33 | I8-94204 636-0 | BOLT; MUD COVER | 18 | 9009- | ABCDE | M6X14 W/PL WASHER | ||
| 244 | I3-40004 742-0 | SPLASH MUD GUARD FRONT | 1 | 9907- | CD | |||
| 78 | I9-09164 805-0 | WASHER; PL, MUD GUARD | 4 | 9009- | CD | |||
| 44 | I8-94215 211-0 | CLIP; ANCHOR | 22 | 9009- | ABCDE | |||
| 238 | I8-94380 268-0 | SCREW; MUD GUARD | 8 | 0612- | E | M4X16 | ||
| 45 | I8-94366 931-0 | COVER; MUD, FENDER SKIRT | 2 | 9009- | ABCD | (A) | ||
| 45 | I8-94388 230-0 | COVER; MUD, FENDER SKIRT | 1 | 9009- | ABCDE | (D) | ||
| 3 | I3-40003 776-0 | GUARD; MUD, RR | 1 | 9602- | CD | RYL,G RYL, DLX, SPL, SPR | ||
| 45 | I8-94366 932-0 | COVER; MUD, FENDER SKIRT | 1 | 9009- | ABCDE | (B) | ||
| 92 | I0-91180 106-0 | NUT; MUD GUARD | 8 | 0612- | E | M6 FLANGE | ||
| 3 | I3-40003 546-0 | GUARD; MUD, RR | 1 | 9606-9907 | CD | SPORTY,Hl SPORTY | ||
| 225 | I8-94158 038-0 | NUT; MUD GUARD | 8 | 0612- | E | |||
| 3 | I8-97029 363-L | GUARD; MUD, RR | 1 | 9009-9601 | CD | RYL,G RYL, HG, DLX, SPL, SPR - | ||
| 45 | I2-94388 227-0 | COVER; MUD, FENDER SKIRT | 1 | 9009- | ABCDE | (C) DELETION | ||
| 238 | I8-98073 081-0 | SCREW; MUD GUARD | 8 | 0612- | E | |||
| 45 | I8-94388 228-0 | COVER; MUD, FENDER SKIRT | 1 | 9009- | ABCDE | (C) | ||
| 3 | I7-16660 161-A | GUARD; MUD, RR | 1 | 0612- | CD | PICKUP | ||
| 4 | I8-94203 326-0 | GROMMET; SCREW, SPLASH GUARD FIX | 2 | 9009- | CD | |||
| 244 | I3-40003 774-0 | SPLASH MUD GUARD FRONT | 1 | NULL | E | |||
| 45 | I2-94388 229-0 | COVER; MUD, FENDER SKIRT | 1 | 9009- | ABCDE | (D) DELETION | ||
| 3 | I3-40004 350-0 | GUARD; MUD, RR | 1 | 9712- | CD | HI GRADE | ||
| 96 | I8-97026 328-0 | STAY; MUD GUARD | 2 | 0612- | E | |||
| 3 | I3-40003 547-0 | GUARD; MUD, RR | 1 | 9606-9907 | CD | SPORTY,Hl SPORTY | ||
| 79 | I8-97029 373-0 | RETAINER; MUD COVER | 1 | 9009- | CD | |||
| 244 | I3-40003 773-0 | SPLASH MUD GUARD FRONT | 1 | NULL | E | |||
| 244 | I3-40004 741-0 | SPLASH MUD GUARD FRONT | 1 | 9907- | CD | |||
| 244 | I3-40004 347-0 | SPLASH MUD GUARD FRONT | 1 | 9712- | CD | |||
| 3 | I7-16660 160-A | GUARD; MUD, RR | 1 | 0612- | CD | PICKUP | ||
| 79 | I8-97029 364-0 | RETAINER; MUD COVER | 1 | 9009- | CD | |||
| 3 | I3-40003 775-0 | GUARD; MUD, RR | 1 | 9602- | CD | RYL,G RYL, DLX, SPL, SPR | ||
| 3 | I8-97029 363-R | GUARD; MUD, RR | 1 | 9009-9601 | CD | RYL,G RYL, HG, DLX, SPL, SPR |
