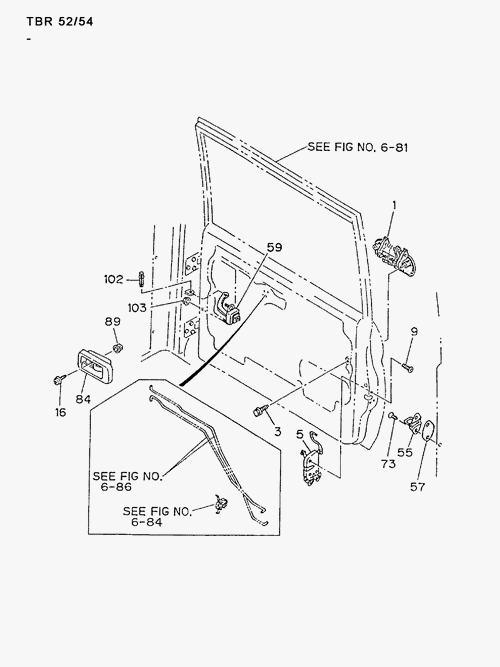

6-83 | BACK DOOR LOCK AND HANDLE
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 102 | I8-94111 468-0 | PIN; DOOR CHECK ARM | 1 | 9009- | CD | |||
| 103 | I0-91180 106-0 | NUT | 2 | 9009- | CD | M6 FLANGE | ||
| 1 | I8-97072 484-A | HANDLE; OUTSIDE, BACK DOOR | 1 | 9112- | CD | |||
| 84 | I8-97151 752-0 | HANDLE; INSIDE, BACK DOOR | 1 | 9409- | CD | BLACK | ||
| 89 | I8-94152 494-0 | SCREW; HANDLE | 1 | 9009- | CD | |||
| 73 | I8-94327 388-0 | SCREW; STRIKER TO BACK DOOR | 2 | 9009- | CD | |||
| 57 | I8-97023 010-0 | SEAT; DOOR STRIKER, BACK DOOR | AR | 9009- | CD | |||
| 5 | I8-97186 576-0 | LOCK; BACK DOOR | 1 | 9009- | CD | |||
| 3 | I8-98048 996-0 | BOLT; TAIL GATE HANDLE | 2 | 9009- | CD | M6X8 | ||
| 59 | I8-97016 901-0 | ARM ASM; CHECK, BACK DOOR | 1 | 9009- | CD | |||
| 16 | I8-94152 495-0 | SCREW; INSIDE LEVER, BACK DOOR | 1 | 9009- | CD | M5X14 | ||
| 3 | I8-94155 893-0 | BOLT; TAIL GATE HANDLE | 2 | 9009- | CD | M6X8 | ||
| 55 | I8-94115 959-0 | STRIKER; BACK DOOR | 1 | 9009- | CD | |||
| 103 | I0-91150 106-0 | NUT | 2 | 9009- | CD | M6 FLANGE | ||
| 84 | I8-97000 865-0 | HANDLE; INSIDE, BACK DOOR | 1 | 9009-9408 | CD | GRAY | ||
| 9 | I8-97113 761-0 | SCREW; LOCK TO BACK DOOR | 3 | 9009- | CD | M6X16 OVAL-HD |
