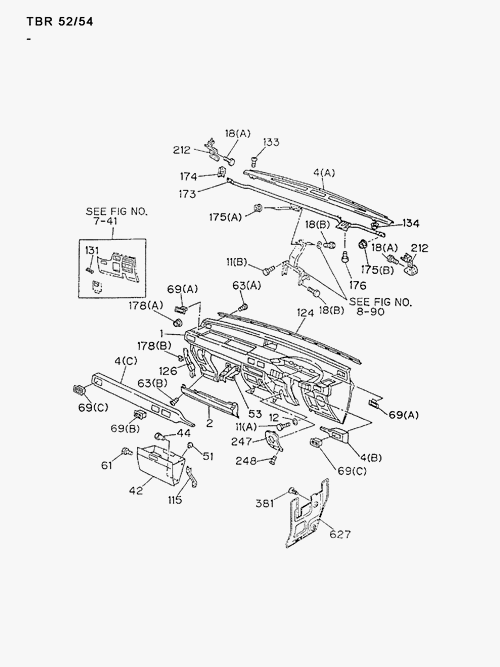

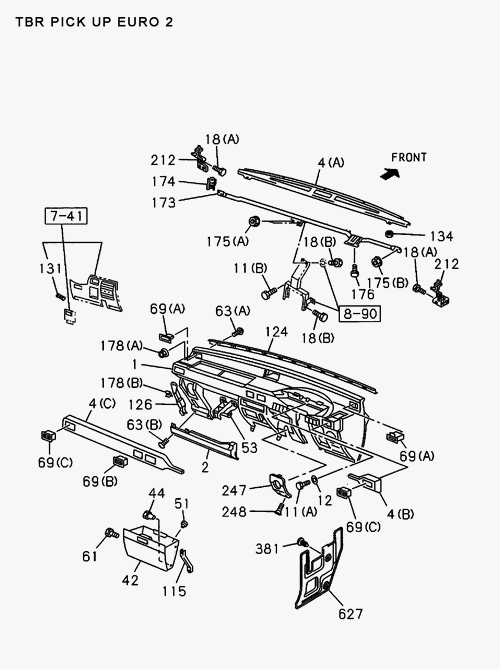

7-40 | INSTRUMENT PANEL AND BOX
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 42 | I8-94475 857-6 | BOX; GLOVE, INST PNL | 1 | 9009-9408 | ABCD | GRAY | ||
| 133 | I8-98056 287-0 | SCREW; COVER, INST PNL | 5 | 9009- | ABCD | M6X14 | ||
| 4 | I8-94477 640-1 | COVER; INST PNL | 1 | 9009-9408 | ABCD | (B) GRAY | ||
| 4 | I8-94387 514-1 | COVER; INST PNL | 1 | 9002- | ABCDE | (C) BLACK | ||
| 178 | I8-94170 192-0 | NUT; INST PANEL | 3 | 9009- | ABCDE | (B) M6 W/WASHER | ||
| 134 | I5-09440 004-0 | NUT; FRT COVER, INST PANEL | 3 | 9009-9012 | ABCD | M6 H=6 | ||
| 42 | I8-94475 857-7 | BOX; GLOVE, INST PNL | 1 | 9009- | ABCD | GRAY | ||
| 248 | I8-97221 091-0 | SCREW; HAND BRAKE LEVER COVER | 2 | 9009- | ABCDE | M5X16 | ||
| 175 | I8-94170 192-0 | NUT; CROSS BEAM | 3 | 0612- | E | (A) M6 | ||
| 627 | I8-97131 699-A | TRIM | 1 | 9602- | ABCDE | |||
| 115 | I8-94339 842-0 | RETAINER; GLOVE BOX | 1 | 9009- | ABCDE | |||
| 212 | I8-94369 049-A | BRACKET; INST PNL SIDE | 1 | 9009- | ABCDE | |||
| 247 | I8-94333 736-3 | COVER; HAND BRAKE LEVER., INST PANEL | 1 | 9602- | ABCDE | BLACK | ||
| 133 | I8-94479 534-0 | SCREW; COVER, INST PNL | 5 | 9009-9012 | ABCD | M6X14 | ||
| 131 | I8-94365 787-0 | GRILLE ASM; LAP VENT | 1 | 9009- | ABCDE | |||
| 176 | I0-28080 816-0 | BOLT; CROSS BEAM | 1 | 9412- | ABCDE | M8X16 FLANGE | ||
| 175 | I8-97065 435-0 | NUT; CROSS BEAM | 4 | 9009- | ABCDE | (B) M8 FLANGE | ||
| 134 | I8-97063 399-0 | NUT; FRT COVER, INST PANEL | 7 | 9306- | ABCDE | M6 FLANGE | ||
| 178 | I8-98049 368-0 | NUT; INST PANEL | 3 | 9009- | ABCDE | (B) M6 W/WASHER | ||
| 1 | I8-97000 403-3 | PANEL; INST | 1 | 9409-9601 | CDE | BLACK | ||
| 627 | I8-97131 700-A | TRIM | 1 | 9602- | ABCDE | |||
| 18 | I8-94206 784-0 | BOLT; BRKT | 4 | 9009- | ABCDE | (B) M6X16 | ||
| 134 | I8-98055 704-0 | NUT; FRT COVER, INST PANEL | 7 | 9306- | ABCDE | M6 FLANGE | ||
| 247 | I8-94478 314-3 | COVER; HAND BRAKE LEVER., INST PANEL | 1 | 9009-9408 | ABCD | GRAY | ||
| 69 | I8-94333 734-2 | GRILLE; SIDE, AIR OUTLET | 1 | 9409-9601 | CDE | INTERIOR COLOR BLACK(101) (A) BLACK | ||
| 174 | I8-94375 073-2 | BRACKET; BEAM SIDE | 1 | 9009- | ABCDE | |||
| 11 | I8-94136 136-0 | BOLT; INST PNL | 2 | 9009- | ABCDE | (B) M6X12 | ||
| 44 | I8-94344 553-1 | PIN; GLOVE BOX | 2 | 9009- | ABCDE | |||
| 18 | I8-98056 122-0 | BOLT; BRKT | 8 | 9009- | ABCDE | (A) M8X16 | ||
| 69 | I8-94474 789-2 | GRILLE; SIDE, AIR OUTLET | 1 | 9009-9408 | ABCD | (A) GRAY | ||
| 175 | I8-98049 368-0 | NUT; CROSS BEAM | 3 | 0612- | E | (A) M6 | ||
| 212 | I8-94369 049-0 | BRACKET; INST PNL SIDE | 1 | 9009- | ABCDE | |||
| 69 | I8-94388 772-3 | GRILLE; SIDE, AIR OUTLET | 1 | 9409-9601 | CDE | INTERIOR COLOR BLACK(101) BLACK | ||
| 4 | I8-94387 513-1 | COVER; INST PNL | 1 | 9409-9601 | CDE | (B) BLACK | ||
| 1 | I8-97000 404-0 | PANEL; INST | 1 | 9009-9601 | ABCD | GRAY | ||
| 12 | I0-91610 706-0 | WASHER; PL, INST PANEL | 1 | 9009- | ABCDE | ID=6 | ||
| 2 | I8-94450 175-3 | REINFORCEMENT; INST PNL, LWR | 1 | 9009- | ABCDE | |||
| 124 | I8-94449 374-4 | REINFORCEMENT; INST PNL, UPR | 1 | 9009- | ABCDE | |||
| 51 | I8-94389 122-0 | CUSHION; STOPPER, GLOVE BOX | 3 | 9602- | ABCDE | |||
| 53 | I8-94310 754-1 | STRIKER; GLOVE BOX | 1 | 9009- | ABCDE | |||
| 134 | I8-98049 362-0 | NUT; FRT COVER, INST PANEL | 3 | 9009- | ABCD | M6 H=6 | ||
| 126 | I8-94339 844-0 | STAY; GLOVE BOX SIDE | 1 | 9009- | ABCDE | |||
| 69 | I8-94474 762-4 | GRILLE; SIDE, AIR OUTLET | 2 | 9009-9408 | ABCD | (A) GRAY | ||
| 61 | I9-03094 408-0 | SCREW; GLOVE BOX | 2 | 9009-9401 | ABCD | M4X8 | ||
| 11 | I8-94139 963-0 | BOLT; INST PNL | 5 | 9009- | ABCDE | (A) M6X16 | ||
| 18 | I8-94139 492-0 | BOLT; BRKT | 8 | 9009- | ABCDE | (A) M8X16 | ||
| 69 | I8-94333 730-4 | GRILLE; SIDE, AIR OUTLET | 2 | 9409-9601 | CDE | INTERIOR COLOR BLACK(101) (B) BLACK | ||
| 212 | I8-94369 048-0 | BRACKET; INST PNL SIDE | 1 | 9009- | ABCDE | |||
| 69 | I8-94474 766-3 | GRILLE; SIDE, AIR OUTLET | 1 | 9009-9408 | ABCD | (C) GRAY | ||
| 69 | I8-94388 773-3 | GRILLE; SIDE, AIR OUTLET | 1 | 9409-9601 | CDE | INTERIOR COLOR BLACK(101) (C) BLACK | ||
| 212 | I8-94369 048-A | BRACKET; INST PNL SIDE | 1 | 9009- | ABCDE | |||
| 176 | I0-50140 818-0 | BOLT; CROSS BEAM | 1 | 9205-9411 | ABCD | M8X18 W/LK8PL WASHER | ||
| 69 | I8-94474 764-3 | GRILLE; SIDE, AIR OUTLET | 1 | 9009-9408 | ABCD | (C) GRAY | ||
| 42 | I8-94333 748-7 | BOX; GLOVE, INST PNL | 1 | 9409-9601 | CDE | BLACK | ||
| 12 | I9-09160 706-0 | WASHER; PL, INST PANEL | 1 | 9009- | ABCDE | ID=6 | ||
| 69 | I8-94474 786-2 | GRILLE; SIDE, AIR OUTLET | 1 | 9009-9408 | ABCD | (A) GRAY | ||
| 381 | I8-94145 515-0 | CLIP; HARNESS | 6 | 9602- | ABCDE | BLACK | ||
| 4 | I8-94477 643-1 | COVER; INST PNL | 1 | 9009-9408 | ABCD | (C) GRAY | ||
| 4 | I8-94477 543-1 | COVER; INST PNL | 1 | 9403-9601 | ABCD | DELETION | ||
| 63 | I9-09829 188-0 | SCREW; BINDER HD | 14 | 9009- | ABCDE | (A) M5X16 | ||
| 4 | I8-94366 942-0 | COVER; INST PNL | 1 | 9009- | ABCDE | (A) | ||
| 248 | I9-09829 323-1 | SCREW; HAND BRAKE LEVER COVER | 2 | 9009- | ABCDE | M5X16 | ||
| 126 | I8-94339 843-0 | STAY; GLOVE BOX SIDE | 1 | 9009- | ABCDE | |||
| 61 | I8-97107 420-0 | SCREW; GLOVE BOX | 2 | 9402- | ABCDE | JM4XIO | ||
| 173 | I8-94381 056-0 | BEAM ASM; CROSS, INST PANEL | 1 | 9009- | ABCDE | |||
| 63 | I8-97221 091-0 | SCREW; BINDER HD | 14 | 9009- | ABCDE | (A) M5X16 | ||
| 69 | I8-94333 735-2 | GRILLE; SIDE, AIR OUTLET | 1 | 9409-9601 | CDE | INTERIOR COLOR BLACK(101) (A) BLACK | ||
| 178 | I8-94217 271-0 | NUT; INST PANEL | 14 | 9009- | ABCDE | (A) M5 SPIRE NUT |
