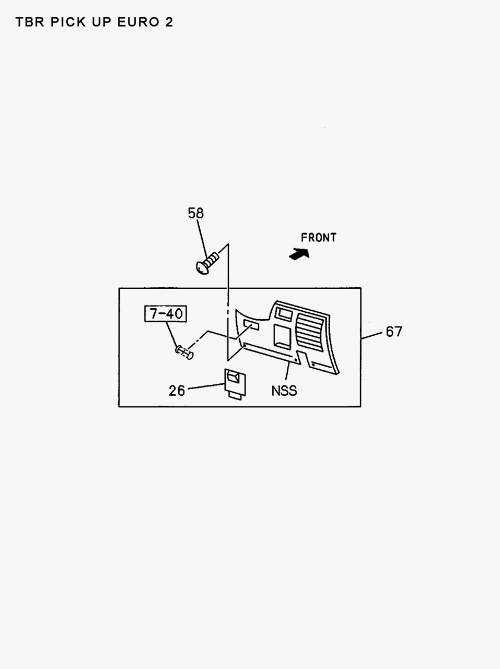

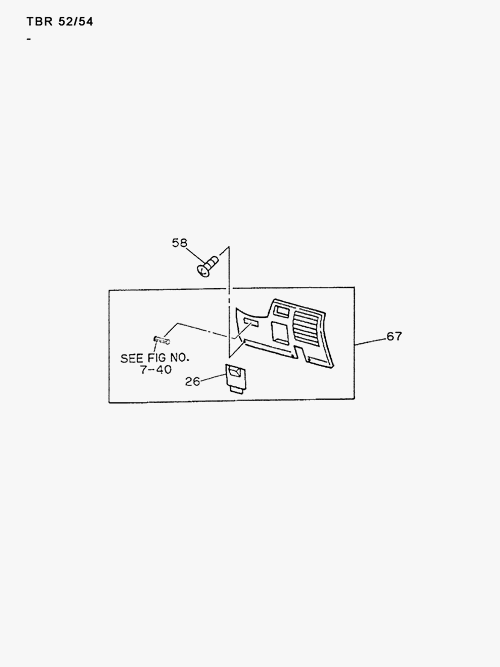

7-41 | UNDER COVER; INSTRUMENT
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 67 | I8-94474 775-4 | COVER; UNDER, =NST PNL | 1 | 9009-9408 | ABCD | GRAY | ||
| 58 | I9-09829 323-1 | SCREW; UNDER COVER | 4 | 9009- | ABCDE | M5X16 | ||
| 67 | I8-94340 988-4 | COVER; UNDER, =NST PNL | 1 | 9602- | ABCDE | BLACK | ||
| 58 | I8-97221 091-0 | SCREW; UNDER COVER | 4 | 9009- | ABCDE | M5X16 | ||
| 26 | I8-94341 015-2 | COVER; FUSE BOX | 1 | 9602- | ABCDE | BLACK | ||
| 26 | I8-94477 573-2 | COVER; FUSE BOX | 1 | 9009- | ABCD | GRAY | ||
| 26 | I8-94477 573-5 | COVER; FUSE BOX | 1 | 9009-9408 | ABCD | GRAY |
