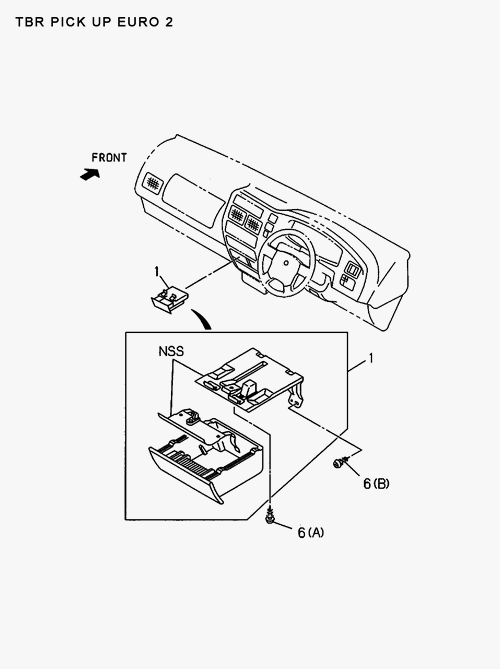

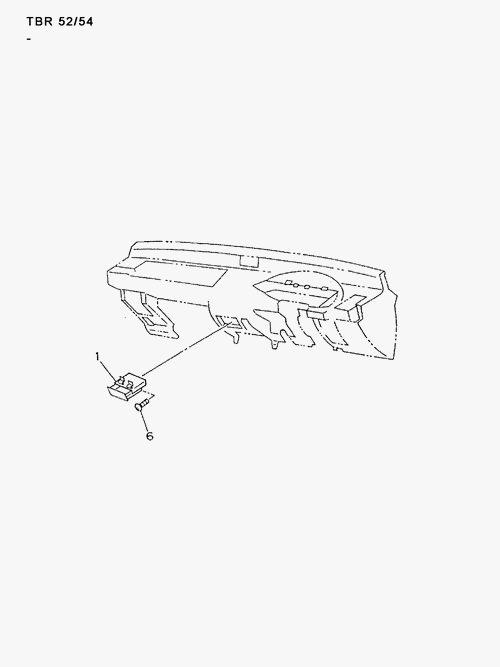

7-42 | ASH TRAY
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 6 | I9-09829 323-1 | SCREW; ASH TRAY | 2 | 9009- | ABCDE | MSX16 | ||
| 6 | I8-97221 091-0 | SCREW; ASH TRAY | 2 | 9009- | ABCDE | MSX16 | ||
| 6 | I9-07076 510-0 | SCREW; ASH TRAY | 1 | 9009- | ABCDE | M5X10 | ||
| 1 | I8-94333 733-2 | TRAY; ASH, INST PNL | 1 | 9409-9601 | CD | BLACK | ||
| 1 | I8-97153 562-0 | TRAY; ASH, INST PNL | 1 | 9602- | ABCD | GRAY | ||
| 1 | I5-94474 781-2 | TRAY; ASH, INST PNL | 1 | 9009-9408 | ABCD | GRAY | ||
| 1 | I8-97154 479-0 | TRAY; ASH, INST PNL | 1 | 9602- | ABCDE | BLACK | ||
| 1 | I8-97153 562-0 | TRAY; ASH, INST PNL | 1 | 9409-9601 | ABCD | GRAY | ||
| 6 | I0-71240 510-0 | SCREW; ASH TRAY | 1 | 9009- | ABCDE | M5X10 |
