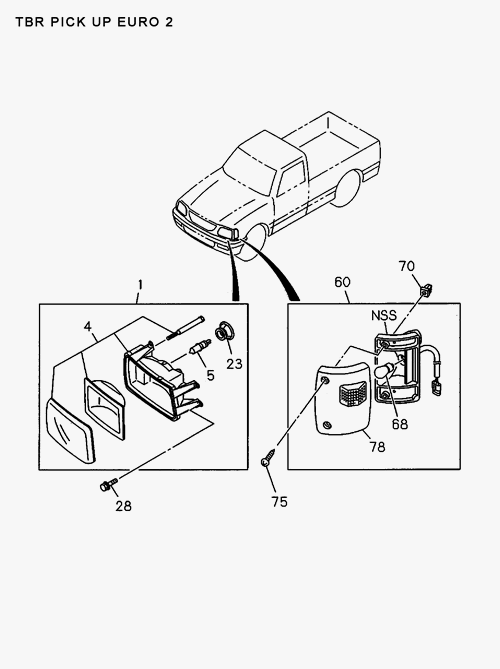

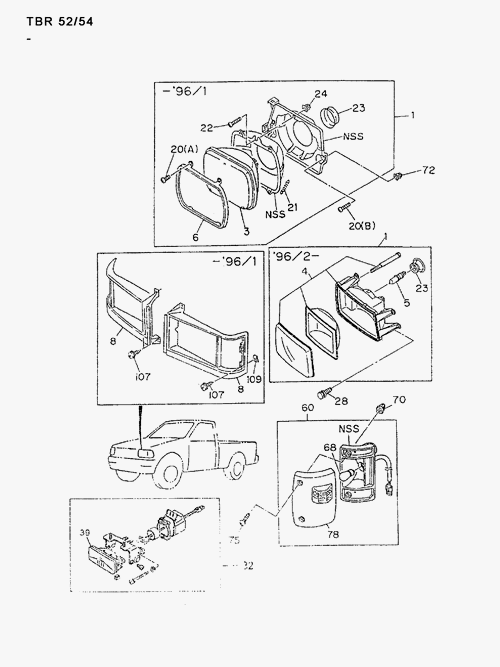

8-01 | LAMP; FRONT AND FRONT SIDE
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97135 115-1 | LAMP ASM; HEAD | 1 | 9602- | AB | |||
| 78 | I8-97031 002-0 | LENS ASM; FRT COMB | 1 | 9009- | AB | |||
| 1 | I8-97135 116-1 | LAMP ASM; HEAD | 1 | 9602- | AB | |||
| 5 | I8-94217 817-0 | BULB; HEADLAMP | 2 | 9602- | AB | 12V 60/55W | ||
| 70 | I8-94430 147-0 | GROMMET; SCREW, FRT COMB LAMP | 4 | 9009- | AB | |||
| 60 | I3-40004 303-0 | LAMP ASM; FRT COMB | 1 | 9009- | AB | HI GRADE | ||
| 6 | I8-94228 905-0 | RIM; HEADLAMP | 2 | 9009-9601 | AB | |||
| 20 | I8-94324 114-0 | SCREW; HEADLAMP | 8 | 9009-9601 | AB | (A) | ||
| 1 | I8-94368 852-0 | LAMP ASM; HEAD | 2 | 9009-9601 | AB | HALOGEN HEAD LAMP<TT5> | ||
| 20 | I0-36230 514-0 | SCREW; HEADLAMP | 6 | 9009- | AB | (B) M5X14 W/LK&PL WASHER | ||
| 1 | I8-97562 658-A | LAMP ASM; HEAD | 1 | 0612- | AB | |||
| 78 | I8-97031 003-0 | LENS ASM; FRT COMB | 1 | 9009- | AB | |||
| 75 | I0-71090 430-0 | SCREW; FRT COMB LAMP | 4 | 9009- | AB | M4X30 | ||
| 60 | I8-94368 579-0 | LAMP ASM; FRT COMB | 1 | 9009- | ABC | |||
| 1 | I8-97562 657-A | LAMP ASM; HEAD | 1 | 0612- | AB | |||
| 109 | I8-94158 038-0 | NUT; EXPANSION | 4 | 9009-9601 | AB | |||
| 4 | I8-97562 657-A | LAMP ASM; HEAD | 1 | 0612- | C | |||
| 107 | I8-94380 268-0 | SCREW; RIM, HEADLAMP | 8 | 9110-9601 | AB | M4X16 | ||
| 28 | I8-94372 359-0 | BOLT; HEADLAMP | 8 | 9602- | AB | M6X18 | ||
| 3 | I8-94165 478-0 | SEALED BEAM; HEADLAMP | 2 | 9009-9601 | AB | EXC. HALOGEN HEAD LAMP<TT5> | ||
| 4 | I8-97146 651-0 | HEADLAMP UNIT | 1 | 9602- | AB | |||
| 8 | I8-94366 984-1 | RIM; HEADLAMP | 1 | 9009-9601 | A | |||
| 22 | I5-09109 012-0 | SCREW; ADJ, HEADLAMP | 4 | 9009-9601 | AB | |||
| 32 | I3-40004 294-0 | FOGLAMP ASSY | 2 | 9712- | AB | DELETION | ||
| 28 | I8-98062 140-0 | BOLT; HEADLAMP | 8 | 9602- | AB | M6X18 | ||
| 68 | I8-94125 959-0 | BULB; FRT COMB LAMP | 2 | 9009- | AB | 12V 21/5W | ||
| 60 | I3-40004 304-0 | LAMP ASM; FRT COMB | 1 | 9009- | AB | HI GRADE | ||
| 20 | I9-03920 514-0 | SCREW; HEADLAMP | 6 | 9009-9601 | AB | (B) M5X14 W/LK&PL WASHER | ||
| 72 | I8-94141 978-1 | GROMMET; SCREW, HEADLAMP | 4 | 9009-9601 | AB | |||
| 4 | I7-41020 105-A | LAMP ASM; HEAD | 1 | 0612- | C | |||
| 23 | I5-82119 004-1 | COVER; BULB HEADLAMP | 2 | 9009-9601 | AB | |||
| 107 | I8-98073 081-0 | SCREW; RIM, HEADLAMP | 8 | 9110-9601 | AB | M4X16 | ||
| 24 | I5-09470 004-0 | MOUNTING; ADJ SCREW HD LAMP | 4 | 9009-9601 | AB | |||
| 39 | I3-11114 294-0 | FOGLAMP SUB ASSY | 1 | 9712- | AB | DELETION | ||
| 68 | I6-94125 959-0 | BULB; FRT COMB LAMP | 2 | 9009- | AB | (IADG) 12V 21/5W | ||
| 1 | I8-94368 850-0 | LAMP ASM; HEAD | 2 | 9009-9601 | AB | EXC. HALOGEN HEAD LAMP<TT5> | ||
| 39 | I3-11114 295-0 | FOGLAMP SUB ASSY | 1 | 9712- | AB | DELETION | ||
| 60 | I8-94368 578-0 | LAMP ASM; FRT COMB | 1 | 9009- | ABC | |||
| 21 | I8-94153 168-0 | SPRING; ADJ HEADLAMP | 2 | 9009-9601 | AB | |||
| 4 | I8-97146 652-0 | HEADLAMP UNIT | 1 | 9602- | AB | |||
| 4 | I8-97562 658-A | LAMP ASM; HEAD | 1 | 0612- | C | |||
| 23 | I8-97146 657-0 | COVER; BULB HEADLAMP | 2 | 9602- | AB | |||
| 4 | I7-41010 105-A | LAMP ASM; HEAD | 1 | 0612- | C | |||
| 3 | I8-94165 479-0 | SEALED BEAM; HEADLAMP | 2 | 9009-9601 | AB | HALOGEN HEAD LAMP<TT5> | ||
| 8 | I8-94366 982-1 | RIM; HEADLAMP | 1 | 9009-9601 | A |
