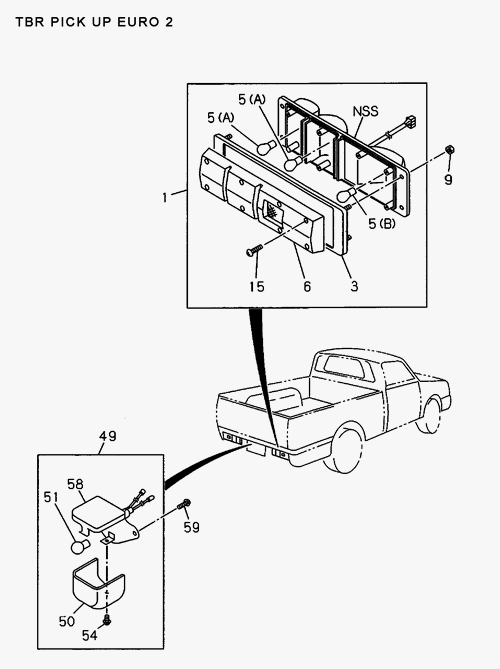

8-03 | LAMP; REAR AND REAR SIDE
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 6 | I5-82235 001-A | LENS; RR COMB LAMP | 1 | 9009- | R | AB E | ||
| 49 | I8-94366 586-0 | LAMP; LICENSE PLATE | 1 | 9009- | CD | |||
| 97 | I8-94298 174-0 | BRACKET; LICENSE PLATE LAMP | 1 | 9009- | CD | DELETION | ||
| 58 | I8-97045 767-1 | COVER; LICENSE PLATE LAMP | 1 | 9102- | AB E | |||
| 1 | I8-94352 005-A | LAMP ASM; RR COMB | 1 | 9011- | L | CD | ||
| 59 | I0-71040 512-0 | SCREW; TAP, LICENSE LAMP BODY | 2 | 9009- | AB E | M5X12 | ||
| 51 | I8-94126 494-0 | BULB; LICENSE PLATE LAMP | 1 | 9009- | AB E | 12V 10W | ||
| 99 | I0-71240 410-0 | SCREW | 2 | 9009- | CD | (B) M4X10 | ||
| 5 | I9-82692 132-A | BULB; RR COMB LAMP | 2 | 9009- | ABCDE | (B) 12V 23/8W | ||
| 98 | I9-09160 604-0 | WASHER | 2 | 9009- | CD | ID=4 | ||
| 5 | I9-82692 131-0 | BULB; RR COMB LAMP | 4 | 9009- | ABCDE | DELETION (A) 12V 23W | ||
| 97 | I8-97801 981-0 | BRACKET; LICENSE PLATE LAMP | 1 | 9009- | CD | |||
| 5 | I9-82692 132-0 | BULB; RR COMB LAMP | 2 | 9009- | ABCDE | (B) 12V 23/8W | ||
| 1 | I6-82230 036-0 | LAMP ASM; RR COMB | 1 | 9009- | R | AB E | (IADG) | |
| 52 | I5-09470 002-0 | GROMMET; SCREW, LICENSE PLATE LAMP | 2 | 9009- | CD | M4 | ||
| 1 | I6-82230 037-0 | LAMP ASM; RR COMB | 1 | 9009- | L | AB E | (IADG) | |
| 54 | I8-94419 312-0 | SCREW; LICENSE PLATE LAMP | 1 | 9009- | AB E | M4X8 | ||
| 6 | I8-94274 120-A | LENS; RR COMB LAMP | 1 | 9009- | L | CD | ||
| 3 | I8-94350 988-0 | GASKET; RR COMB LAMP | 1 | 9011- | L | CD | ||
| 99 | I9-07076 410-0 | SCREW | 2 | 9009- | CD | (B) M4X10 | ||
| 5 | I9-82692 131-A | BULB; RR COMB LAMP | 4 | 9009- | ABCDE | DELETION (A) 12V 23W | ||
| 9 | I8-97068 819-0 | NUT; LAMP, RR COMB | 8 | 9009- | AB E | M5 | ||
| 6 | I8-94274 119-A | LENS; RR COMB LAMP | 1 | 9009- | R | CD | ||
| 53 | I8-94379 544-0 | GASKET; LICENSE LAMP | 1 | 9009- | CD | DELETION | ||
| 54 | I0-71190 420-0 | SCREW; LICENSE PLATE LAMP | 2 | 9009- | CD | DELETION M4X20 TAPPING STAINLESS | ||
| 15 | I5-82239 005-1 | SCREW; RR COMB LAMP | 16 | 9009- | AB E | M4X25 | ||
| 15 | I9-07076 410-0 | SCREW; RR COMB LAMP | 2 | 9009- | CD | M4X10 | ||
| 3 | I5-82236 001-0 | GASKET; RR COMB LAMP | 1 | 9009- | R | AB E | ||
| 50 | I5-82125 004-1 | LENS; LICENSE PLATE LAMP | 1 | 9009- | AB E | |||
| 15 | I0-71190 530-0 | SCREW; RR COMB LAMP | 8 | 9009- | CD | M5X30 | ||
| 6 | I5-82235 002-A | LENS; RR COMB LAMP | 1 | 9009- | L | AB E | ||
| 51 | I8-97310 952-0 | BULB; LICENSE PLATE LAMP | 1 | 9009- | CD | 12V 5W | ||
| 51 | I8-94124 595-0 | BULB; LICENSE PLATE LAMP | 1 | 9009- | CD | 12V 5W | ||
| 1 | I8-94352 004-A | LAMP ASM; RR COMB | 1 | 9011- | R | CD | ||
| 12 | I8-94279 732-0 | GROMMET; RR COMB LAMP | 8 | 9009- | CD | |||
| 3 | I5-82236 002-0 | GASKET; RR COMB LAMP | 1 | 9009- | L | AB E | ||
| 15 | I0-71240 410-0 | SCREW; RR COMB LAMP | 2 | 9009- | CD | M4X10 | ||
| 49 | I7-41410 211-A | LAMP; LICENSE PLATE | 1 | 9009- | AB E | |||
| 49 | I5-82120 020-0 | LAMP; LICENSE PLATE | 1 | 9009- | AB E | |||
| 1 | I5-82230 037-1 | LAMP ASM; RR COMB | 1 | 9009- | L | AB E | ||
| 12 | I8-94279 078-A | GROMMET; RR COMB LAMP | 8 | 9009- | CD | |||
| 99 | I9-03900 612-0 | SCREW | 4 | 9009- | CD | (A) DELETION M6X12 | ||
| 3 | I8-94350 987-0 | GASKET; RR COMB LAMP | 1 | 9011- | R | CD | ||
| 58 | I8-94499 927-0 | COVER; LICENSE PLATE LAMP | 1 | 9009- | CD | BLACK | ||
| 7 | I0-71190 530-0 | SCREW; RR COMB LAMP | 8 | 9009- | CD | M5X30 | ||
| 1 | I5-82230 036-1 | LAMP ASM; RR COMB | 1 | 9009- | R | AB E | ||
| 59 | I9-07066 512-0 | SCREW; TAP, LICENSE LAMP BODY | 2 | 9009- | AB E | M5X12 | ||
| 58 | I8-94198 339-3 | COVER; LICENSE PLATE LAMP | 1 | 9009- | CD | BLACK | ||
| 50 | I8-94135 878-2 | LENS; LICENSE PLATE LAMP | 1 | 9009- | CD |
