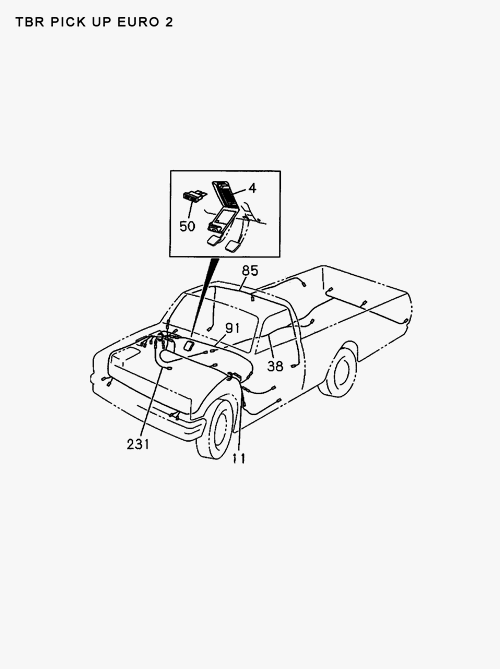

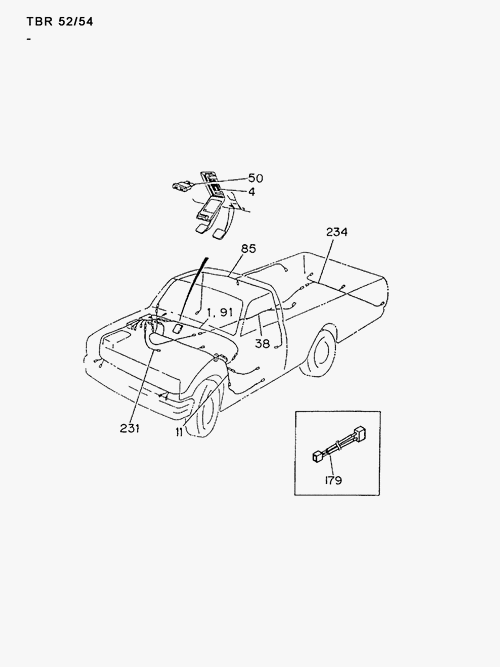

8-10 | WIRING HARNESS AND FUSE
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 38 | I8-94367 805-0 | HARNESS; CHASSIS | 1 | 9009-9601 | B | |||
| 38 | I8-94367 460-0 | HARNESS; CHASSIS | 1 | 9009-9601 | A | |||
| 234 | I8-94385 373-0 | HARNESS; LICENSE LAMP | 1 | 9009- | CD | |||
| 50 | I5-82516 003-0 | FUSE; BODY HARNESS | 4 | 9009- | ABCDE | 15A BLUE | ||
| 231 | I7-42000 102-A | HARNESS; TRANS | 1 | 9009-9408 | ABCD | |||
| 179 | I8-94171 204-0 | FUSIBLE LINK | 2 | 9009-9601 | ABCD | |||
| 91 | I3-40004 127-0 | HARNESS; INST | 1 | 9712- | CD | ROYAL;SPORTY | ||
| 11 | I8-94385 367-1 | HARNESS; BODY | 1 | 9009-9408 | ABCD | DELETION | ||
| 11 | I3-40004 192-0 | HARNESS; BODY | 1 | 9412- | CD | GRAND ROYAL;HI GRADE | ||
| 38 | I8-97139 501-1 | HARNESS; CHASSIS | 1 | 9602- | C | DELETION | ||
| 38 | I8-94385 369-0 | HARNESS; CHASSIS | 1 | 9009-9205 | C | |||
| 11 | I7-42010 110-0 | HARNESS; BODY | 1 | 0612- | E | |||
| 1 | I8-94367 458-0 | HARNESS; CAB | 1 | 9009-9408 | ABCD | |||
| 231 | I8-94367 457-0 | HARNESS; TRANS | 1 | 9009-9408 | ABCD | |||
| 85 | I8-94367 462-0 | HARNESS; ROOM LAMP | 1 | 9009- | AB E | |||
| 231 | I8-97139 499-0 | HARNESS; TRANS | 1 | 9602- | ABCDE | |||
| 50 | I5-82516 004-0 | FUSE; BODY HARNESS | 2 | 9009- | ABCDE | 20A YELLOW | ||
| 91 | I3-40004 193-0 | HARNESS; INST | 1 | 9712- | CD | GRAND ROYAL;HI GRADE | ||
| 38 | I7-42000 101-A | HARNESS; CHASSIS | 1 | 9602- | B E | |||
| 85 | I8-94385 370-0 | HARNESS; ROOM LAMP | 1 | 9009- | CD | DELETION | ||
| 50 | I5-82516 002-0 | FUSE; BODY HARNESS | 9 | 9009- | ABCDE | 10A RED | ||
| 4 | I8-94323 889-0 | BOX ASM; FUSE, HARNESS | 1 | 9009- | ABCDE | |||
| 38 | I8-97139 502-1 | HARNESS; CHASSIS | 1 | 9602- | D | DELETION | ||
| 91 | I7-42040 142-A | HARNESS; INST | 1 | 9602- | ABCDE | |||
| 11 | I3-40004 157-0 | HARNESS; BODY | 1 | 9712- | CD | ROYAL;SPORTY;HI SPORTY | ||
| 38 | I8-94385 368-0 | HARNESS; CHASSIS | 1 | 9009-9205 | D |
