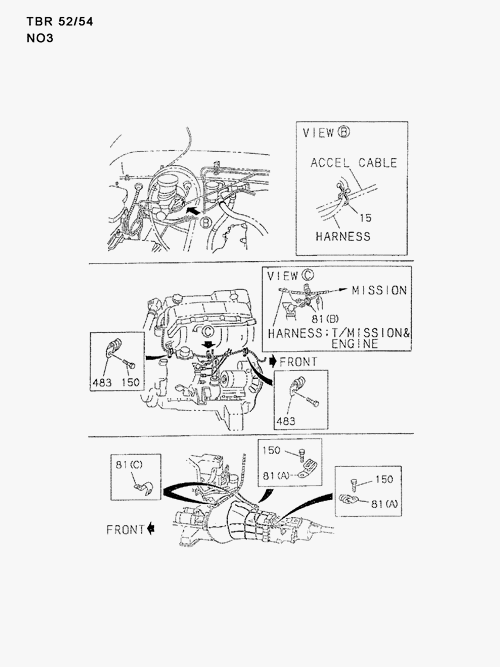

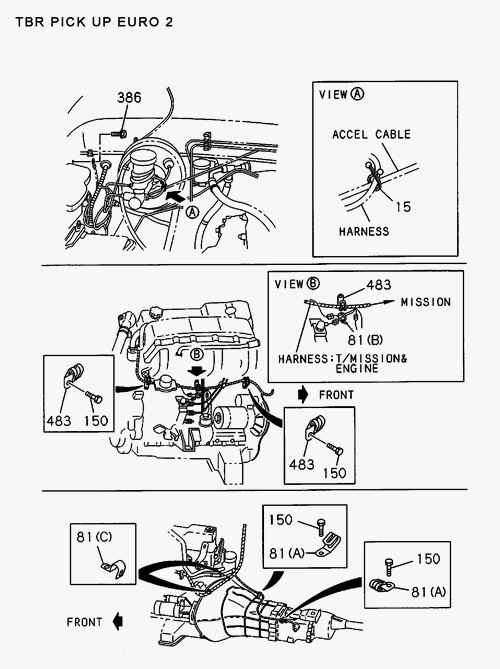

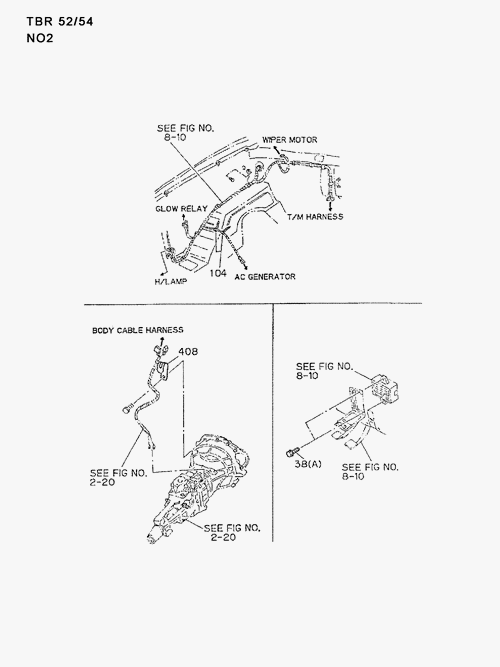

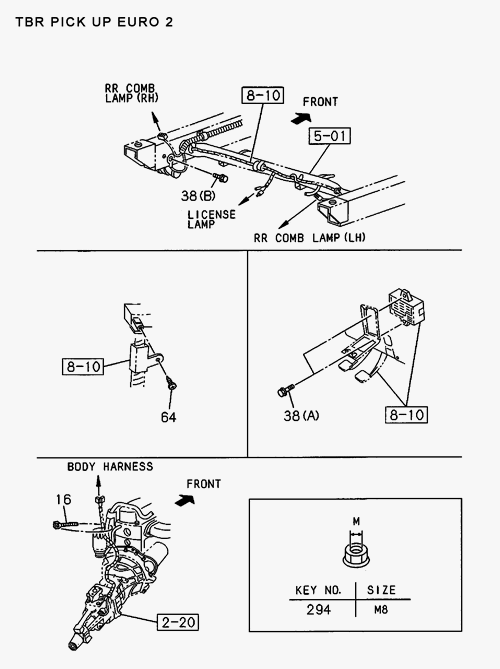

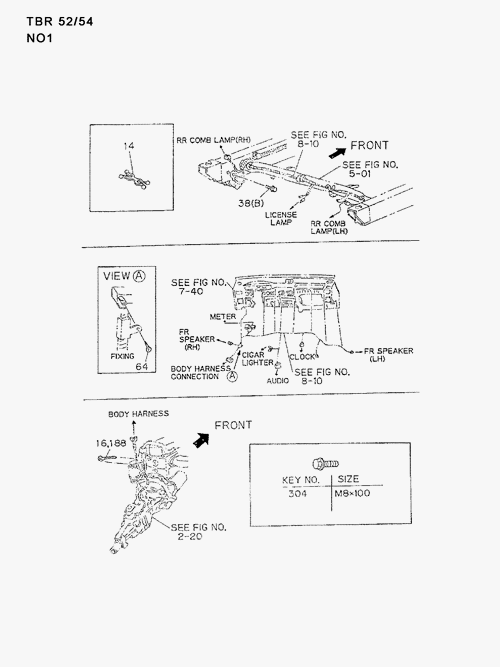

8-15 | FIXING PARTS; WIRING HARNESS
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 38 | I8-94242 120-0 | BOLT; CLIP, HARNESS | 2 | 9009- | ABCDE | M5X16 | ||
| 150 | I0-28080 812-0 | BOLT; CLIP | 3 | 9602- | ABCDE | M8X12 FLANGE | ||
| 81 | I5-09707 031-1 | CLIP; HARNESS | 1 | 9602- | ABCDE | (B) L=140 | ||
| 304 | I0-50140 800-0 | BOLT; ENG HARNESS CLIP | 2 | 9009-9601 | ABCD | M8X100 W/LK&PL WASHER | ||
| 81 | I5-09709 095-0 | CLIP; HARNESS | 2 | 9602- | ABCDE | (A) ID=8. 5 | ||
| 188 | I5-09707 031-1 | CLIP; CHASSIS HARNESS TO BODY | 1 | 9009-9601 | ABCD | L=140 | ||
| 38 | I5-09009 032-0 | BOLT; CLIP, HARNESS | 1 | 9009- | ABCDE | (B) M6X16 | ||
| 81 | I8-97022 767-0 | CLIP; HARNESS | 2 | 9602- | ABCDE | (C) | ||
| 304 | I0-50640 800-0 | BOLT; ENG HARNESS CLIP | 2 | 9009- | ABCD | M8X100 W/LK&PL WASHER | ||
| 386 | I8-97206 407-0 | BOLT; GRAND HARNES | 4 | 0612- | E | M6X14 W/WASHER | ||
| 294 | I0-91180 208-0 | NUT | 1 | 0612- | E | M8 | ||
| 104 | I8-94232 619-0 | CLIP; HEADLAMP HARNESS | 2 | 9009-9601 | ABCD | L=142 | ||
| 408 | I8-94327 574-0 | CLIP; TRANS HARNESS | 1 | 9009-9601 | ABCD | |||
| 64 | I9-09829 323-1 | SCREW; CLIP | 1 | 9009- | ABCDE | DELETION M5X16 | ||
| 38 | I8-94323 227-0 | BOLT; CLIP, HARNESS | 2 | 9009- | ABCDE | M5X16 | ||
| 64 | I8-97221 091-0 | SCREW; CLIP | 1 | 9009- | ABCDE | DELETION M5X16 | ||
| 483 | I5-09709 095-0 | CLIP; ENG HARNESS | 4 | 9602- | ABCDE | ID=8. 5 | ||
| 15 | I1-09709 082-0 | CLIP; PURSE LOCK | 1 | 9602- | ABCDE | ID=8. 3 | ||
| 16 | I5-09707 031-1 | CLIP; HARNESS | 2 | 9009-9601 | ABCDE | L=140 | ||
| 150 | I8-97378 075-0 | BOLT; CLIP | 3 | 9602- | ABCDE | M8X12 FLANGE | ||
| 14 | I5-09709 021-0 | CLIP; BAND. HARNESS | 1 | 9009-9601 | ABCD | DELETION |
