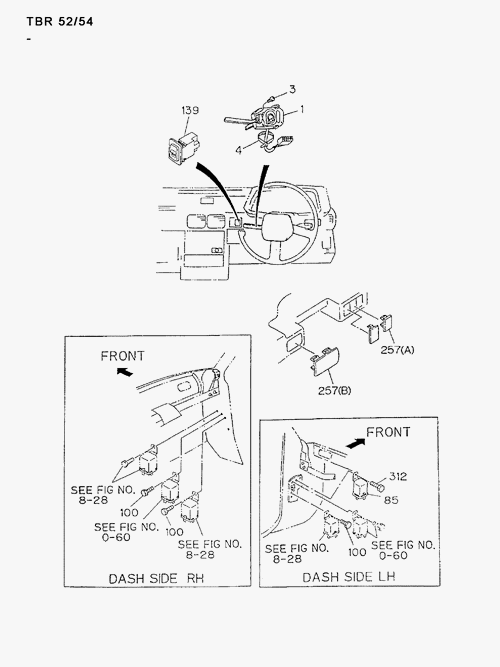

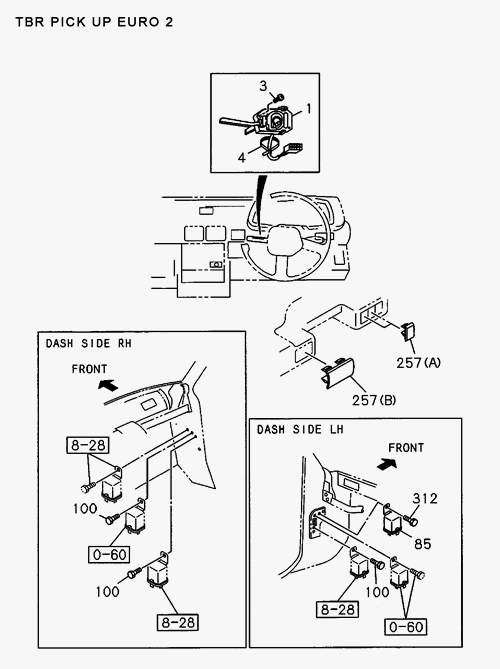

8-25 | SWITCH AND RELAY; INSTRUMENT PANEL
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 85 | I8-94112 912-0 | RELAY; HEADLAMP | 1 | 9009- | ABCDE | |||
| 4 | I5-09707 030-1 | CLIP; COMB SW | 2 | 9009- | ABCDE | L=250 | ||
| 100 | I0-28410 616-0 | SCREW; RELAY, FOG LAMP, RR | 3 | 9009-9204 | ABCDE | M5X16 | ||
| 257 | I8-94333 787-0 | COVER; HOLE SW | 1 | 9602- | ABCDE | INTERIOR COLOR BLACK(101) (B) BLACK | ||
| 1 | I8-97013 576-1 | SWITCH; COMB | 1 | 9009- | ABCD | EXC. INTERMITTENT WIPER<C13> | ||
| 100 | I0-28480 616-0 | SCREW; RELAY, FOG LAMP, RR | 3 | 9205- | ABCDE | M6X16 FLANGE | ||
| 312 | I0-28480 616-0 | BOLT; RELAY | 1 | 9205- | ABCDE | M6X16 FLANGE | ||
| 139 | I8-94450 651-1 | SWITCH; RR DEFOGGER | 1 | 9307- | CD | INDONESIAN EQUIPMENT<S4S> | ||
| 1 | I6-97013 575-1 | SWITCH; COMB | 1 | 9009- | ABCDE | (IADG) INTERMITTENT WIPER<CI3> | ||
| 3 | I0-36220 514-0 | SCREW; COMB SW | 2 | 9009- | ABCDE | M5X14 W/LK WASHER | ||
| 257 | I8-94417 418-2 | COVER; HOLE SW | 2 | 9009-9306 | ABCDE | (A) BLACK | ||
| 1 | I8-97013 575-1 | SWITCH; COMB | 1 | 9009- | ABCDE | INTERMITTENT WIPER<CI3> | ||
| 4 | I5-09707 030-0 | CLIP; COMB SW | 2 | 9009- | ABCDE | L=250 | ||
| 257 | I8-94477 561-0 | COVER; HOLE SW | 1 | 9009-9408 | ABCD | |||
| 3 | I9-03910 514-0 | SCREW; COMB SW | 2 | 9009- | ABCDE | M5X14 W/LK WASHER |
