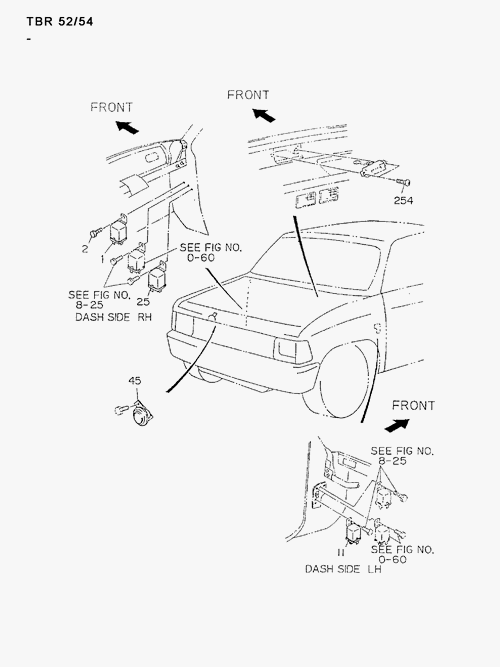

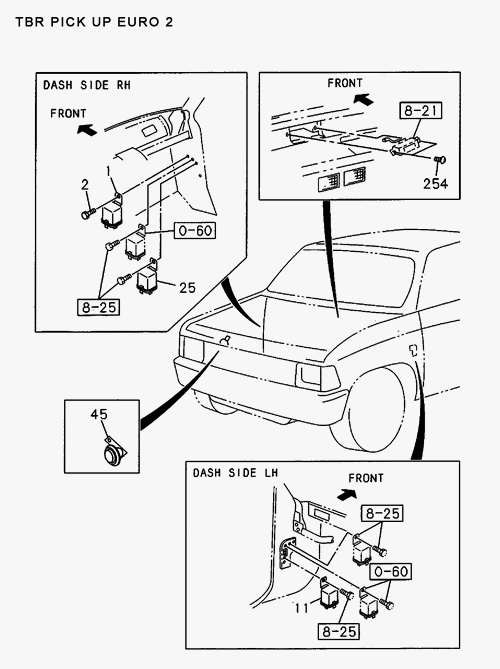

8-28 | CHASSIS ELECTRICAL
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97379 556-0 | UNIT; FLASHER | 1 | 9009-9102 | ABCDE | DENSO | ||
| 11 | I5-82550 029-0 | RELAY; DIMMER | 1 | 9009- | ABCDE | |||
| 254 | I9-09829 322-1 | SCREW; BRACKET | 2 | 9009- | ABCDE | DIGITAL CLOCK<UE8> M5X14 | ||
| 1 | I8-97039 287-0 | UNIT; FLASHER | 1 | 9104-9404 | ABCD | NILES | ||
| 25 | I8-94112 912-0 | RELAY; TAIL LAMP | 1 | 9009- | ABCDE | |||
| 45 | I7-43600 100-A | HORN; LOW NOTE | 1 | 9009- | ABCDE | |||
| 45 | I8-94406 965-1 | HORN; LOW NOTE | 1 | 9009- | ABCDE | |||
| 1 | I8-97038 316-0 | UNIT; FLASHER | 1 | 9009-9102 | ABCD | DENSO | ||
| 1 | I8-97105 455-0 | UNIT; FLASHER | 1 | 9405- | ABCDE | NILES | ||
| 2 | I0-28280 616-0 | BOLT; FLASHER UNIT | 1 | 9205- | ABCDE | M6X16 FLANGE |
