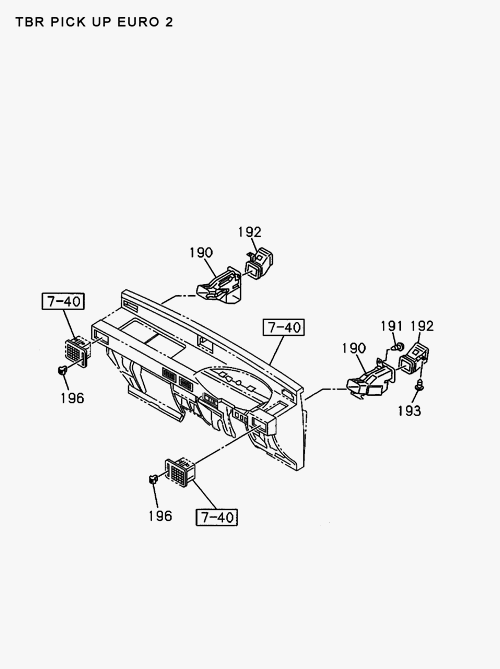

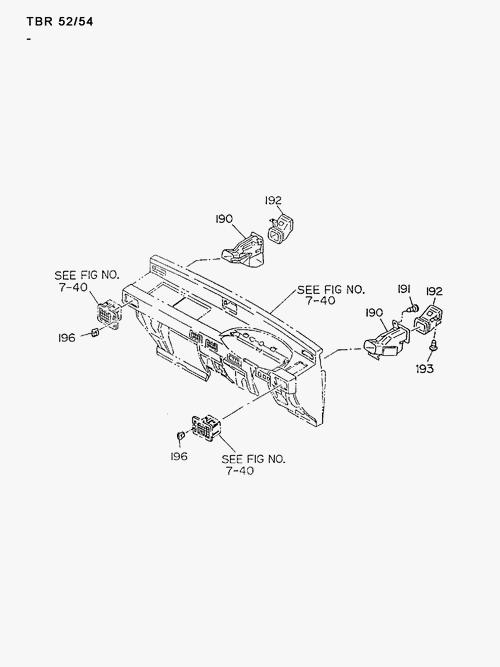

8-40 | HEATER SYSTEM
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 191 | I8-97221 091-0 | SCREW; VENT BOX | 6 | 9009- | ABCDE | M5X16 | ||
| 193 | I9-09829 323-1 | SCREW; RAM AIR DUCT | 2 | 9009- | ABCDE | M5X16 | ||
| 190 | I8-94435 186-0 | BOX; VENT, RAM AIR | 1 | 9009- | ABCDE | |||
| 191 | I9-09829 323-1 | SCREW; VENT BOX | 6 | 9009- | ABCDE | M5X16 | ||
| 196 | I8-94477 099-0 | KNOB; VENT BOX | 2 | 9009-9408 | ABCD | GRAY | ||
| 196 | I8-94442 975-0 | KNOB; VENT BOX | 2 | 9602- | ABCDE | INTERIOR COLOR BLACK(101) BLACK | ||
| 193 | I8-97221 091-0 | SCREW; RAM AIR DUCT | 2 | 9009- | ABCDE | M5X16 | ||
| 192 | I8-94371 985-0 | DUCT; RAM AIR | 1 | 9009- | ABCDE | |||
| 190 | I8-94435 185-0 | BOX; VENT, RAM AIR | 1 | 9009- | ABCDE | |||
| 192 | I8-94371 984-0 | DUCT; RAM AIR | 1 | 9009- | ABCDE |
