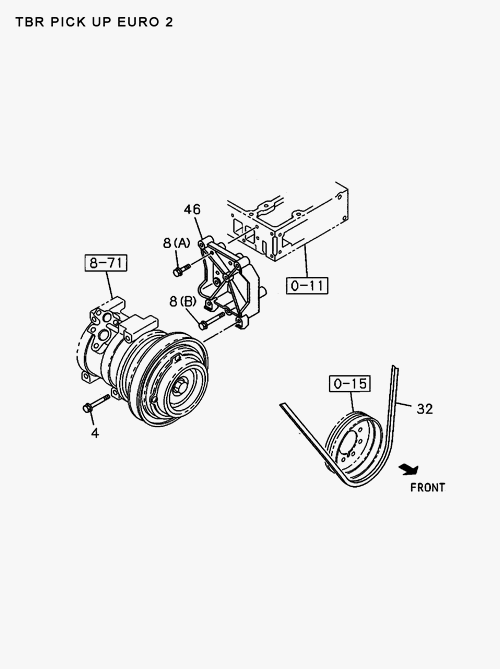

8-50 | AIR CONDITIONING SYSTEM; FRONT
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 46 | I8-97562 620-0 | BRACKET; CMPR | 1 | 0612- | E | |||
| 8 | I0-28051 080-0 | BOLT; BRKT | 2 | 0612- | E | |||
| 276 | I8-94315 427-0 | CLIP; FLEX HOSE | 1 | 9602- | ABCD | AIR CON PREPARATORY PACK(S6D) (B) ID=23. 6 | ||
| 32 | I8-97562 629-A | BELT; A/C CMPR | 1 | 0612- | E | |||
| 276 | I8-94315 425-0 | CLIP; FLEX HOSE | 2 | 9602- | ABCD | AIR CON PREPARATORY PACK(S6D) ID=23/7. 3X2 | ||
| 150 | I0-04740 300-0 | HOSE; VAC, FAST IDLE, A/C | 1 | 9602- | ABCD | AIR CON PREPARATORY PACK(S6D) L=580 SERVICED BY L=3000 | ||
| 4 | I0-28050 870-0 | BOLT; A/C CMPR BRKT | 4 | 0612- | E | |||
| 8 | I0-28050 870-0 | BOLT; BRKT | 2 | 0612- | E |
