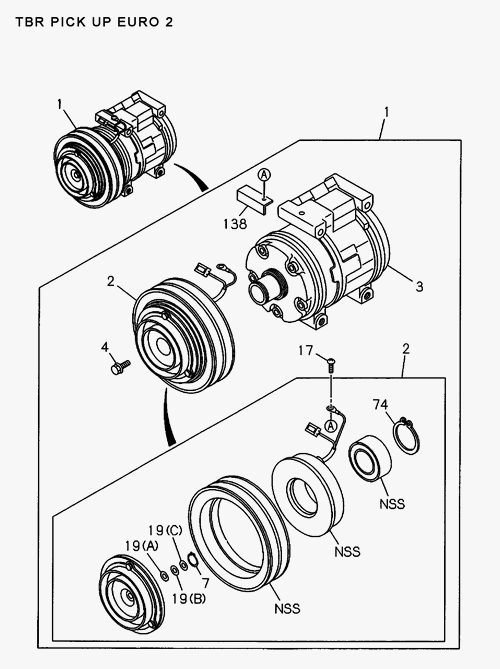

8-71 | COMPRESSOR; AIR CONDITIONING
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97562 627-0 | COMPRESSOR ASM; A/C | 1 | 0612- | E | |||
| 74 | I1-83579 889-0 | RING; SNAP, MAGNET CLU | 1 | 0612- | E | |||
| 4 | I8-97126 316-0 | BOLT; MAGNET CLU | 1 | 0612- | E | |||
| 19 | I1-83579 891-0 | WASHER; LK, PULLEY, MAGNET CLU | 1 | 0612- | E | |||
| 17 | I5-81129 130-0 | SCREW; WIRE CLIP MAGNET CLU | 1 | 0612- | E | |||
| 2 | I8-97254 499-A | CLUTCH; MAGNET, A/C | 1 | 0612- | E | |||
| 7 | I1-83579 932-0 | RING; SNAP, PULLEY | 1 | 0612- | E | |||
| 19 | I1-83579 890-0 | WASHER; LK, PULLEY, MAGNET CLU | 1 | 0612- | E | |||
| 138 | I8-97254 501-0 | BRACKET; COMPRESSOR | 1 | 0612- | E | |||
| 3 | I8-98016 874-0 | COMPRESSOR ASM; A/C | 1 | 0612- | E | |||
| 19 | I1-83579 892-0 | WASHER; LK, PULLEY, MAGNET CLU | 1 | 0612- | E |
