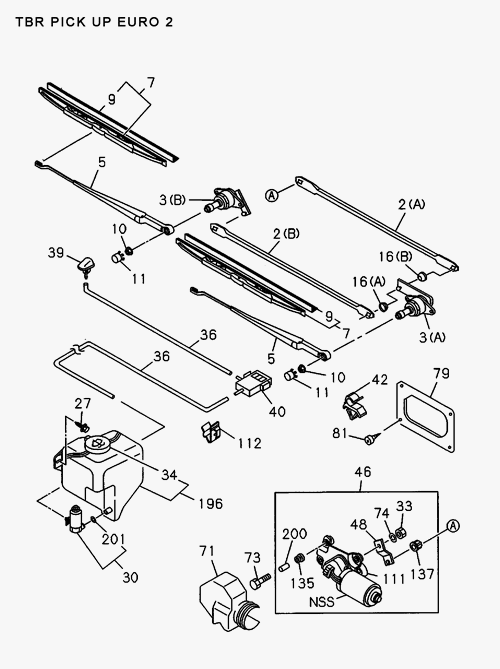

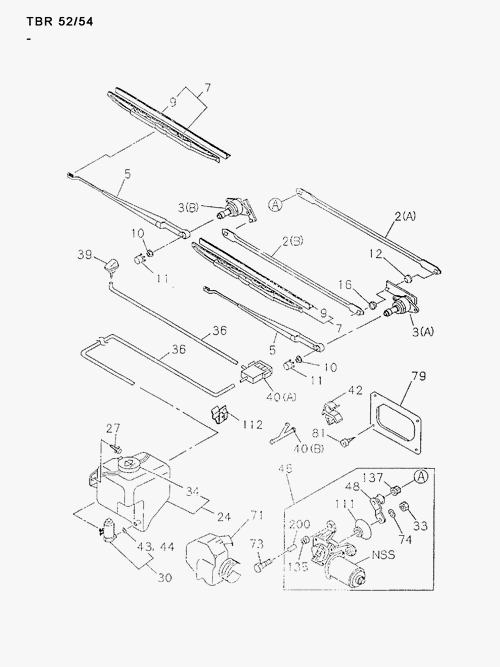

8-80 | WINDSHIELD WIPER AND WASHER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 44 | I8-94153 404-0 | GASKET; MOTOR TO TANK | 1 | 9009-9205 | ABCD | DELETION | ||
| 135 | I8-94148 134-0 | RUBBER; CUSHION, WIPER MOTOR | 4 | 9009- | ABCDE | |||
| 39 | I8-94139 450-2 | NOZZLE; WINDSHIELD WASHER | 1 | 9009- | ABCDE | |||
| 3 | I8-97036 733-0 | PIVOT ASM; FRT WIPER | 1 | 9009- | ABCDE | (A) | ||
| 5 | I8-94368 226-0 | ARM; WIPER | 2 | 9009-9510 | ABCD | |||
| 7 | I6-94368 227-0 | BLADE; WIPER | 2 | 9009-9509 | ABCD | (IADG) | ||
| 111 | I8-94139 442-2 | SEAL; FRT WIPER MOTOR TO BRKT | 1 | 9009- | ABCDE | |||
| 48 | I8-97034 390-0 | ARM; WIPER MOTOR | 1 | 9009- | ABCDE | |||
| 40 | I8-94335 627-0 | JOINT; WASHER HOSE | 1 | 9009- | ABCDE | (A) | ||
| 73 | I8-94148 420-0 | BOLT; BRKT FIX | 4 | 9009- | ABCDE | M6X28 W/PL WASHER | ||
| 33 | I9-09111 508-A | NUT; MOTOR TO ARM | 1 | 9009- | ABCDE | M8 | ||
| 7 | I8-94368 227-0 | BLADE; WIPER | 2 | 9009-9509 | ABCD | |||
| 24 | I8-94433 293-0 | TANK ASM; WASHER | 1 | 9206- | ABCD | |||
| 79 | I8-97021 719-0 | COVER; CHECK HOLE, WIPER MOTOR & LINK | 2 | 9009- | ABCDE | |||
| 9 | I8-97034 166-0 | RUBBER; FRT WIPER BLADE | 2 | 9009- | ABCDE | |||
| 7 | I8-97136 361-0 | BLADE; WIPER | 2 | 9510- | ABCDE | |||
| 2 | I8-97036 734-0 | LINK; FRT WIPER | 1 | 9009- | ABCDE | (B) | ||
| 16 | I1-83318 116-0 | SEAL; BALL JOINT | 1 | 9009- | ABCDE | |||
| 10 | I9-09111 508-A | NUT; WIPER ARM TO WIPER PIVOT | 2 | 9009-9510 | ABCD | M8 | ||
| 11 | I8-94109 120-0 | COVER; WIPER ARM | 2 | 9009-9510 | ABCD | |||
| 7 | I7-39610 140-A | BLADE; WIPER | 2 | 9510- | ABCDE | |||
| 74 | I0-91510 508-0 | WASHER; ARM TO MOTOR | 1 | 9009- | ABCDE | M8 | ||
| 201 | I8-94352 050-0 | LINING; WIPER MOTOR | 1 | 0612- | E | |||
| 10 | I9-09111 408-0 | NUT; WIPER ARM TO WIPER PIVOT | 2 | 9009-9510 | ABCD | M8 | ||
| 10 | I9-09844 190-0 | NUT; WIPER ARM TO WIPER PIVOT | 2 | 9511- | ABCDE | M8 FLANGE | ||
| 112 | I8-94218 056-0 | CLIP; HARNESS, WIPER MOTOR | 2 | 9009- | ABCDE | |||
| 71 | I8-94153 152-1 | COVER; WIPER MOTOR | 1 | 9210- | ABCDE | |||
| 10 | I8-98053 188-0 | NUT; WIPER ARM TO WIPER PIVOT | 2 | 9511- | ABCDE | M8 FLANGE | ||
| 40 | I5-83363 003-0 | JOINT; WASHER HOSE | 1 | 9009- | ABCD | (B) 3WAY | ||
| 11 | I8-94460 965-0 | COVER; WIPER ARM | 2 | 9511- | ABCDE | |||
| 5 | I7-39610 110-A | ARM; WIPER | 2 | 9511- | ABCDE | |||
| 27 | I8-94239 622-0 | BOLT; WASHER TANK | 2 | 9009- | ABCDE | M6X18 | ||
| 30 | I8-94335 625-1 | MOTOR ASM; FRT WASHER TANK | 1 | 9009- | ABCDE | |||
| 34 | I8-94436 369-0 | CAP; WASHER TANK | 1 | 9009- | ABCDE | |||
| 137 | I1-83318 116-0 | SEAL; JOINT WIPER MOTOR | 1 | 9307- | ABCDE | |||
| 5 | I8-97137 351-0 | ARM; WIPER | 2 | 9511- | ABCDE | |||
| 36 | I9-09914 906-0 | HOSE; WASHER | 1 | 9009- | ABCDE | L=650X2 SERVICED BY L=10000 | ||
| 200 | I8-94148 135-0 | COLLAR; WIPER MOTOR | 4 | 9009- | ABCDE | |||
| 46 | I8-94368 230-1 | MOTOR ASM; FRT WINDSHIELD WIPER | 1 | 9009- | ABCDE | |||
| 42 | I8-94206 730-0 | CLIP; WASHER HOSE | 3 | 9009- | ABCDE | ID=6. 5 | ||
| 74 | I9-09150 508-0 | WASHER; ARM TO MOTOR | 1 | 9009- | ABCDE | M8 | ||
| 12 | I8-97025 889-0 | RETAINER; BALL JOINT, FRT WIPER LINK | 2 | 9009- | ABCD | |||
| 2 | I8-97027 516-0 | LINK; FRT WIPER | 1 | 9009- | ABCDE | (A) | ||
| 81 | I9-07076 510-0 | SCREW; CHECK HOLE COVER, WIPER MOTOR | 8 | 9009- | ABCDE | M5X10 | ||
| 43 | I8-94352 050-0 | RUBBER; GASKET, TANK | 1 | 9200- | ABCD | |||
| 3 | I8-97036 735-0 | PIVOT ASM; FRT WIPER | 1 | 9009- | ABCDE | (B) | ||
| 33 | I9-09111 408-0 | NUT; MOTOR TO ARM | 1 | 9009- | ABCDE | M8 | ||
| 81 | I0-71240 510-0 | SCREW; CHECK HOLE COVER, WIPER MOTOR | 8 | 9009- | ABCDE | M5X10 |
