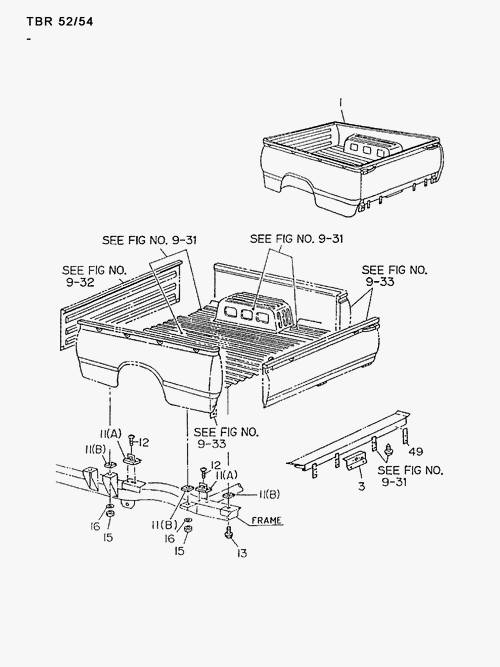

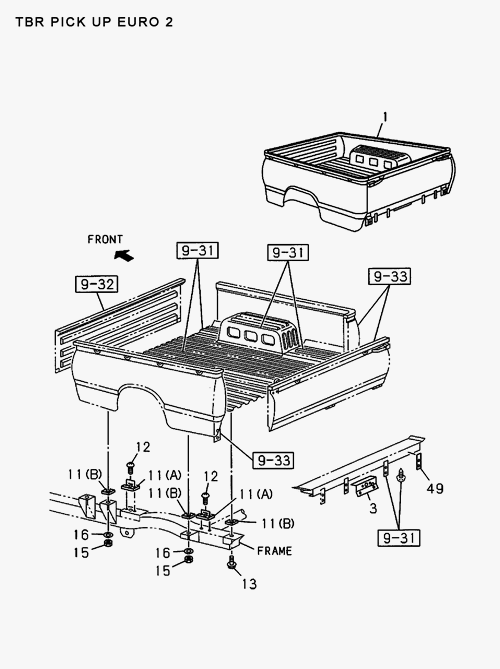

9-30 | REAR BODY ASM AND MOUNTING
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-94367 501-B | BODY ASM; REAR | 1 | 9009- | AB E | 3 WAY FLAT DECK | ||
| 1 | I8-94367 501-A | BODY ASM; REAR | 1 | 9009- | AB E | 1 WAY FLAT DECK | ||
| 16 | I0-91614 712-0 | WASHER; FRAME END, RR BODY | 6 | 9009- | AB E | ID=12 | ||
| 11 | I8-94331 737-A | GASKET; RR BODY MTG | 6 | 9009- | AB E | (B) | ||
| 13 | I8-97169 423-0 | BOLT; RR BODY MTG | 2 | 9009- | AB E | |||
| 3 | I8-94367 177-2 | BRACKET; LICENSE PLATE LAMP | 1 | 9309- | AB E | |||
| 16 | I9-09164 712-0 | WASHER; FRAME END, RR BODY | 6 | 9009- | AB E | ID=12 . | ||
| 49 | I8-94367 173-0 | BRACKET; RR COMB LAMP | 4 | 9009- | AB E | |||
| 11 | I8-94331 738-A | GASKET; RR BODY MTG | 8 | 9009- | AB E | (A) | ||
| 15 | I8-97028 764-0 | NUT; RR BODY MTG | 6 | 9110- | AB E | M12 | ||
| 12 | I9-07077 616-0 | SCREW; RR BODY MTG GASKET | 12 | 9009- | AB E | M6X16 | ||
| 1 | I8-94367 143-0 | BODY ASM; REAR | 1 | 9009- | B E | STANDARD 1 WAY |
