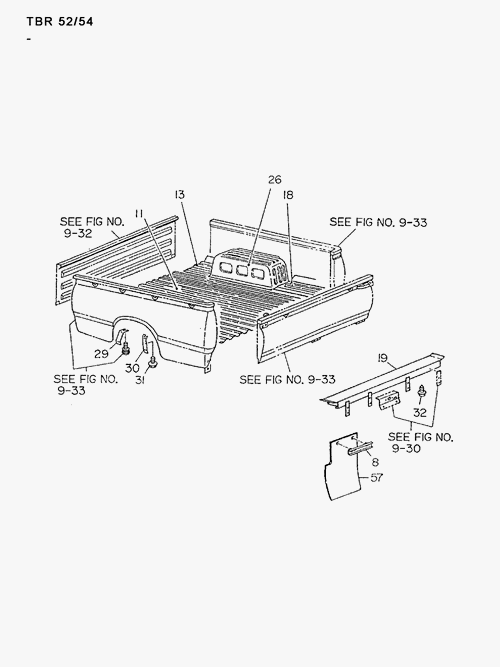

9-31 | REAR BODY; FLOOR AND FENDER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 32 | I8-97020 619-0 | SCREW; FLOOR BOLSTER, RR BODY | 12 | 9304- | AB E | M6X16 SCREW (+) | ||
| 30 | I8-94389 328-0 | STAY; SIDE PANEL TO FLOOR, RR BODY RR | 1 | 9009- | AB E | |||
| 29 | I8-94367 225-0 | STAY; SIDE PANEL TO FLOOR, RR BODY FRT | 2 | 9009- | AB E | |||
| 13 | I8-94388 901-0 | PANEL; FLOOR BOARD, FRT SIDE, RR BODY | 1 | 9009- | B E | |||
| 11 | I8-94367 148-0 | PANEL; FLOOR BOARD, RR BODY | 1 | 9009- | A | DELETION | ||
| 13 | I8-94388 899-0 | PANEL; FLOOR BOARD, FRT SIDE, RR BODY | 1 | 9009- | A | DELETION | ||
| 8 | I8-94366 921-0 | HOLDER; FLAP RUBBER | 2 | 9009- | AB E | |||
| 11 | I8-94367 149-0 | PANEL; FLOOR BOARD, RR BODY | 1 | 9009- | B E | |||
| 18 | I8-94388 896-0 | PANEL; FLOOR BOARD, RR SIDE | 1 | 9009- | AB E | |||
| 57 | I8-94366 920-L | RUBBER; FLAP RR | 1 | 9009- | AB E | |||
| 19 | I8-94367 165-1 | BOLSTER; RR END, RR BODY | 1 | 9009- | AB E | |||
| 57 | I8-94366 920-R | RUBBER; FLAP RR | 1 | 9009- | AB E | |||
| 13 | I8-94388 902-0 | PANEL; FLOOR BOARD, FRT SIDE, RR BODY | 1 | 9009- | B E | |||
| 13 | I8-94388 900-0 | PANEL; FLOOR BOARD, FRT SIDE, RR BODY | 1 | 9009- | A | DELETION | ||
| 26 | I8-94367 217-1 | PANEL; WHEEL HOUSE, RR BODY | 2 | 9009- | AB E | |||
| 18 | I8-94388 897-0 | PANEL; FLOOR BOARD, RR SIDE | 1 | 9009- | AB E | |||
| 30 | I8-94389 329-0 | STAY; SIDE PANEL TO FLOOR, RR BODY RR | 1 | 9009- | AB E | |||
| 31 | I8-94204 636-0 | BOLT; SIDE PANEL STAY, RR BODY | 4 | 9009- | AB E | M6X14 W/PL WASHER |
