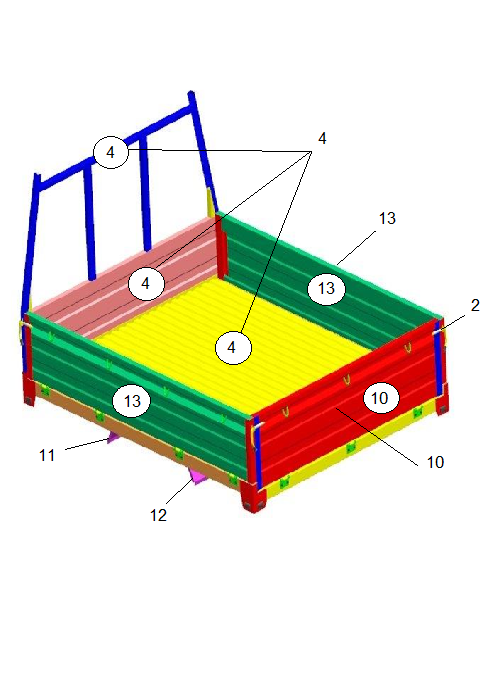

9-34 | REAR BODY; GATE AND SIDE GUARD 3 WAY
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 4 | I7-17016 121-A | FLOOR PANEL;ASM TBR54 PICKUP | 1 | 1601- | AB E | |||
| 7 | I7-04508 025-A | HEX BOLT SIDE PANEL (M8) TBR54 PICKUP | 22 | 1601- | AB E | M8 | ||
| 6 | I7-05112 012-A | HEX NUT CARGO MOUNTING (M12) TBR54 PICKU | 8 | 1601- | AB E | M12 | ||
| 1 | I7-17016 126-A | BRACKET STAY PANEL M/GUARD TBR54 PICKUP | 4 | 1601- | AB E | |||
| 16 | I7-01008 017-A | WASHER PLAIN 8X17,5X1,6 MC3 TBR54 PICKUP | 22 | 1601- | AB E | 8X17,5X1,6 | ||
| 15 | I7-17802 135-A | STOPPER RUBBER;ASM TBR54 PICKUP | 6 | 1601- | AB E | |||
| 8 | I7-05108 010-A | NUT;FLANGE M8 TBR54 PICKUP | 22 | 1601- | AB E | M8 | ||
| 11 | I7-17016 124-A | PANEL MUD GUARD; RR FWD TBR54 PICKUP | 2 | 1601- | AB E | |||
| 14 | I7-22001 145-A | RUBBER MOUNTING CARGO TBR54 PICKUP | 8 | 1601- | AB E | |||
| 17 | I7-01006 020-A | WASHER PLAIN MUD GUARD(M6) TBR54 PICKUP | 16 | 1601- | AB E | M6 | ||
| 12 | I7-17017 125-A | PANEL MUD GUARD; RR RWD LH TBR54 PICKUP | 1 | 1601- | AB E | |||
| 3 | I7-56205 197-A | FILLER CAP ASM TBR54 PICKUP | 1 | 1601- | AB E | |||
| 13 | I7-17016 122-A | PANEL SIDE ASM;RH TBR54 PICKUP | 1 | 1601- | AB E | |||
| 12 | I7-17016 125-A | PANEL MUD GUARD; RR RWD RH TBR54 PICKUP | 1 | 1601- | AB E | |||
| 2 | I7-17802 136-A | DOOR LOCK;ASM TBR54 PICKUP | 4 | 1601- | AB E | |||
| 5 | I7-04512 040-A | HEX BOLT CARGO MOUNTING (M12) TBR54 PICK | 8 | 1601- | AB E | M12 | ||
| 13 | I7-17017 122-A | PANEL SIDE ASM;LH TBR54 PICKUP | 1 | 1601- | AB E | |||
| 9 | I7-05106 010-A | HEX NUT MUD GUARD (M6) TBR54 PICKUP | 16 | 1601- | AB E | M6 | ||
| 10 | I7-17016 123-A | PANEL GATE ASM TBR54 PICKUP | 1 | 1601- | AB E |
