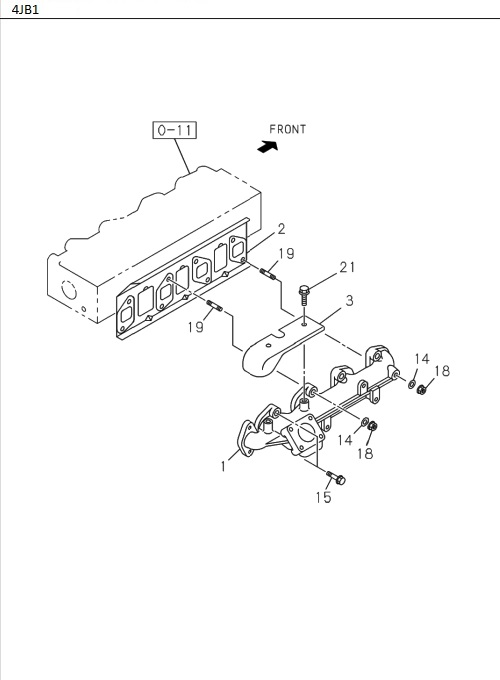

| 2 |
I8-97146 499-2 |
|
GASKET, EXH MANIF TO HD |
1 |
1807- |
|
4HL1-TC |
|
| 3 |
I8-97214 580-0 |
|
PROTECTOR, HEAT, EXH MANIF |
1 |
1512- |
|
4JB1-TC |
|
| 14 |
I8-97257 914-0 |
|
WASHER; PL, EXH MANIF |
2 |
1512- |
|
4JB1-TC |
ID=8.5 OD=15 T=4 |
| 15 |
I8-97061 543-0 |
|
BOLT; EXH MANIF |
6 |
1807- |
|
4HL1-TC |
M10X60 |
| 2 |
I8-97146 499-A |
|
GASKET, EXH MANIF TO HD |
1 |
1512- |
|
4HG1-T |
(IADG) |
| 2 |
I8-97350 317-2 |
|
GASKET, EXH MANIF TO HD |
1 |
1512- |
|
4JB1-TC |
|
| 217 |
I8-94340 670-0 |
|
GASKET, EXH MANIF TO PLATE |
1 |
1807- |
|
4HL1-TC |
ID=38 |
| 18 |
I0-91110 510-0 |
|
NUT, EXH MANIF |
2 |
1807- |
|
4HL1-TC |
M10 |
| 2 |
I8-97350 317-2 |
|
GASKET; EXH MANIF TO HD |
1 |
1512- |
|
4JB1-TC |
|
| 15 |
I8-97131 597-1 |
|
BOLT; EXH MANIF |
6 |
1512- |
|
4JB1-TC |
M8X35 |
| 21 |
I0-28050 812-A |
|
BOLT, HEAT PROTECTOR |
2 |
1512- |
|
4JB1-TC |
M8X12 |
| 18 |
I0-91110 510-0 |
|
NUT; EXH MANIF |
2 |
1807- |
|
4HL1-TC |
M10 |
| 19 |
I8-97378 065-0 |
|
STUD; MANIF TO CYL HD |
2 |
1512- |
|
4JB1-TC |
M8X35 L=46 |
| 2 |
I8-97146 499-2 |
|
GASKET; EXH MANIF TO HD |
1 |
1807- |
|
4HL1-TC |
|
| 19 |
I8-97378 065-0 |
|
STUD, MANIF TO CYL HD |
2 |
1512- |
|
4JB1-TC |
M8X35 L=46 |
| 15 |
I8-97061 543-0 |
|
BOLT, EXH MANIF |
6 |
1807- |
|
4HL1-TC |
M10X60 |
| 2 |
I8-97146 499-2 |
|
GASKET, EXH MANIF TO HD |
1 |
1512- |
|
4HG1-T |
|
| 2 |
I8-97146 499-A |
|
GASKET, EXH MANIF TO HD |
1 |
1807- |
|
4HL1-TC |
(IADG) |
| 215 |
I8-98170 965-0 |
|
PLATE, BOSS,EXH MANIF |
1 |
1807- |
|
4HL1-TC |
|
| 18 |
I0-91110 510-0 |
|
NUT; EXH MANIF |
2 |
1512- |
|
4HG1-T |
M10 |
| 15 |
I8-97061 543-0 |
|
BOLT; EXH MANIF |
6 |
1512- |
|
4HG1-T |
M10X60 |
| 14 |
I8-97257 914-0 |
|
WASHER, PL, EXH MANIF |
2 |
1512- |
|
4JB1-TC |
ID=8.5 OD=15 T=4 |
| 34 |
I8-97250 073-1 |
|
COLLAR, DIST,EXH MANIF |
8 |
1807- |
|
4HL1-TC |
L=28 |
| 165 |
I8-94105 162-1 |
|
STUD, EGR PIPE |
2 |
1807- |
|
4HL1-TC |
M8X45 L=57 |
| 1 |
I8-97217 908-0 |
|
MANIFOLD, EXHAUST |
1 |
1512- |
|
4JB1-TC |
|
| 18 |
I0-91180 208-0 |
|
NUT; EXH MANIF |
2 |
1512- |
|
4JB1-TC |
M8 |
| 165 |
I8-94105 162-1 |
|
STUD; EGR PIPE |
2 |
1807- |
|
4HL1-TC |
M8X45 L=57 |
| 217 |
I8-94340 670-0 |
|
GASKET; EXH MANIF TO PLATE |
1 |
1807- |
|
4HL1-TC |
ID=38 |
| 13 |
I1-09556 015-0 |
|
WASHER; LK, EXH MANIF |
2 |
1512- |
|
4HG1-T |
T=2.2 |
| 3 |
I8-97214 580-0 |
|
PROTECTOR; HEAT, EXH MANIF |
1 |
1512- |
|
4JB1-TC |
|
| 34 |
I8-97250 073-1 |
|
COLLAR; DIST,EXH MANIF |
8 |
1807- |
|
4HL1-TC |
L=28 |
| 215 |
I8-98170 965-0 |
|
PLATE; BOSS,EXH MANIF |
1 |
1807- |
|
4HL1-TC |
|
| 21 |
I0-28050 812-A |
|
BOLT; HEAT PROTECTOR |
2 |
1512- |
|
4JB1-TC |
M8X12 |
| 15 |
I8-97131 597-1 |
|
BOLT, EXH MANIF |
6 |
1512- |
|
4JB1-TC |
M8X35 |
| 2 |
I8-97146 499-A |
|
GASKET; EXH MANIF TO HD |
1 |
1807- |
|
4HL1-TC |
(IADG) |
| 1 |
I8-97217 908-0 |
|
MANIFOLD; EXHAUST |
1 |
1512- |
|
4JB1-TC |
|
| 2 |
I8-97146 499-2 |
|
GASKET; EXH MANIF TO HD |
1 |
1512- |
|
4HG1-T |
|
| 13 |
I1-09556 015-0 |
|
WASHER; LK,EXH MANIF |
2 |
1807- |
|
4HL1-TC |
T=2.2 |
| 2 |
I8-97146 499-A |
|
GASKET; EXH MANIF TO HD |
1 |
1512- |
|
4HG1-T |
(IADG) |
| 34 |
I8-97250 073-1 |
|
COLLAR; DIST, EXH MANIF |
8 |
1512- |
|
4HG1-T |
L=28 |
| 18 |
I0-91180 208-0 |
|
NUT, EXH MANIF |
2 |
1512- |
|
4JB1-TC |
M8 |
| 13 |
I1-09556 015-0 |
|
WASHER, LK,EXH MANIF |
2 |
1807- |
|
4HL1-TC |
T=2.2 |
